400SD001M16: DescriptionTAG Ring Backshell with Strain Relief; File Size59KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

400SD001M16 Overview

TAG Ring Backshell with Strain Relief

Preview

Download Datasheet

View All

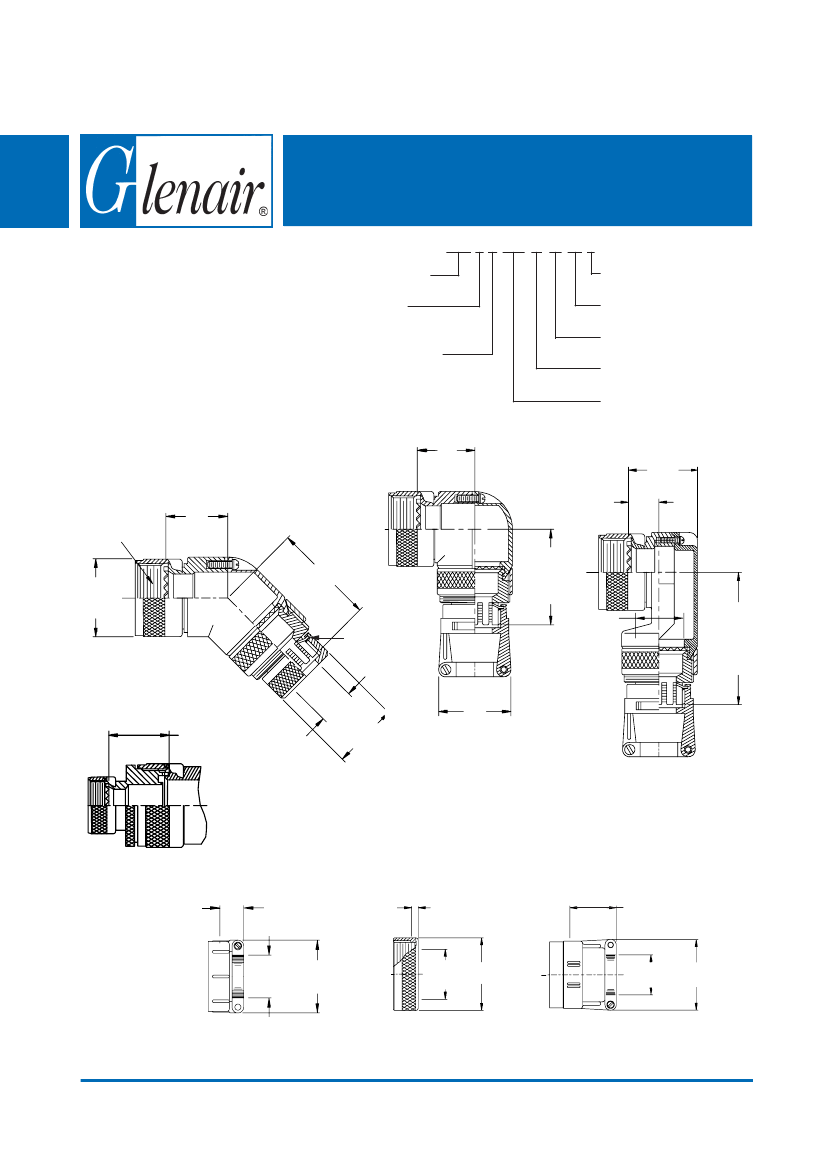

400-001

TAG

®

Ring Backshell

with Strain Relief

Rotatable Coupling - Split Shell

40

CONNECTOR

DESIGNATORS

400 F D 001 M 16 06 L

Product Series

Connector

Designator

Angle and Profile

C = Ultra-Low Split 90°

D = Split 90°

F = Split 45°

Strain Relief Style (F, G, L)

Cable Entry (Table IV, V)

Shell Size (Table I)

Finish (Table II)

Basic Part No.

A-F-H-L-S

ROTATABLE

COUPLING

F

(Table III)

H

(Table III)

A Thread

(Table I)

D

(Table III)

E (Table III)

C Typ.

(Table I)

Ground

Spring

G

(Table

III)

Max

Wire

Bundle

(Table III,

Note 1)

M

(Table V)

K

(Table III)

J

(Table

III)

Split 45°

Cable

Entry

.88 (22.4)

Max

L (Table IV)

Split 90°

Ultra Low-

Profile Split

90°

STYLE 2

(See Note 1)

STYLE F

Light Duty

(Table V)

.416 (10.5)

Approx.

Cable

Range

STYLE G

Light Duty

(Table IV)

.072 (1.8)

Approx.

STYLE L

Light Duty

(Table V)

.850 (21.6)

Approx.

M

Cable

Entry

L

Cable

Range

M

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 40 - Page 8
