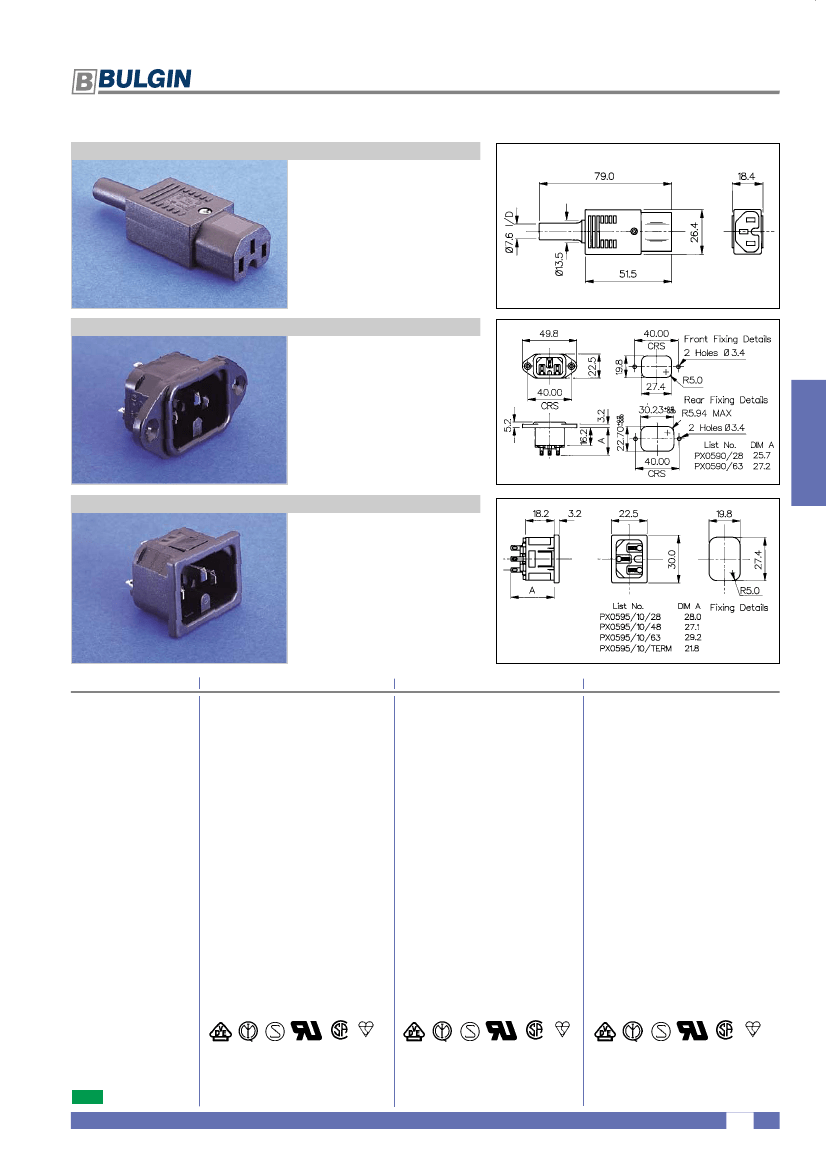

IEC CONNECTORS
EN60 320-1 Standard Sheet C15 Class I & Standard Sheet C16 Class I Hot Condition
STRAIGHT FEMALE CONNECTOR
Cable Mounting
Hot Condition
Mates with PX0590 and
PX0595
Screw Terminals
10A, 250V a.c.
PX0597
FLANGE MOUNT INLET
Hot Condition
2.8 or 6.3mm Tabs
IEC CONNECTORS
PX0595/Panel/Term/Col
Snap fit, /10 (1mm), /15 (1.5mm),
/20 (2mm), /30 (3mm)
/28 (2.8mm solder), /48 (4.8mm tab)
/63 (6.3mm tab), /TERM (screw)
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
<10mΩ
>10
3
MΩ
Pole-Pole 5kV. Poles-Panel 5.4kV
–40˚C to +70˚C
+120˚C
Nylon, Flammability Rating UL94V-0
PX0597
Compliant
69
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0590/28
SNAP FIT TO PANEL INLET
Hot Condition
Panel Sizes 1, 1.5, 2.0 or
3.0mm
2.8, 4.8, 6.3mm Tabs or
Screw Terminals
10A, 250V a.c.
(15A, 250V a.c. UL & CSA)
PX0595/10/28
Specification
Fixing (Panel):
Terminations:
Colours:
Max. Rating:
Contact Resistance:
Insulation Resistance:
A.C. Breakdown:
Operating Temp. Range:
Max. Pin Temp.:
Withdrawal Force:
Mouldings:
Contacts:
Approvals:
Accessories / Notes:
Mating Connectors:
PX0590, PX0595
Compliant
10N (Min.) 50N (Max.)
Screw Terminals
PX0597/Col
PX0590/Term/Col
Flange
/28 (2.8mm solder), /63 (6.3mm tab)
No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
<10mΩ
>10
3
MΩ
Pole-Pole 4.5kV. Poles-Accessible
Parts 4kV
–40˚C to +70˚C
No suffix (Black), /WH (White), /GY (Grey) No suffix (Black), /WH (White), /GY (Grey)
10A, 250V a.c.
(UL & CSA 15A, 250V a.c.)
<10mΩ
>10
3
MΩ
Pole-Pole 5kV. Poles-Panel 10kV
–40˚C to +70˚C
+120˚C
Nylon, Flammability Rating UL94V-0
Brass, Clean
Nylon, Flammability Rating UL94V-0
Brass, Pins Nickel Plated. Tabs, Tin Plated Brass, Pins Nickel Plated. Tabs, Tin Plated
P
.No. 11328, KT0006 (See pages 81 & 83) P
.No. 11328 (See page 83)
PX0597
Compliant
RoHS
