400FC002M08: DescriptionTAG Ring Backshell with Strain Relief; File Size53KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

400FC002M08 Overview

TAG Ring Backshell with Strain Relief

Preview

Download Datasheet

View All

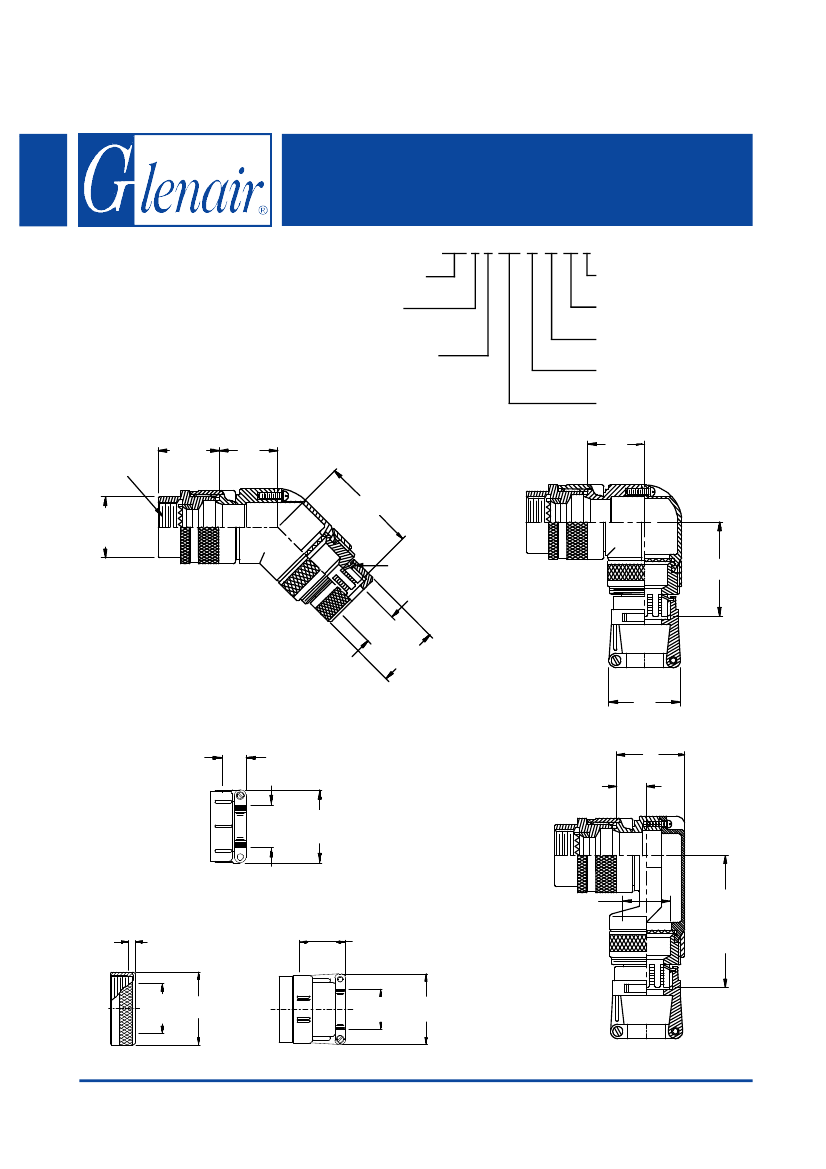

400-002

TAG

Ring Backshell

with Strain Relief

Direct Coupling - Split-Shell

400 F D 002 M 16 06 L

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 3

CONNECTOR

DESIGNATORS

Product Series

Connector

Designator

Angle and Profile

C = Ultra-Low Split 90

D = Split 90

F = Split 45

Strain Relief Style (F, G, L)

Cable Entry (Table V, VI)

Shell Size (Table I)

Finish (Table II)

Basic Part No.

(Table IV)

DIRECT COUPLING

A Thread

(Table I)

J Typ.

(Table III) (Table IV)

B Typ.

(Table I)

E (Table IV)

Split 45°

Ground

Spring

Cable

Entry

G (Table IV)

Split 90°

M (Table V)

STYLE F

Light Duty

(Table VI)

.416 (10.5)

Max

Cable

Range

(Table VI)

(Table IV)

H (Table IV)

STYLE G

Light Duty

(Table V)

.072 (1.8)

Approx.

Cable

Entry

STYLE L

Light Duty

(Table VI)

.850 (21.6)

Approx.

Max Wire

Bundle

(Table IV,

Note 2)

(Table

IV)

Cable

Range

Ultra Low-

Profile Split

90°

Printed in U.S.A.

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 40 - Page 14
