8255A-5/BQA datasheet, PDF - EEWORLD Datasheet

8255A-5/BQA: Description24 I/O, PIA-GENERAL PURPOSE, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size267KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

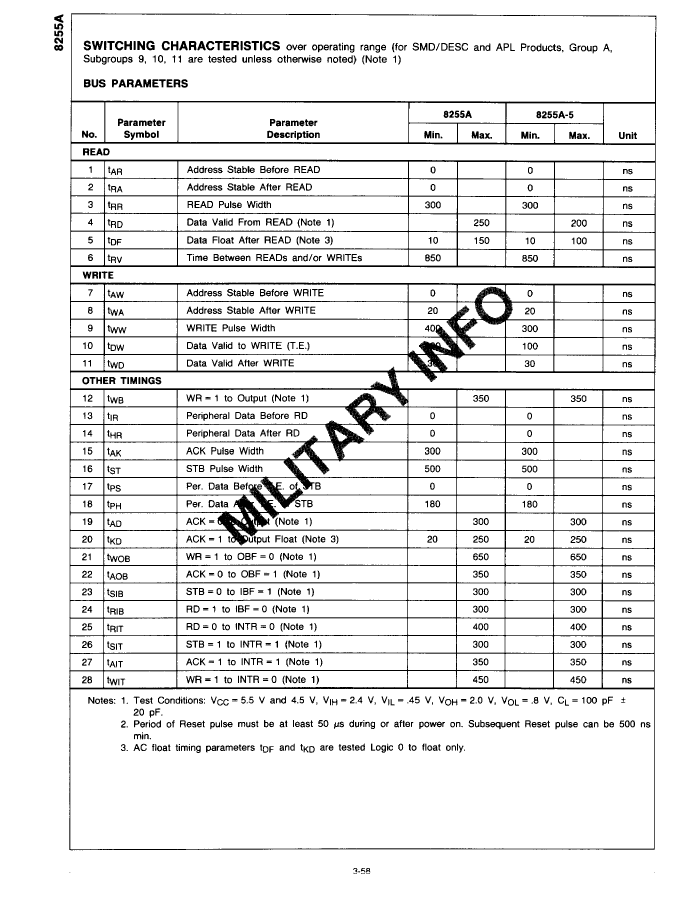

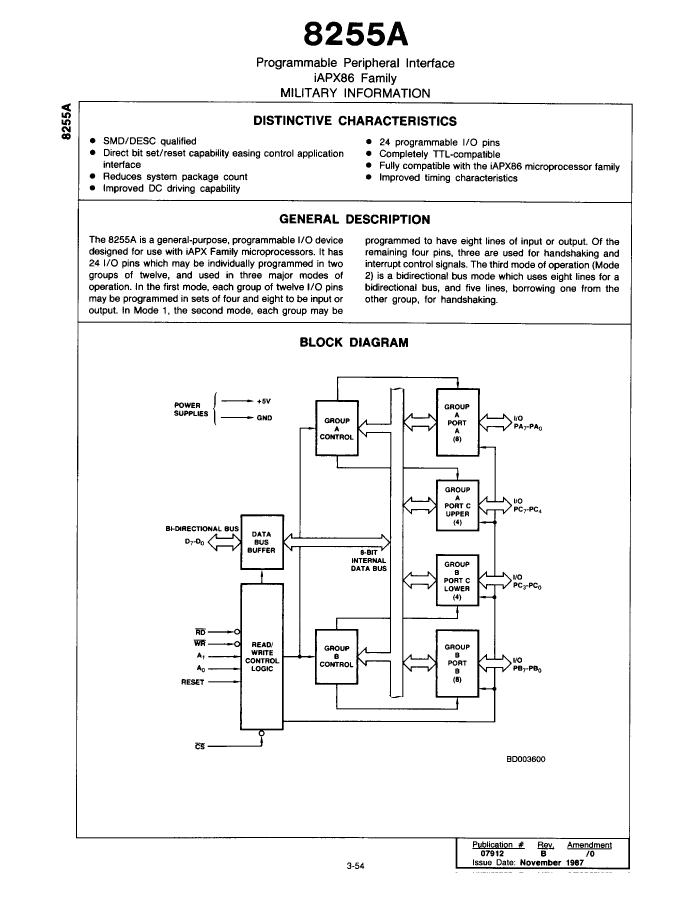

8255A-5/BQA Overview

24 I/O, PIA-GENERAL PURPOSE, CDIP40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP40,.6

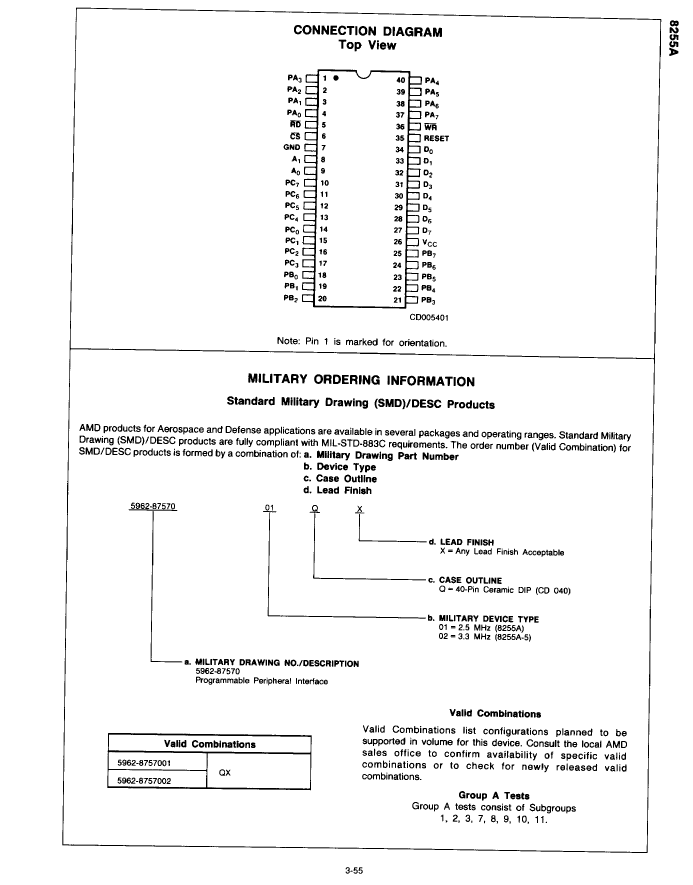

Contacts	40
Reach Compliance Code	unknow
ECCN code	EAR99
External data bus width	8
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.3875 mm
Number of I/O lines	24
Number of ports	3
Number of terminals	40

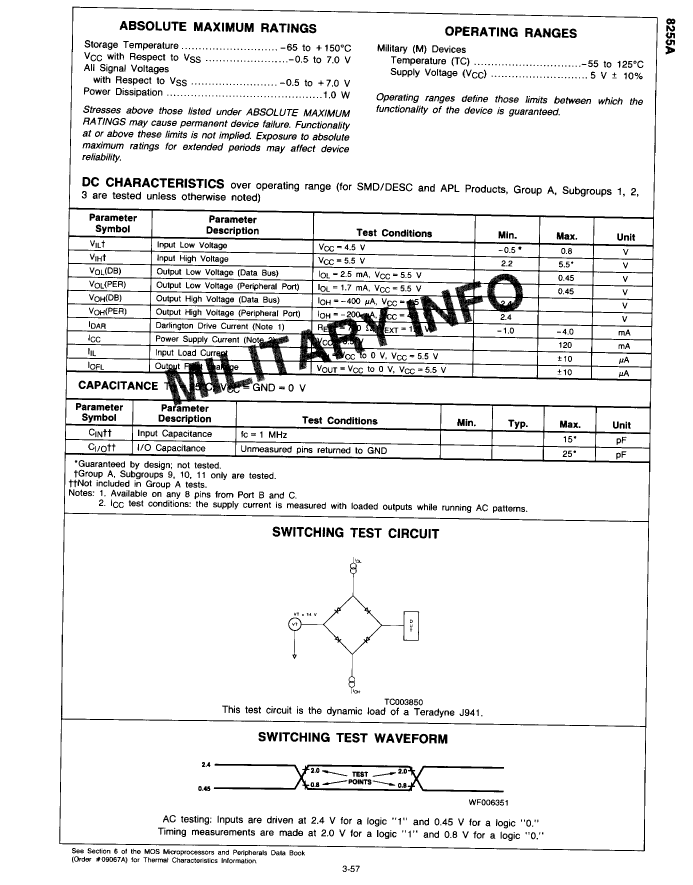

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.588 mm
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE

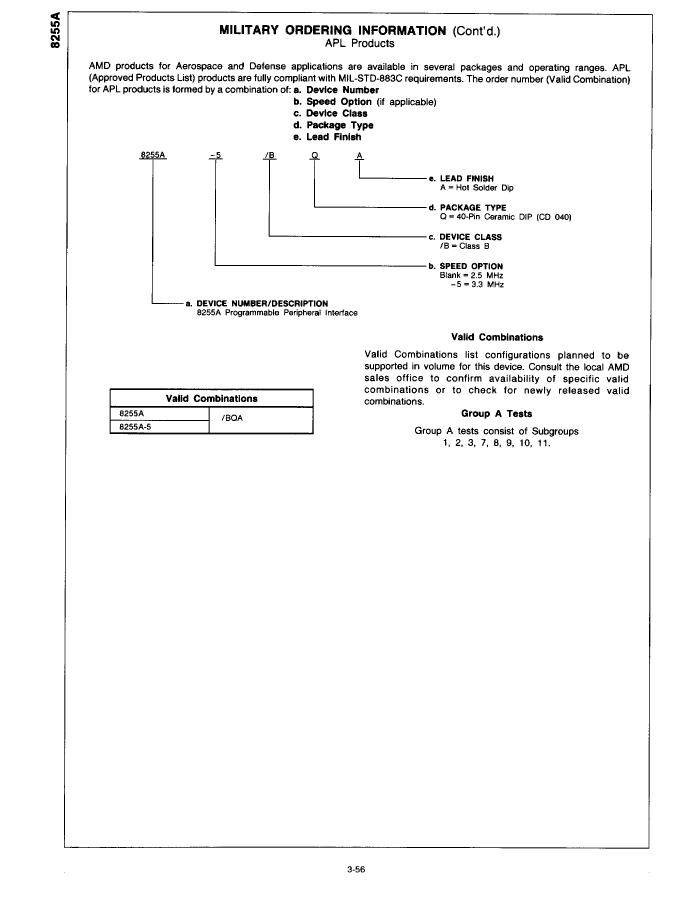

	8255A-5/BQA	5962-8757001QX	5962-8757001	5962-8757002	8255A	5962-8757002QX	8255A-5	8255A/BQA	D8255A
Description	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40	24 I/O, PIA-GENERAL PURPOSE, CDIP40
Reach Compliance Code	unknow	unknow	-	-	-	compli	-	unknow	unknow
Number of ports	3	3	3	3	3	-	3	3	-
Number of terminals	40	40	40	40	40	-	40	40	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-hole	THROUGH-hole	THROUGH-hole	-	THROUGH-hole	THROUGH-HOLE	-
Terminal location	DUAL	DUAL	pair	pair	pair	-	pair	DUAL	-
