ACM1601CS datasheet, PDF - EEWORLD Datasheet

ACM1601CS: DescriptionData Line Filter, 8 Function(s), ROHS COMPLIANT PACKAGE-16; CategoryAnalog mixed-signal IC filter; File Size296KB，1 Pages; ManufacturerALLIED [Allied Electronics]; Environmental Compliance

Download Datasheet Parametric View All

ACM1601CS Overview

Data Line Filter, 8 Function(s), ROHS COMPLIANT PACKAGE-16

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-16
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.35 Ω
filter type	DATA LINE FILTER
high	5.84 mm
inductance	50 µH
length	12.6 mm
Installation type	SURFACE MOUNT
Number of functions	8
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L12.6XB7.0XH5.84 (mm)/L0.496XB0.276XH0.23 (inch)
width	7 mm
Base Number Matches	1

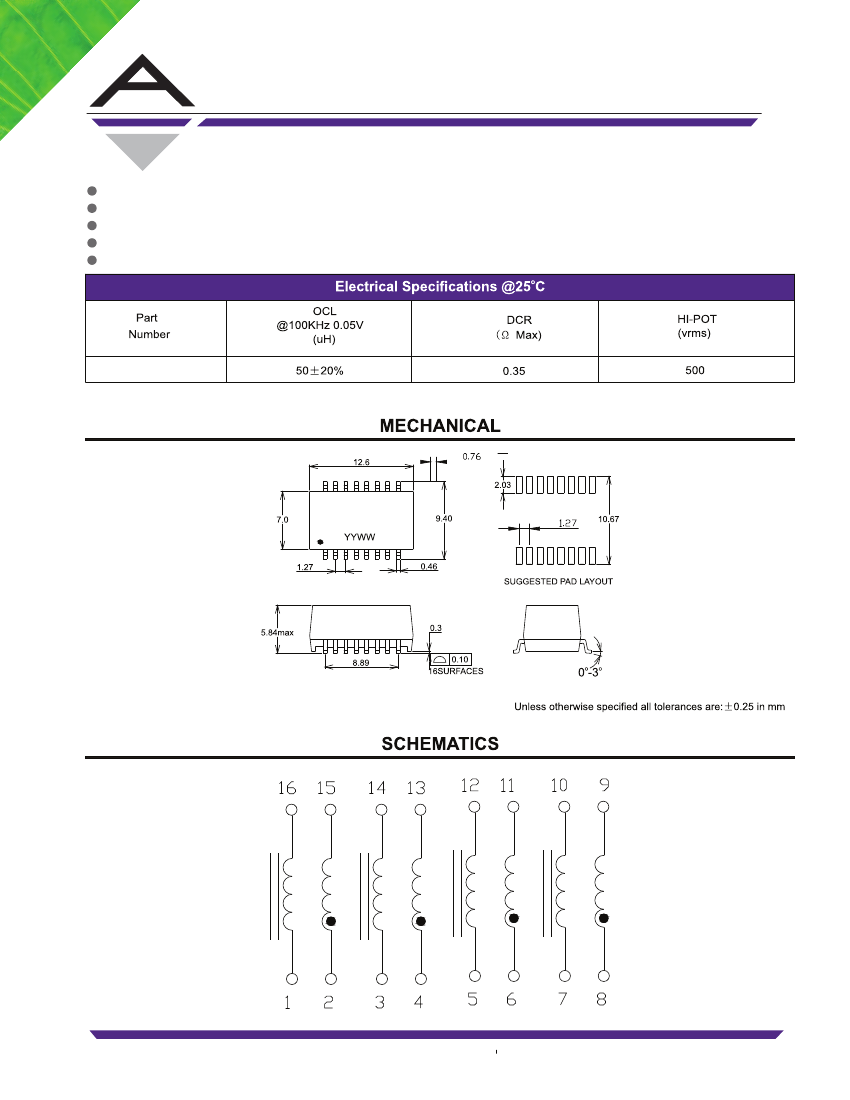

RoHS

COMMON MODE CHOKES

For LAN/Telecom applications

High Impedance to minimize common mode noise

Excellent EMI performance

Surface Mount

Standard Operating Temp: 0ºC to +70ºC

ACM1601CS

All specifications subject to change without notice.

ALLIED

ACM1601CS

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 4/01/09

15

www.alliedcomponents.com
