332LRP100M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 332LRP100M

Preview

332LRP100M: Description+105∑C Screw Terminal Aluminum Electrolytic Capacitors; CategoryPassive components capacitor; File Size390KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

332LRP100M Overview

+105∑C Screw Terminal Aluminum Electrolytic Capacitors

332LRP100M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	75.358 mΩ
JESD-609 code	e3
leakage current	6.6 mA
Manufacturer's serial number	332LRP100M
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	1970 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Matte Tin (Sn)
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

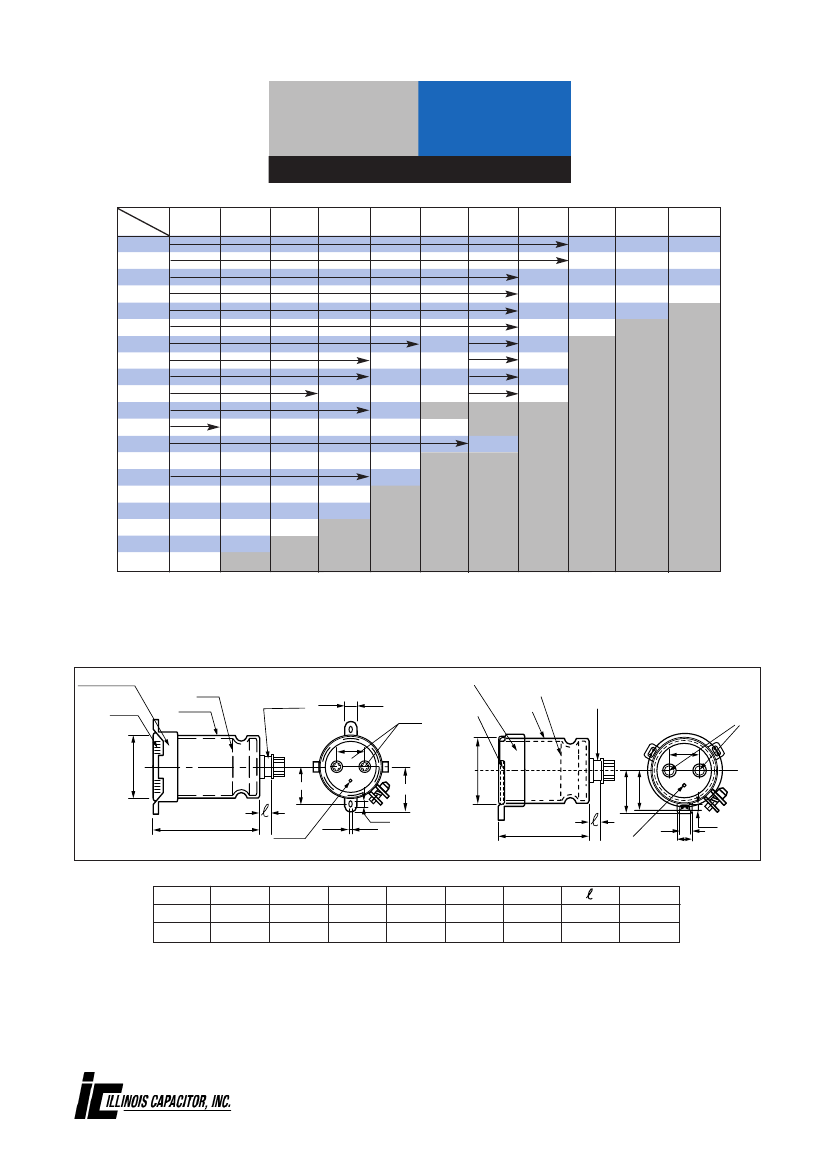

LRP

FEATURES

+105°C Screw

Terminal Aluminum

Electrolytic Capacitors

®

For filtering and extended life applications

I

High ripple current

I

High reiability

I

Capacitance range: 1,000µF to 150,000µF

I

Voltage range: 10 WVDC to 250 WVDC

I

Extended Life

SPECIFICATIONS

Capacitance Tolerance

Operating Temperature Range

Dissipation Factor

120Hz, 20°C

WVDC

tan

δ

WVDC

Leakage Current

Time

D=35

D=51

10

0.8

1.0

±20% at 120 Hz, 20°C

-40°C to +105°C(10V to 100V),

-25°C to +105°C(160V to 250V)

16

0.7

0.9

25

0.45

0.6

35

0.4

0.5

50

0.3

0.4

63

0.25

0.35

100

0.2

160

0.2

200

0.2

250

0.2

≤

250 WVDC

5 minutes

.02CV or 5,000µA

whichever is less

2,000 hours at +105°C with rated WVDC

Capacitors will meet the requirements listed below.

Load Life

Capacitance change

Dissipation factor

Leakage current

≤

20% of initial measured value

≤200%

of initial specified value

≤

100% of specified value

1,000 hours at + 105°C with no voltage applied.

Units will meet load life specifications

Shelf life

WVDC

Ripple Current

Multipliers

10 to 35V

50 to 100V

160 to 250V

Frequency (Hz)

60

0.9

0.8

Temperature (°C)

100k

1.1

1.15

1.35

120

1.0

1K

1.05

1.1

1.2

10k

1.1

1.15

1.3

+45

2.4

+65

2.1

+85

1.6

+105

1.0

®
