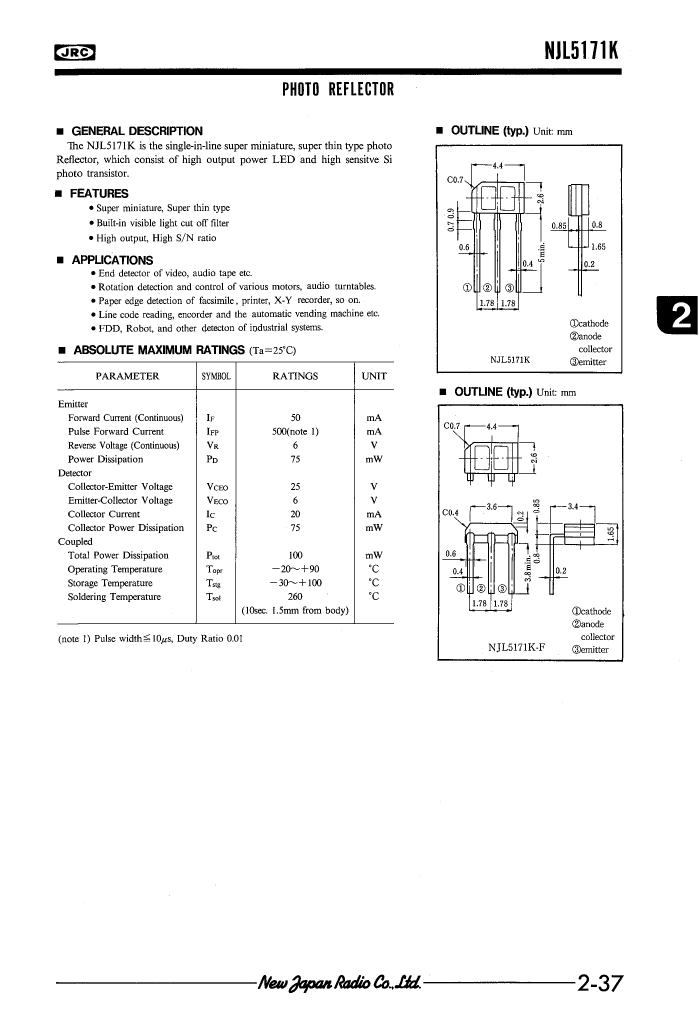

NJL5171K-FG datasheet, PDF - EEWORLD Datasheet

NJL5171K-FG: DescriptionDiffuse Photoelectric Sensor, 0.7mm Min, 0.7mm Max, 0.07-0.16mA, Rectangular, Through Hole Mount, SIP-3; CategoryThe sensor Sensor/transducer; File Size201KB，6 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

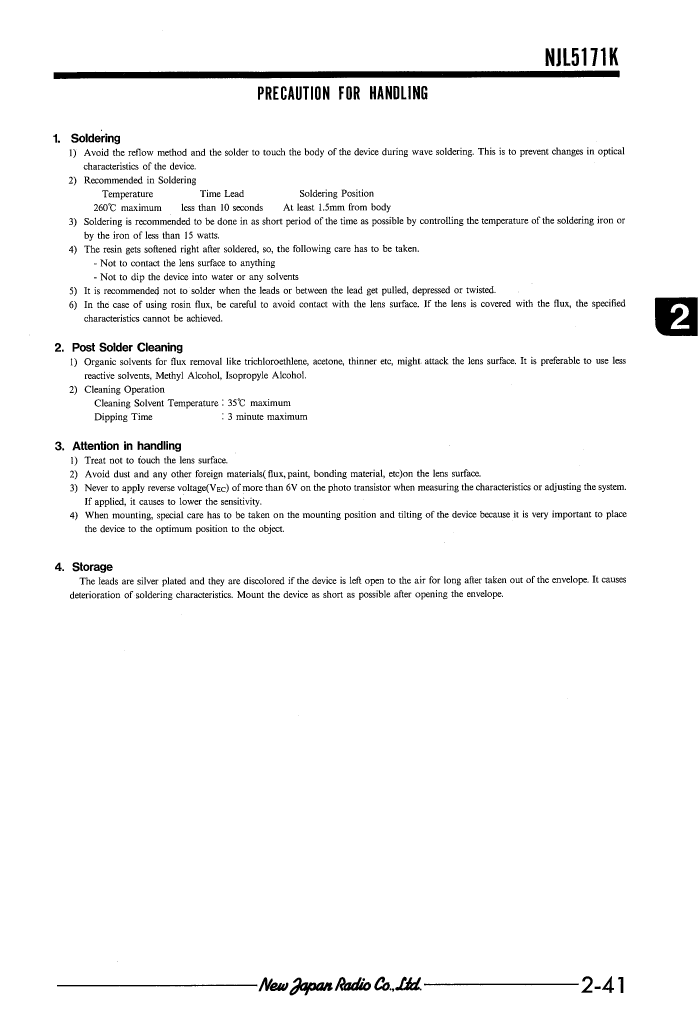

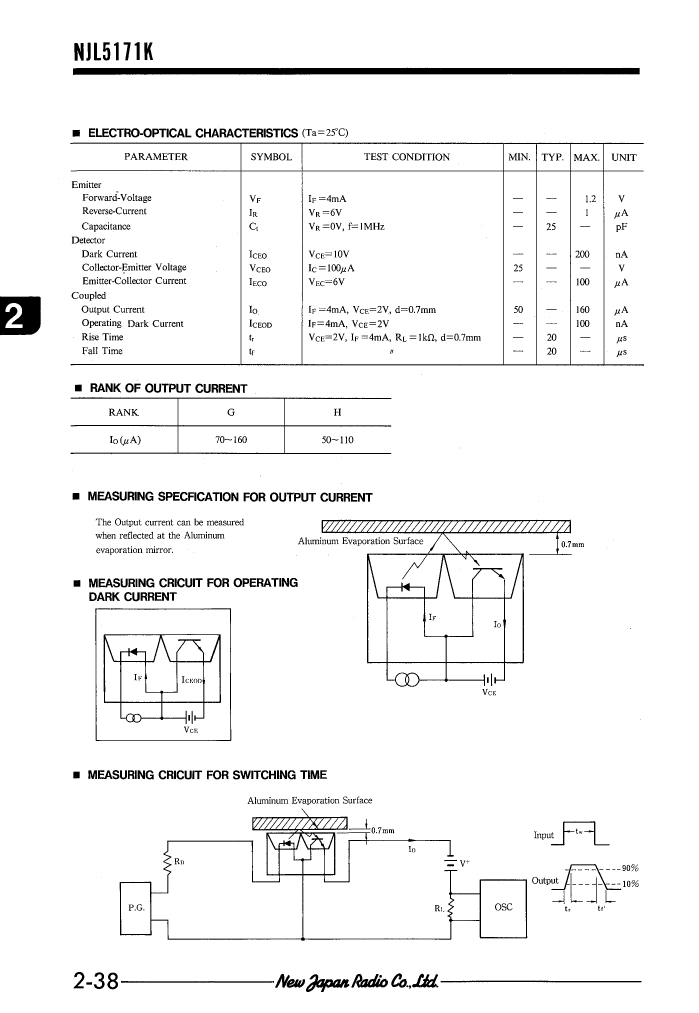

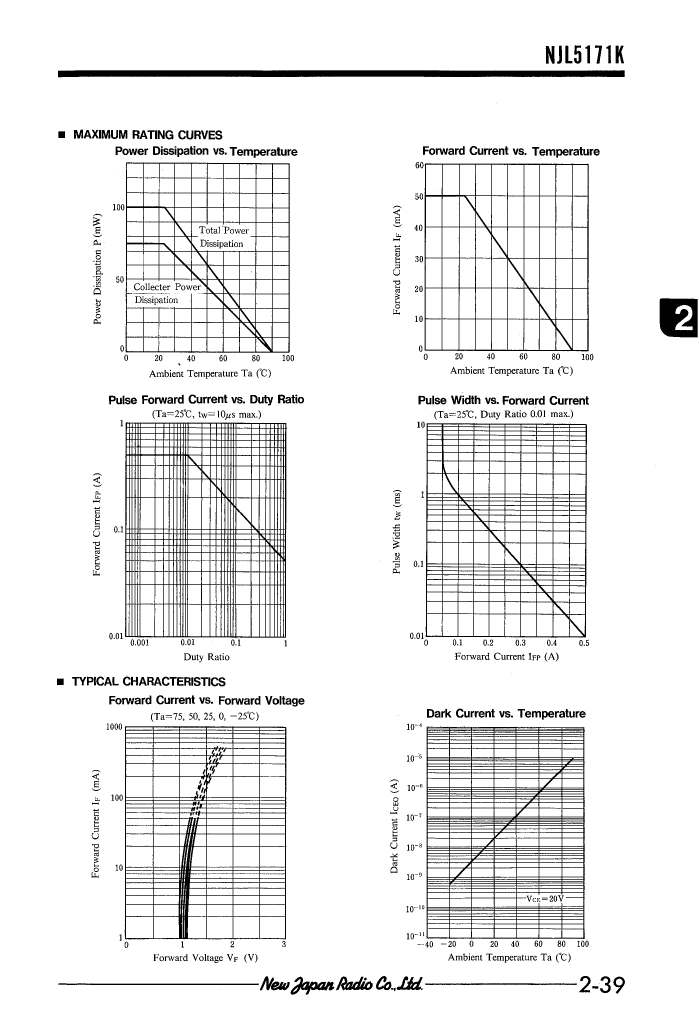

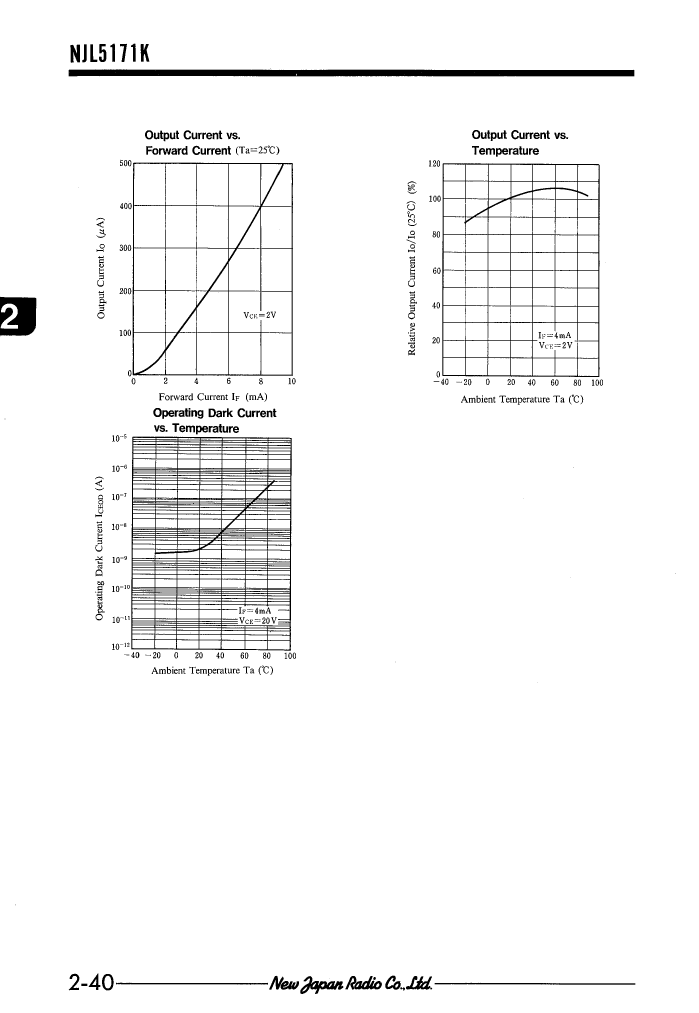

NJL5171K-FG Overview

Diffuse Photoelectric Sensor, 0.7mm Min, 0.7mm Max, 0.07-0.16mA, Rectangular, Through Hole Mount, SIP-3

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	25V VCE, 200NA DARK CURRENT
body width	2.6 mm
body height	1.65 mm
Body length or diameter	4.4 mm
Maximum measuring range (mm)	0.7 mm
Minimum measuring range (mm)	0.7 mm
Installation features	THROUGH HOLE MOUNT
Maximum working current	4 mA
Output range	0.07-0.16mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	20 µs
Sensor/Transducer Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Maximum supply voltage	1.2 V
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

	NJL5171K-FG	NJL5171K-FH	NJL5171KH	NJL5171KG
Description	Diffuse Photoelectric Sensor, 0.7mm Min, 0.7mm Max, 0.07-0.16mA, Rectangular, Through Hole Mount, SIP-3	Diffuse Photoelectric Sensor, 0.7mm Min, 0.7mm Max, 0.05-0.11mA, Rectangular, Through Hole Mount, SIP-3	Diffuse Photoelectric Sensor, 0.7mm Min, 0.7mm Max, 0.05-0.11mA, Rectangular, Through Hole Mount, SIP-3	Diffuse Photoelectric Sensor, 0.7mm Min, 0.7mm Max, 0.07-0.16mA, Rectangular, Through Hole Mount, SIP-3
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	25V VCE, 200NA DARK CURRENT	25V VCE, 200NA DARK CURRENT	25V VCE, 200NA DARK CURRENT	25V VCE, 200NA DARK CURRENT
body width	2.6 mm	2.6 mm	2.6 mm	2.6 mm
body height	1.65 mm	1.65 mm	1.65 mm	1.65 mm
Body length or diameter	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Maximum measuring range (mm)	0.7 mm	0.7 mm	0.7 mm	0.7 mm
Minimum measuring range (mm)	0.7 mm	0.7 mm	0.7 mm	0.7 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum working current	4 mA	4 mA	4 mA	4 mA
Output range	0.07-0.16mA	0.05-0.11mA	0.05-0.11mA	0.07-0.16mA
Output type	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Response time	20 µs	20 µs	20 µs	20 µs
Maximum supply voltage	1.2 V	1.2 V	1.2 V	1.2 V
surface mount	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Sensor/Transducer Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE	-
