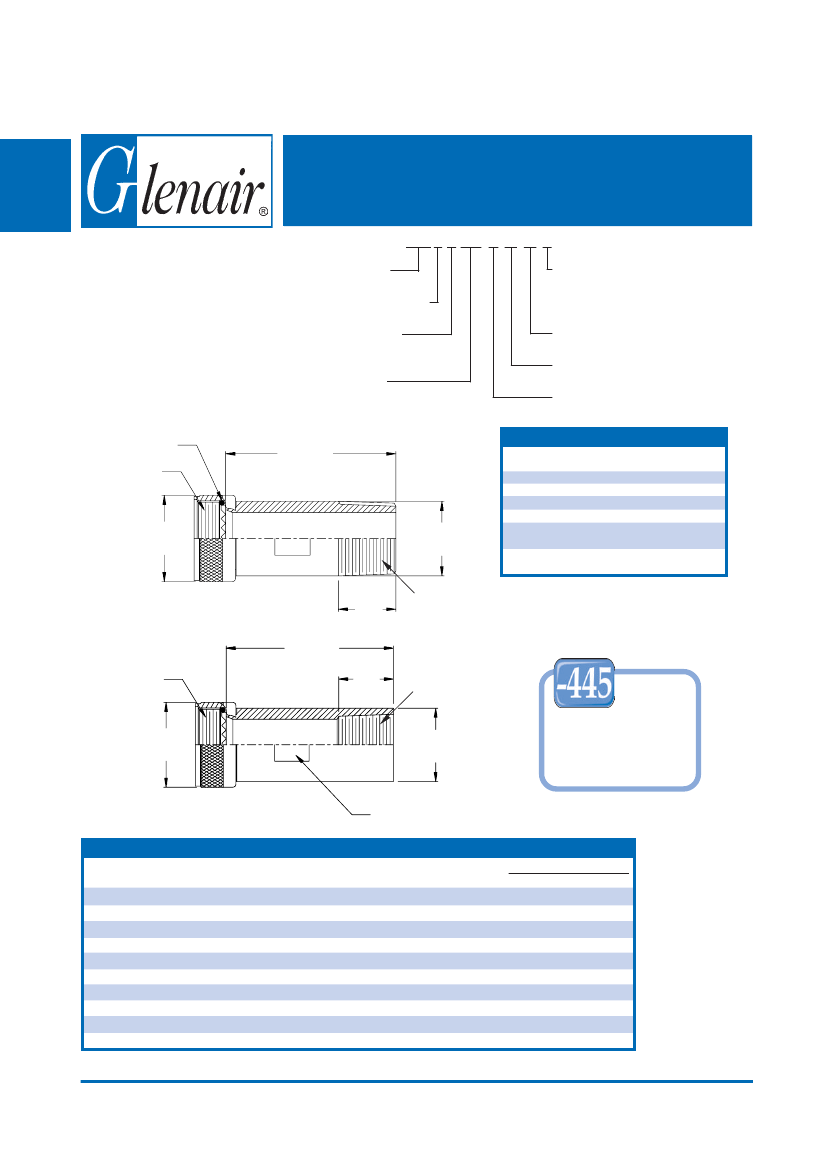

330-001 and 330-002

Pipe Thread Adapters

Rotatable Coupling

330 F S 001 M 16 03-5

Product Series

Connector Designator

Angle and Profile

S = Straight

Basic Part No.

001 = External Thread

002 = Internal Thread

O-Ring

A Thread

(Table I)

Length

± .060 (1.52)

GLENAIR

SYMBOL

CONNECTOR

DESIGNATORS

A-F-H-L-S

ROTATABLE

COUPLING

Length Designator (1/2 inch incre-

ments: e.g. 5=2.5 inches,

Minimum Lengths Table III)

Cable Entry (Table III)

Shell Size (Table I)

Finish (Table II)

TABLE II: STANDARD FINISHES

FINISH

Cadmium Plate, Olive Drab

Anodize, Black

Hard Coat, Anodic

Electroless Nickel

Cadmium Plate, Olive Drab Over

Electroless Nickel

F (Table III)

See Back Cover for Complete Finish Information

and Additional Finish Options

(Table III)

Length

± .060 (1.52)

A Thread

(Table I)

(Table III)

External

Tapered Pipe

Thread

Internal

Tapered Pipe

Thread

See inside back cover fold-

out or pages 13 and 14 for

unabridged Tables I and II.

Now Available

with the “NESTOR”

G (Table III)

Add “-445” to Specify

Glenair’s Non-Detent,

Spring-Loaded, Self-

Locking Coupling. See

Page 41 for Details.

Wrench Flats Typ. (Space Permitting)

TABLE III: CABLE ENTRY

Dash

No.

Pipe

Thread

1/8

1/4

3/8

1/2

3/4

1 1/4

1 1/2

2 1/2

.391

.593

.781

.812

1.000

1.031

1.062

1.453

(9.9)

(15.1)

(19.8)

(20.6)

(25.4)

(26.2)

(27.0)

(36.9)

F Dia

.405 (10.3)

.540 (13.7)

.675 (17.1)

.840 (21.3)

1.050 (26.7)

1.315 (33.4)

1.660 (42.2)

1.900 (48.3)

2.375 (60.3)

2.875 (73.0)

G Dia

.500 (12.7)

.625 (15.9)

.875 (22.2)

1.000 (25.4)

1.250 (31.8)

1.500 (38.1)

1.750 (44.5)

2.125 (54.0)

2.500 (63.5)

3.250 (82.6)

Length

Min

Desig.

1.5 (38.1)

2.0 (50.8)

2.5 (63.5)

1. Pipe threads per

American standard

taper pipe thread.

2. Metric dimensions

(mm) are indicated

in parentheses.

3. O-Ring not supplied

with Connector

Designator A.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
