ZTX614K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZTX614K

ZTX614K: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size44KB，2 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZTX614K Overview

Small Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

ZTX614K Parametric

Parameter Name	Attribute value
Parts packaging code	TO-92
package instruction	PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	100 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	10000
JESD-30 code	R-PSIP-W3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

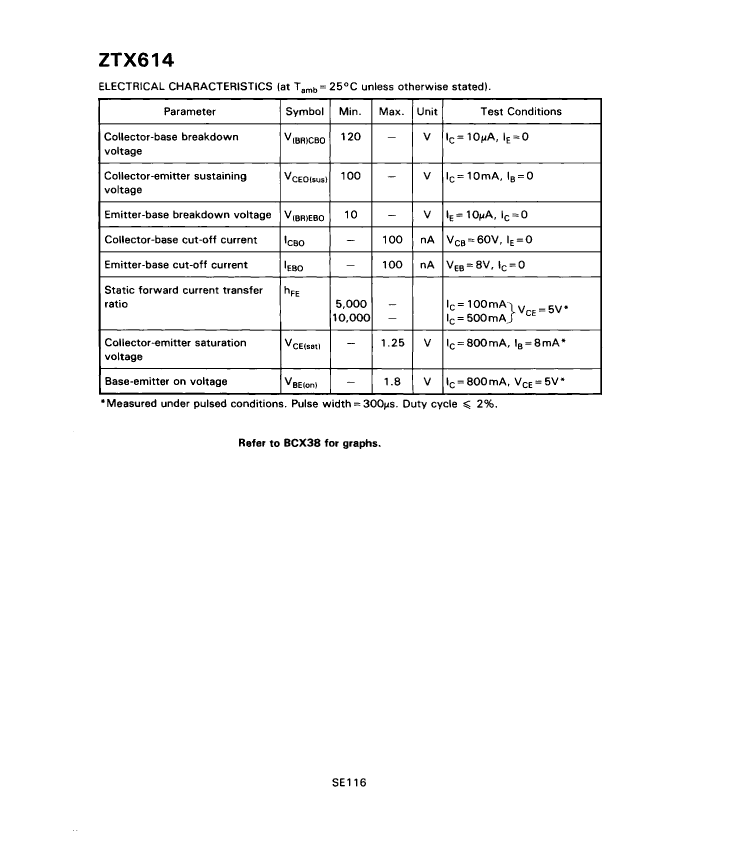

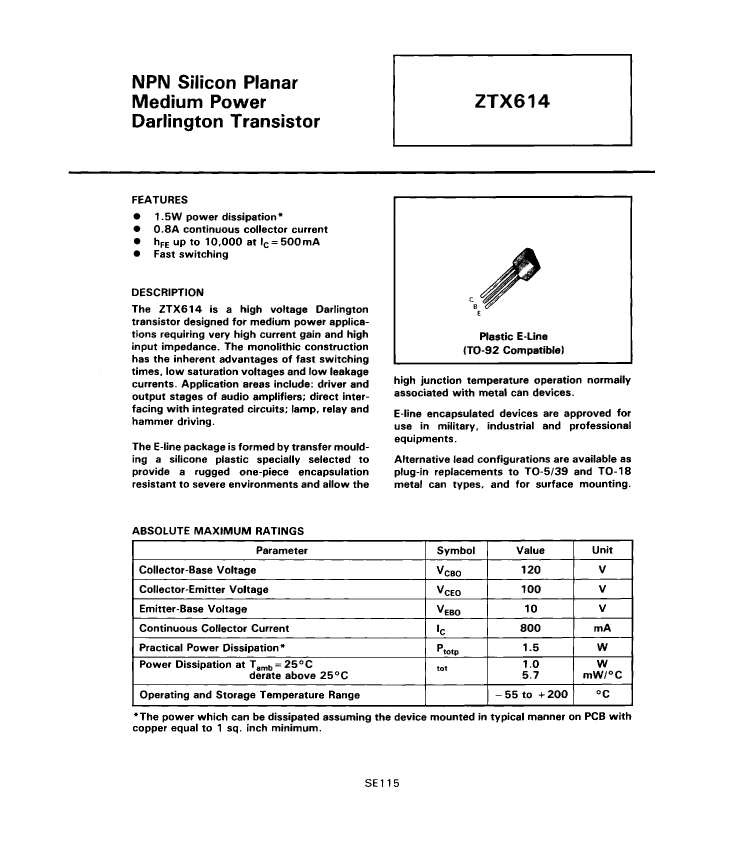

Preview

Download Datasheet

View All

ZTX614K Related Products

	ZTX614K	ZTX614M1	ZTX614Q
Description	Small Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.8A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Parts packaging code	TO-92	TO-92	TO-92
package instruction	PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	SMALL OUTLINE, R-PSSO-G3	PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.8 A	0.8 A	0.8 A
Collector-emitter maximum voltage	100 V	100 V	100 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	10000	10000	10000
JESD-30 code	R-PSIP-W3	R-PSSO-G3	R-PSIP-W3
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	WIRE	GULL WING	WIRE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	40	40
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Maker	-	Diodes Incorporated	Diodes Incorporated
