ZTX1053ASTOF datasheet, PDF - EEWORLD Datasheet

ZTX1053ASTOF: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 75V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size35KB，2 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

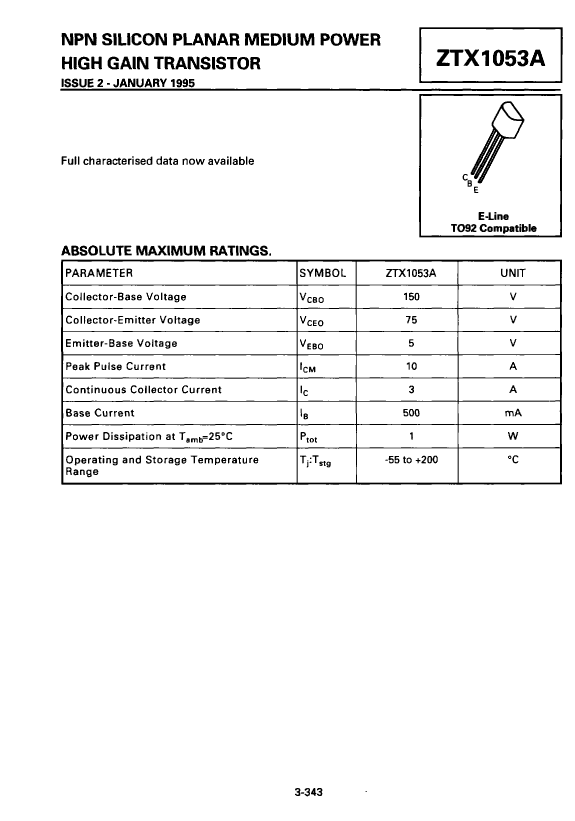

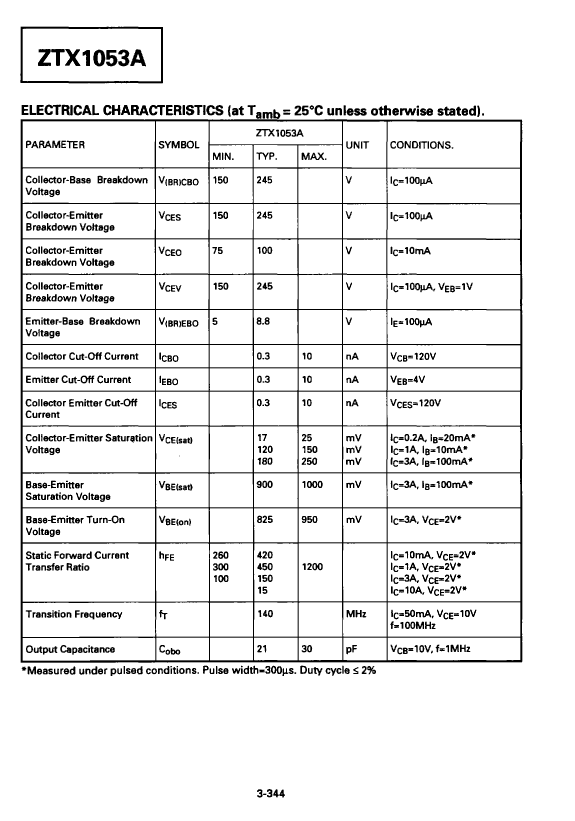

ZTX1053ASTOF Overview

Small Signal Bipolar Transistor, 3A I(C), 75V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN

Parameter Name	Attribute value
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-W3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	75 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	O-PBCY-W3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
Transistor component materials	SILICON
Nominal transition frequency (fT)	140 MHz
Base Number Matches	1

	ZTX1053ASTOF	ZTX1053ASTOE
Description	Small Signal Bipolar Transistor, 3A I(C), 75V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN	Small Signal Bipolar Transistor, 3A I(C), 75V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN
Parts packaging code	TO-92	TO-92
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Contacts	3	3
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Maximum collector current (IC)	3 A	3 A
Collector-emitter maximum voltage	75 V	75 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	100
JESD-30 code	O-PBCY-W3	O-PBCY-W3
JESD-609 code	e3	e3
Humidity sensitivity level	1	1
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	200 °C	200 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	40	40
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	140 MHz	140 MHz
