ZT84 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZT84

ZT84: Description500mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18; CategoryDiscrete semiconductor The transistor; File Size73KB，1 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZT84 Overview

500mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18

ZT84 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	75
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
Guideline	CECC
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
VCEsat-Max	0.2 V
Base Number Matches	1

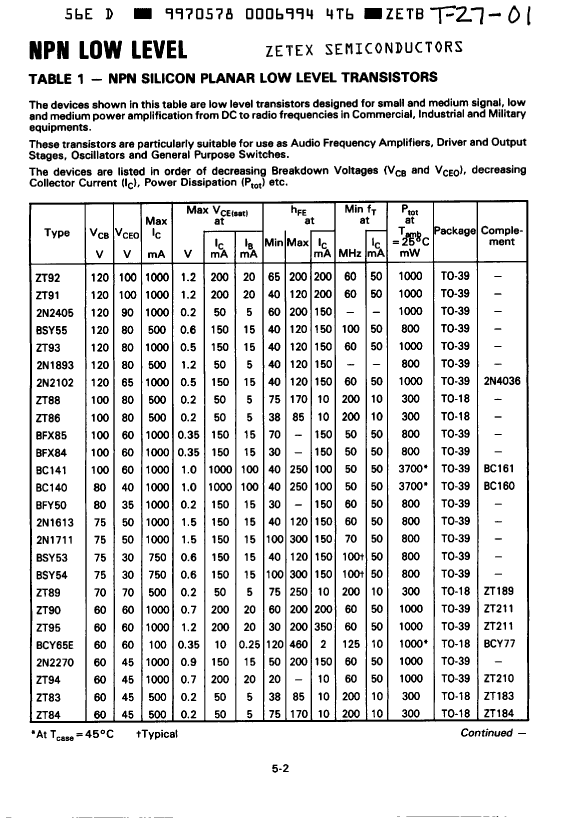

Preview

Download Datasheet

View All

ZT84 Related Products

	ZT84	BSY53	BFX85	ZT88	ZT95
Description	500mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18	750mA, 30V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39	1000mA, 60V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39	500mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-18	1000mA, 60V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-39
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.5 A	0.75 A	1 A	0.5 A	1 A
Collector-emitter maximum voltage	45 V	30 V	60 V	80 V	60 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	75	40	70	75	30
JEDEC-95 code	TO-18	TO-39	TO-39	TO-18	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	235	235	235	235	235
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.3 W	0.8 W	0.8 W	0.3 W	1 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	100 MHz	50 MHz	200 MHz	60 MHz
VCEsat-Max	0.2 V	0.6 V	0.35 V	0.2 V	1.2 V
Other features	LOW NOISE	-	-	LOW NOISE	LOW NOISE
Base Number Matches	1	1	1	1	-
