32F6H: Description14 A, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size340KB，1 Pages; ManufacturerEDAL; Websitehttp://www.edal.com/

Download Datasheet Parametric Compare View All

32F6H Overview

14 A, SILICON, RECTIFIER DIODE

32F6H Parametric

Parameter Name	Attribute value
Maker	EDAL
package instruction	R-XXMA-X2
Reach Compliance Code	unknown
ECCN code	EAR99
application	HIGH VOLTAGE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-XXMA-X2
Maximum non-repetitive peak forward current	1200 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	14 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED

Preview

Download Datasheet

View All

Edal

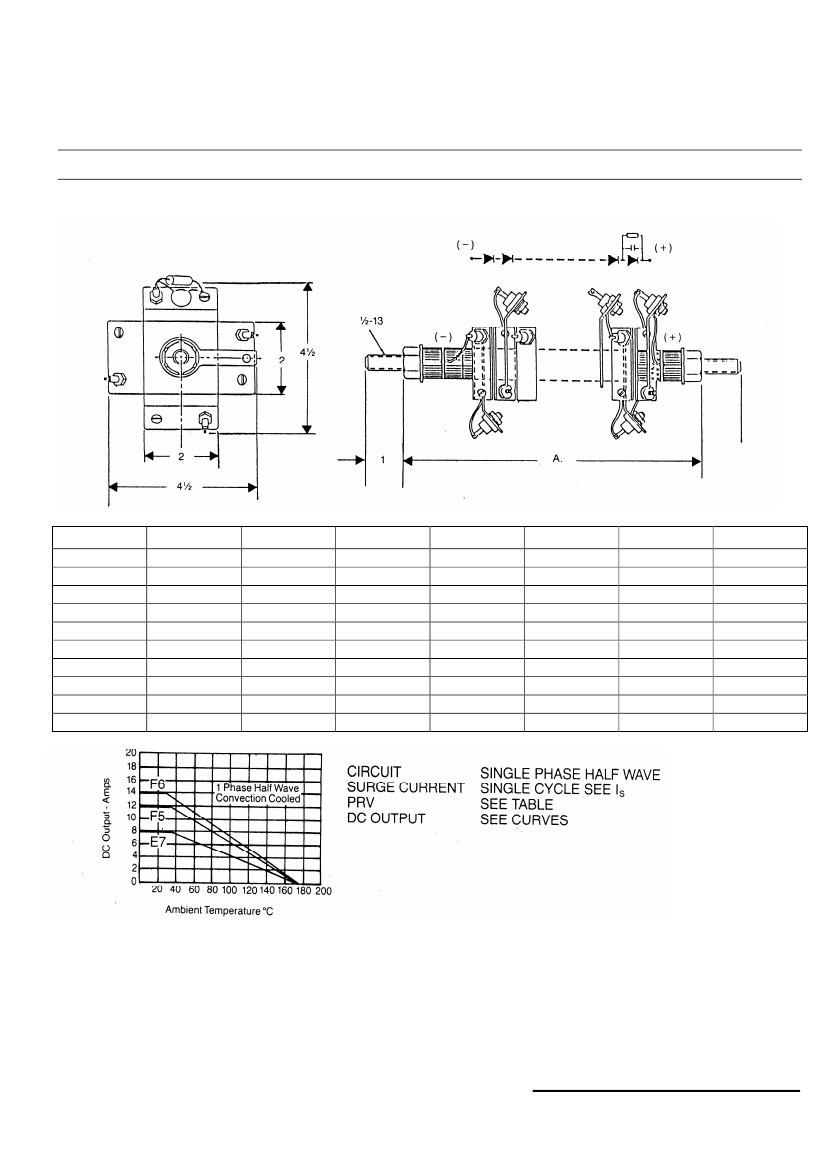

SERIES E7H/F5H/F6H

Silicon High Voltage Assembly

PIV (KV)

8

12

16

20

24

28

32

36

40

44

A IN

5.125

6.250

7.375

8.500

9.625

10.750

11.875

13.000

14.125

15.750

PART NO.

8E7H

12E7H

16E7H

20E7H

24E7H

28E7H

32E7H

36E7H

40E7H

44E7H

Is AMPS

250

PART NO.

8F5H

12F5H

16F5H

20F5H

24F5H

28F5H

32F5H

36F5H

40F5H

44F5H

Is AMPS

700

PART NO.

8F6H

12F6H

16F6H

20F6H

24F6H

28F6H

32F6H

36F6H

40F6H

44F6H

Is AMPS

1200

(203) 467-2591 TEL

(203) 469-5928 FAX

Email: Info@ edal.com

Internet:http://www.edal.com

EDAL

industries, inc.

51 Commerce St. East Haven, CT 06512

32F6H Related Products

	32F6H	16E7H	8E7H	8F5H	8F6H	32E7H	32F5H	24F5H	12F5H
Description	14 A, SILICON, RECTIFIER DIODE	8 A, SILICON, RECTIFIER DIODE	8 A, SILICON, RECTIFIER DIODE	12 A, SILICON, RECTIFIER DIODE	14 A, SILICON, RECTIFIER DIODE	8 A, SILICON, RECTIFIER DIODE	12 A, SILICON, RECTIFIER DIODE	12 A, SILICON, RECTIFIER DIODE	12 A, SILICON, RECTIFIER DIODE
Maker	EDAL	EDAL	EDAL	EDAL	EDAL	-	-	EDAL	-
package instruction	R-XXMA-X2	R-XXMA-X2	R-XXMA-X2	R-XXMA-X2	R-XXMA-X2	-	-	R-XXMA-X2	-
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	-	-	unknown	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	-
application	HIGH VOLTAGE	HIGH VOLTAGE	HIGH VOLTAGE	HIGH VOLTAGE	HIGH VOLTAGE	-	-	HIGH VOLTAGE	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	-	SINGLE	-
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-	-	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	-	RECTIFIER DIODE	-
JESD-30 code	R-XXMA-X2	R-XXMA-X2	R-XXMA-X2	R-XXMA-X2	R-XXMA-X2	-	-	R-XXMA-X2	-
Maximum non-repetitive peak forward current	1200 A	250 A	250 A	700 A	1200 A	-	-	700 A	-
Number of components	1	1	1	1	1	-	-	1	-
Phase	1	1	1	1	1	-	-	1	-
Number of terminals	2	2	2	2	2	-	-	2	-
Maximum output current	14 A	8 A	8 A	12 A	14 A	-	-	12 A	-
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	-	UNSPECIFIED	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	-
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	-	MICROELECTRONIC ASSEMBLY	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	-
surface mount	NO	NO	NO	NO	NO	-	-	NO	-
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	-	UNSPECIFIED	-
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	-	UNSPECIFIED	-
