CMDA6AA7D1S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CMDA6AA7D1S

Preview

CMDA6AA7D1S: DescriptionSingle Color LED, Orange, Clear Diffused, 1mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size401KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric Compare View All

CMDA6AA7D1S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMDA6AA7D1S	-	-	View	Buy Now

CMDA6AA7D1S Overview

Single Color LED, Orange, Clear Diffused, 1mm, SURFACE MOUNT PACKAGE-2

CMDA6AA7D1S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
Other features	SUPPORTS INFRARED
color	ORANGE
Configuration	SINGLE
Lens type	CLEAR DIFFUSED
Nominal luminous intensity	8.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.8 mm
method of packing	TAPE AND REEL 7"
peak wavelength	605 nm
shape	RECTANGULAR
size	1 mm
surface mount	YES
Terminal pitch	1.5 mm
perspective	170 deg
Base Number Matches	1

Preview

Download Datasheet

View All

engineered to light up your design

www.vcclite.com

1.800.522.5546

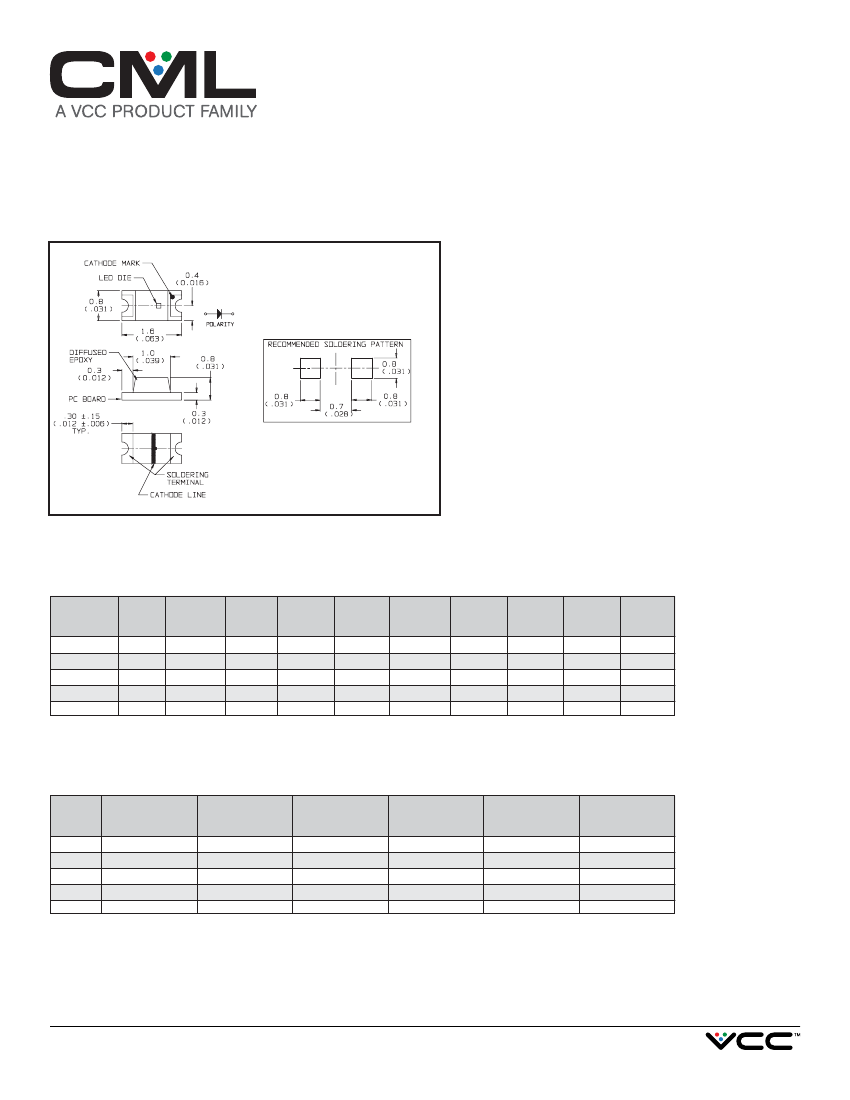

CMDA6 Series 0603 Package Size Surface Mount LED

Description and Features

Features

• Small size

• Industry standard 0603

Footprint

• Compatible with IR solder

profiles

• Ideal for use with Light

Pipes

• Diffused optics

• Top emitting

• Available in 8 mm

• Tape on 7" diameter reels

• Packaged 4,000 pieces

per reel

Applications

• Keypad backlighting

• Push-button

backlighting

• LCD backlighting

• Symbol backlighting

• Front panel indicator

NOTES:

1. All dimensions are in millimeters (in).

2. 1 micro second @ 10% duty cycle

Electro-Optical Characteristics and Ratings

Part

Number

CMDA6AY7D1S

CMDA6AA7D1S

CMDA6BR7D1S

CMDA6DR7D1S

CMDA6CY7D1S

Output

Color

Green

Orange

HE Red

Red

Yellow

Diffusion

Package

Color

Clear

Test

Current

(mA)

20

Forward

Voltage

Typ. (V)

2.2

2.1

1.8

2.1

Forward

Luminous

Voltage

Intensity

Max. Typ. (V) Min. (mcd)

2.6

4.0

2.5

6.3

2.5

Luminous

Intensity

Typ. (mcd)

15

8

10

17

8

Peak

Wavelength

(nm)

570

605

630

660

589

Viewing

Angle

28 1/2 (°)

170

Diffused

Absolute Maximum Ratings to = 25°C

Part

Number

AY

AA

BR

DR

CY

Power

Dissipation

(mW)

52

65

52

Operating

Temperature

(°C)

-30 to +85

Storage

Temperature

(°C)

-40 to +85

Peak Forward

Current Max.

(See note 2) (mA)

100

Reverse Voltage

(IR = 100 mA)

(V)

5

Lead Solder Time

at 230°C

(Seconds)

10

The model numbers listed above are standard off the shelf parts. For the user who may have a requirement calling for

various color/electrical specifications, a part number can be determined by calling the factory.

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

CMDA6AA7D1S Related Products

	CMDA6AA7D1S	M55342H10B223AVWIM	CMDA6CY7D1S	CMDA6DR7D1S	CMDA6BR7D1S
Description	Single Color LED, Orange, Clear Diffused, 1mm, SURFACE MOUNT PACKAGE-2	Fixed Resistor, Thin Film, 0.5W, 223ohm, 75V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 1010, CHIP	Single Color LED, Yellow, Clear Diffused, 1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, Clear Diffused, 1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, Clear Diffused, 1mm, SURFACE MOUNT PACKAGE-2
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to
package instruction	SURFACE MOUNT PACKAGE-2	SMT, 1010	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	not_compliant	unknown	unknown	unknown
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	150 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-65 °C	-30 °C	-30 °C	-30 °C
method of packing	TAPE AND REEL 7"	Waffle Pack	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7\"
surface mount	YES	YES	YES	YES	YES
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free
Other features	SUPPORTS INFRARED	-	SUPPORTS INFRARED	SUPPORTS INFRARED	SUPPORTS INFRARED
color	ORANGE	-	YELLOW	RED	HIGH EFFICIENCY RED
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE
Lens type	CLEAR DIFFUSED	-	CLEAR DIFFUSED	CLEAR DIFFUSED	CLEAR DIFFUSED
Nominal luminous intensity	8.0 mcd	-	8.0 mcd	17.0 mcd	10.0 mcd
Number of functions	1	-	1	1	1
Optoelectronic device types	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.8 mm	-	0.8 mm	0.8 mm	0.8 mm
peak wavelength	605 nm	-	589 nm	660 nm	630 nm
shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1 mm	-	1 mm	1 mm	1 mm
Terminal pitch	1.5 mm	-	1.5 mm	1.5 mm	1.5 mm
perspective	170 deg	-	170 deg	170 deg	170 deg
Base Number Matches	1	-	1	1	-
