Type 3186
High Capacitance, Aluminum Electrolytic Screw Terminal
Type 3186, 85 °C Best-Value, High-Capacitance, Aluminum.
Choice of Potted or Rilled High-Vibration Construction
Best Value Screw Terminal Type

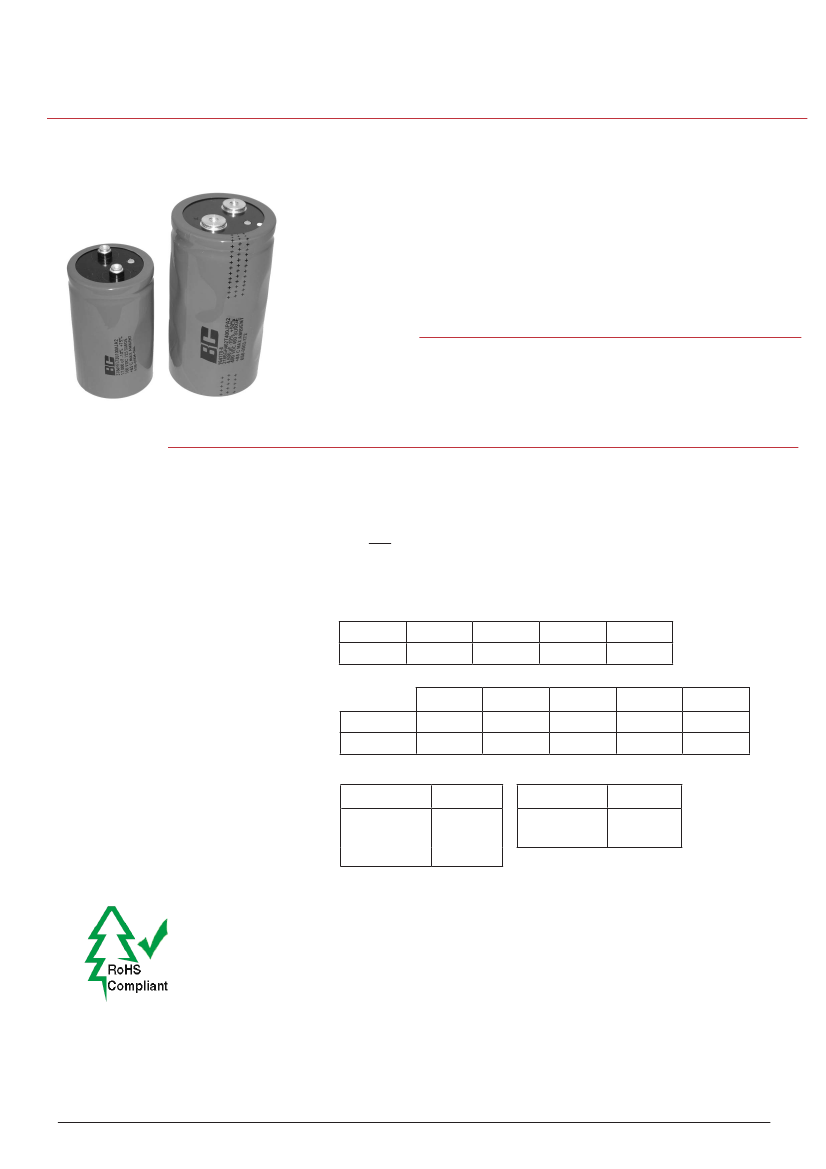

Type 3186 is available with the capacitor element potted in place for
lowest-cost or secured by rills, spoon shaped dimples in the side of
the can. Rilled construction offers the industry’s highest vibration and
shock withstanding and excellent heat transfer into the sides and bot-
tom of the can. Besides increasing ripple current handling, the rilled
construction extends the great value of Type 3186 into military and
transportation settings that require rugged mechanical capability.
•
•
•
•
Rilled cans withstand high shock and vibration.
Potted cans are the lowest cost screw-terminal type.
High ripple current capability
High capacitance per can
Highlights
Specifications
Operating Temperature:Rated
Voltage:
Capacitance:
Capacitance Tolerance:
DC Leakage Current:
Cold Impedence:
–40 °C to 85 °C
16 to 500 Vdc
220 µF to 1.0 F
–10% +75% up to 100 Vdc, –10 + 50% 200 Vdc & up
≤6√CV µA (6 mA max.) at 5 minutes
–20 °C multiple of 25 °C Z ≤ 8 for 16–50V, 4 for 63–100V,
3 for 150V and up.
Ripple Current Multipliers:
Ambient Temperature
45 °C
2.24
55 °C
2.00
60 Hz
16–100 V
200–500 V
0.90
0.90
65 °C
1.73
120 Hz
1.00
1.00
75 °C
1.41
300 Hz
1.15
1.25
85 °C
1.00
1000 Hz
1.25
1.40
≥10 kHz
1.30
1.50
Frequency
Series Inductance:
case dia (in)
1.375
1.75
2
ESL (nH)
18
23
25
case dia (in)
2.5
3
ESL (nH)
27
29
Life Endurance Test:
2,000 h at 85 °C and rated voltage
∆Capacitance ±10%
ESR 200% of limit
DCL 100% of limit
Shelf Life:
500 h @ 85 °C and no voltage
∆Capacitance ±10%
ESR 175% of limit
Complies with the EU Directive
2002/95/EC requirement restricting
DCL 200% of limit
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
Vibration:
Potted: 10 to 55 Hz, 0.06” and 10g max, 1.5 h ea. of 2 axis
(Cr(VI)), PolyBrominated Biphenyls
Rilled: 10 to 55 Hz, 0.06” and 15g max, 1.5 h ea. of 2 axis
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 3186
High Capacitance, Aluminum Electrolytic Screw Terminal

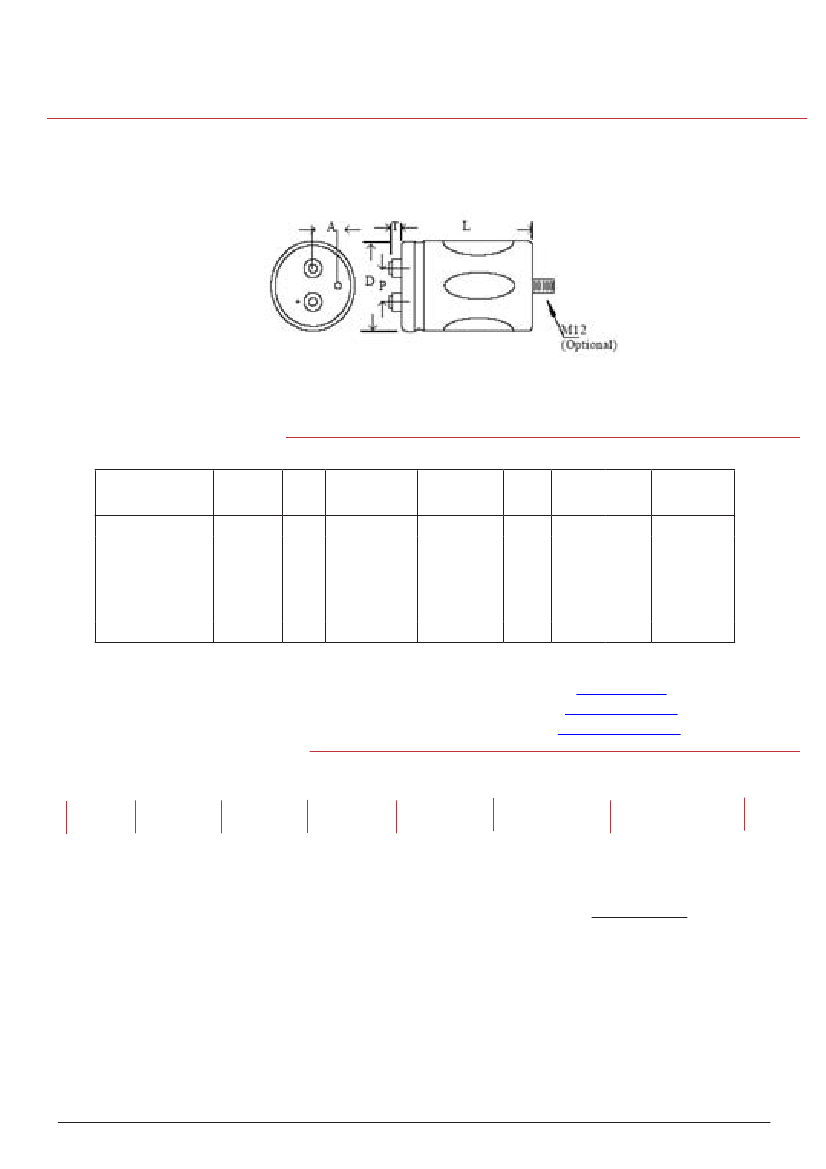

Outline Drawing
Terminal Dimensions
For Case
Terminal Style
Low Post
High Post
High Current, Low
High Current, High
M5 Post, Small
M6 Low Post
Diameters Code
1⅜ to 3
1⅜ to 3
2½ & 3
2½ & 3
1⅜ to 2
3
B
A
D
K
M
J
Post Diameter
in
mm
0.314 8.0
0.314 8.0
0.684 17.4
0.684 17.4
0.314 8.0
0.684 17.4
H max
in
mm Thread
10–32
10–32
¼–28
¼–28
M5
M6
0.094 2.4
0.281 7.1
0.125 3.2
0.281 7.1
0.281 7.1
0.125 3.2
min Full Thread
in
0.218
0.375
0.344
0.469
0.375
0.344
mm
5.5
9.5
8.7
11.9
9.5
8.7
Torque
in·lb
25
25
60
60
25
60
N·m
2.82
2.82
6.78
6.78
2.82
6.78
Part Numbering System
3186
GH
562
T
400
Voltage
M
Click here to
see Hardware &
Mounting Options
A1
Construction
*
A1=potted
R1=rilled
S1=stud &
potted**
T1=stud &
rilled**
P
Insulation
P=0.008” PVC
H=0.012” PVC
N=none
With mounting
clamp/bracket:
R=0.008” PVC
J=0.012” PVC
X=none
Type Case Code Capacitance Tolerance
Terminal
562=5600 µF M= ±20%
016=16 Vdc
A=high post
223=22000 µF S= –10 +30% 450=450 Vdc
B=low post
821=820 µF
T= –10 +50%
D=high current
U= –10 +75%
low post
K=high current
high post
M=M5 high post
J=M6 low post
* Construction code is also a sequence number, e.g., A1, A2,---,A9, B1,B2,---,
for customer specifications. Sequence number 1 in A1, R1, S1 and T1 denotes
the standard catalog capacitor with no special requirements.
**Mounting stud not available for 1.375” diameter cases.
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 3186
High Capacitance, Aluminum Electrolytic Screw Terminal
Ratings
Cap.
(µF)
Catalog
Part Number
ESR max
Ripple max
120 Hz, 25°C
120 Hz, 85 °C
(mΩ)
potted(A) rilled(A)
16 Volts (20 Volts Surge)
22000 3186BA223T016APA1
39000 3186BC393T016APA1
56000 3186BE563T016APA1
82000 3186EC823T016APA1
120000 3186EE124T016APA1
150000 3186EF154T016APA1
150000 3186EH154T016APA1
220000 3186FE224T016APA1
270000 3186FF274T016APA1
330000 3186FH334T016DPA1
330000 3186GE334T016DPA1
390000 3186GF394T016DPA1
470000 3186GH474T016DPA1
820000 3186GN824T016DPA1
10000003186GN105T016DPA1
18000 3186BA183T025APA1
27000 3186BC273T025APA1
39000 3186BE393T025APA1
68000 3186EC683T025APA1
100000 3186EE104T025APA1
120000 3186EF124T025APA1
150000 3186EH154T025APA1
150000 3186FE154T025APA1
180000 3186FF184T025APA1
220000 3186FH224T025DPA1
220000 3186GE224T025DPA1
270000 3186GF274T025DPA1
330000 3186GH334T025DPA1
560000 3186GN564T025DPA1
10000 3186BA103T040APA1
15000 3186BC153T040APA1
22000 3186BE223T040APA1
39000 3186EC393T040APA1
56000 3186EE563T040APA1
68000 3186EF683T040APA1
82000 3186EH823T040APA1
100000 3186FE104T040APA1
120000 3186FF124T040APA1
150000 3186FH154T040DPA1
150000 3186GE154T040APA1
180000 3186GF184T040DPA1
220000 3186GH224T040DPA1
330000 3186GN334T040DPA1
25.0
18.0
14.0
6.0
5.0
4.0
4.0
4.0
4.0
3.0
4.0
3.0
3.0
3.0
3.0
25.0
18.0
14.0
6.0
5.0
4.0
4.0
4.0
4.0
3.0
4.0
3.0
3.0
3.0
33.0
19.0
14.0
7.0
6.0
5.0
5.0
5.0
4.0
4.0
4.0
4.0
3.0
3.0
4.7
6.8
8.8
15.6
18.6
20.7
22.8
23.8
25.7
30.6
28.1
30.9
35.6
46.4
46.4
4.7
6.7
8.1
15.6
18.6
20.7
23.7
23.8
25.7
27.9
28.1
30.9
33.8
46.4
4.2
6.6
8.5
13.7
16.8
18.9
21.0
21.2
23.9
27.9
25.5
30.9
32.9
46.4
5.4
7.6
9.7
17.0
21.0
23.0
25.0
27.0
29.0
34.0
32.0
35.0
40.0
50.0
50.0
5.4
7.5
9.0
17.0
21.0
23.0
26.0
27.0
29.0
31.0
32.0
35.0
38.0
50.0
4.8
7.4
9.4
15.0
19.0
21.0
23.0
24.0
27.0
31.0
29.0
35.0
37.0
50.0
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
Case Size
DxL
(in)
Cap.
(µF)
Catalog
Part Number
ESR max
Ripple max
120 Hz, 25°C
120 Hz, 85 °C
(mΩ)
potted(A) rilled(A)
50 Volts (63 Volts Surge)
8200 3186BA822T050APA1
12000 3186BC123T050APA1
18000 3186BE183T050APA1
27000 3186EC273T050APA1
47000 3186EE473T050APA1
56000 3186EF563T050APA1
68000 3186EH683T050APA1
68000 3186FE683T050APA1
82000 3186FF823T050APA1
100000 3186FH104T050APA1
100000 3186GE104T050APA1
120000 3186GF124T050APA1
150000 3186GH154T050DPA1
220000 3186GN224T050DPA1
4700 3186BA472T063APA1
8200 3186BC822T063APA1
12000 3186BE123T063APA1
18000 3186EC183T063APA1
27000 3186EE273T063APA1
33000 3186EF333T063APA1
39000 3186EH393T063APA1
47000 3186FE473T063APA1
56000 3186FF563T063APA1
68000 3186FH683T063APA1
68000 3186GE683T063APA1
82000 3186GF823T063APA1
100000 3186GH104T063DPA1
150000 3186GN154T063DPA1
3900 3186BA392T075APA1
6800 3186BC682T075APA1
10000 3186BE103T075APA1
15000 3186EC153T075APA1
22000 3186EE223T075APA1
27000 3186EF273T075APA1
33000 3186EH333T075APA1
33000 3186FE333T075APA1
39000 3186FF393T075APA1
56000 3186FH563T075APA1
47000 3186GE473T075APA1
56000 3186GF563T075APA1
82000 3186GH823T075APA1
120000 3186GN124T075DPA1
41.0
28.0
21.0
15.0
11.0
10.0
9.0
8.0
7.0
6.0
6.0
6.0
5.0
4.0
42.0
28.0
21.0
15.0
11.0
10.0
9.0
8.0
7.0
6.0
6.0
6.0
5.0
4.0
43.0
29.0
21.0
15.0
11.0
10.0
9.0
8.0
7.0
6.0
7.0
6.0
5.0
4.0
3.7
5.4
7.1
9.2
11.5
13.5
15.5
15.9
17.7
21.6
20.2
22.1
26.7
37.1
3.7
5.4
7.2
9.2
11.5
13.5
14.6
15.9
17.7
21.6
20.2
22.1
26.7
37.1
3.6
5.3
7.1
9.2
11.5
13.5
15.5
15.9
17.7
20.7
20.2
22.1
25.8
37.1
4.2
6.0
7.8
10.0
13.0
15.0
17.0
18.0
20.0
24.0
23.0
25.0
30.0
40.0
4.2
6.0
8.0
10.0
13.0
15.0
16.0
18.0
20.0
24.0
23.0
25.0
30.0
40.0
4.1
5.9
7.8
10.0
13.0
15.0
17.0
18.0
20.0
23.0
23.0
25.0
29.0
40.0
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
Case Size
DxL
(in)
63 Volts (75 Volts Surge)
25 Volts (30 Volts Surge)
75 Volts (95 Volts Surge)
40 Volts (50 Volts Surge)
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
Type 3186
High Capacitance, Aluminum Electrolytic Screw Terminal
Cap.
(µF)
Catalog
Part Number
ESR max
Ripple max
120 Hz, 25°C
120 Hz, 85 °C
(mΩ)
potted(A) rilled(A)
100 Volts (125 Volts Surge)
2700 3186BA272T100APA1
3900 3186BC392T100APA1
5600 3186BE562T100APA1
10000 3186EC103T100APA1
15000 3186EE153T100APA1
18000 3186EF183T100APA1
22000 3186EH223T100APA1
22000 3186FE223T100APA1
27000 3186FF273T100APA1
33000 3186FH333T100APA1
33000 3186GE333T100APA1
39000 3186GF393T100APA1
56000 3186GH563T100DPA1
82000 3186GN823T100DPA1
1000 3186BA102T200APA1
1500 3186BC152T200APA1
2200 3186BE222T200APA1
3900 3186EC392T200APA1
5600 3186EE562T200APA1
6800 3186EF682T200APA1
8200 3186EH822T200APA1
10000 3186FE103T200APA1
12000 3186FF123T200APA1
15000 3186FH153T200APA1
12000 3186GE123T200APA1
15000 3186GF153T200APA1
22000 3186GH223T200APA1
33000 3186GN333T200APA1
680
3186BA681T250APA1
65.0
50.0
32.0
52.0
37.0
27.0
11.0
19.0
16.0
14.0
14.0
11.0
8.0
7.0
109.0
77.0
52.0
73.0
24.0
21.0
17.0
22.0
17.0
16.0
26.0
23.0
17.0
15.0
120.0
76.0
53.0
67.0
27.0
23.0
20.0
24.0
19.0
17.0
25.0
22.0
19.0
16.0
270.0
163.0
2.9
3.8
5.3
5.0
6.5
8.1
13.7
9.7
11.5
12.6
12.3
15.0
19.6
23.2
2.3
3.0
4.2
4.4
7.6
8.9
11.0
9.7
10.6
12.6
9.7
10.6
13.4
15.8
2.3
2.3
4.4
4.0
7.0
8.1
9.1
8.8
9.7
12.6
9.7
10.6
12.5
15.8
1.1
2.2
3.3
4.3
5.9
5.5
7.3
9.0
15.0
11.0
13.0
14.0
14.0
17.0
22.0
25.0
2.6
3.4
4.6
4.8
8.6
9.9
12.0
11.0
12.0
14.0
11.0
12.0
15.0
17.0
2.6
2.6
4.9
4.4
7.9
9.0
10.0
10.0
11.0
14.0
11.0
12.0
14.0
17.0
1.3
2.5
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
820
220
390
560
820
330
560
820
Case Size
DxL
(in)
Cap.
(µF)
Catalog
Part Number
ESR max
Ripple max
120 Hz, 25°C
120 Hz, 85 °C
(mΩ)
potted(A) rilled(A)
350 Volts (400 Volts Surge)
1000 3186BE102T350APA1
1500 3186EC152T350APA1
2200 3186EE222T350APA1
2700 3186EF272T350APA1
3300 3186EH332T350APA1
2700 3186FE272T350APA1
3900 3186FF392T350APA1
4700 3186FH472T350APA1
4700 3186GE472T350APA1
5600 3186GF562T350APA1
6800 3186GH682T350APA1
12000 3186GN123T350APA1
3186BA331T400APA1
3186BC561T400APA1
3186BE821T400APA1
112.0
105.0
55.0
44.0
37.0
54.0
37.0
33.0
33.0
33.0
28.0
18.0
290.0
190.0
129.0
95.0
59.0
50.0
39.0
48.0
39.0
37.0
37.0
34.0
28.0
18.0
430.0
310.0
180.0
145.0
85.0
71.0
60.0
53.0
45.0
35.0
35.0
36.0
31.0
23.0
132.0
90.0
59.0
43.0
3.0
3.6
5.0
6.3
7.3
5.8
7.7
8.6
8.4
8.8
9.8
16.7
1.1
1.9
2.7
3.4
4.9
5.7
7.2
6.4
7.5
8.5
8.3
8.8
9.8
16.7
0.9
1.6
2.4
2.7
4.1
4.8
5.4
5.9
6.8
8.6
8.3
8.7
9.8
13.0
3.0
4.1
5.9
7.7
3.30
3.90
5.60
7.00
8.00
6.60
8.70
9.60
9.60
10.00
11.00
18.00
1.3
2.1
3.0
3.7
5.5
6.4
7.9
7.3
8.5
9.4
9.4
10.0
11.0
18.0
1.0
1.8
2.6
3.0
4.6
5.3
5.9
6.7
7.7
9.5
9.5
9.8
11.0
14.0
3.4
4.6
6.6
8.6
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
1.375 X 2.125
1.375 X 3.125
1.375 X 4.125
2.00 X 3.125
2.00 X 4.125
2.00 X 4.625
2.00 X 5.625
2.50 X 4.125
2.50 X 4.625
2.50 X 5.625
3.00 X 4.125
3.00 X 4.625
3.00 X 5.625
3.00 X 8.625
2.00 X 4.125
2.00 X 5.125
2.50 X 5.125
3.00 X 5.625
Case Size
DxL
(in)
400 Volts (450 Volts Surge)
200 Volts (250 Volts Surge)
1200 3186EC122T400APA1
1800 3186EE182T400APA1
2200 3186EF222T400APA1
2700 3186EH272T400APA1
2700 3186FE272T400APA1
3300 3186FF332T400APA1
3900 3186FH392T400APA1
3900 3186GE392T400APA1
4700 3186GF472T400APA1
5600 3186GH562T400APA1
10000 3186GN103T400APA1
3186BA221T450APA1
3186BC391T450APA1
3186BE561T450APA1
3186EC821T450APA1
450 Volts (525 Volts Surge)
250 Volts (300 Volts Surge)
1200 3186BC122T250APA1
1800 3186BE182T250APA1
2700 3186EC272T250APA1
3900 3186EE392T250APA1
4700 3186EF472T250APA1
5600 3186EH562T250APA1
6800 3186FE682T250APA1
8200 3186FF822T250APA1
10000 3186FH103T250APA1
10000 3186GE103T250APA1
12000 3186GF123T250APA1
15000 3186GH153T250APA1
22000 3186GN223T250APA1
390
680
3186BA391T350APA1
3186BC681T350APA1
1200 3186EE122T450APA1
1500 3186EF152T450APA1
1800 3186EH182T450APA1
2200 3186FE222T450APA1
2700 3186FF272T450APA1
3300 3186FH332T450APA1
3300 3186GE332T450APA1
3900 3186GF392T450APA1
4700 3186GH472T450APA1
8200 3186GN822T450APA1
3186EE821T500APA1
500 Volts (550Volts Surge)
1200 3186EG122T500APA1
2200 3186FG222T500APA1
3300 3186GH332T500APA1
350 Volts (400 Volts Surge)
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
京公网安备 11010802033920号
EEWORLD
