3112-16: DescriptionCommon Mode Line Filters; File Size91KB，1 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Compare View All

3112-16 Overview

Common Mode Line Filters

Preview

Download Datasheet

View All

Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998 FAX: (805) 522-9989

E-mail: frontiersales@frontierusa.com

Web: frontierusa.com

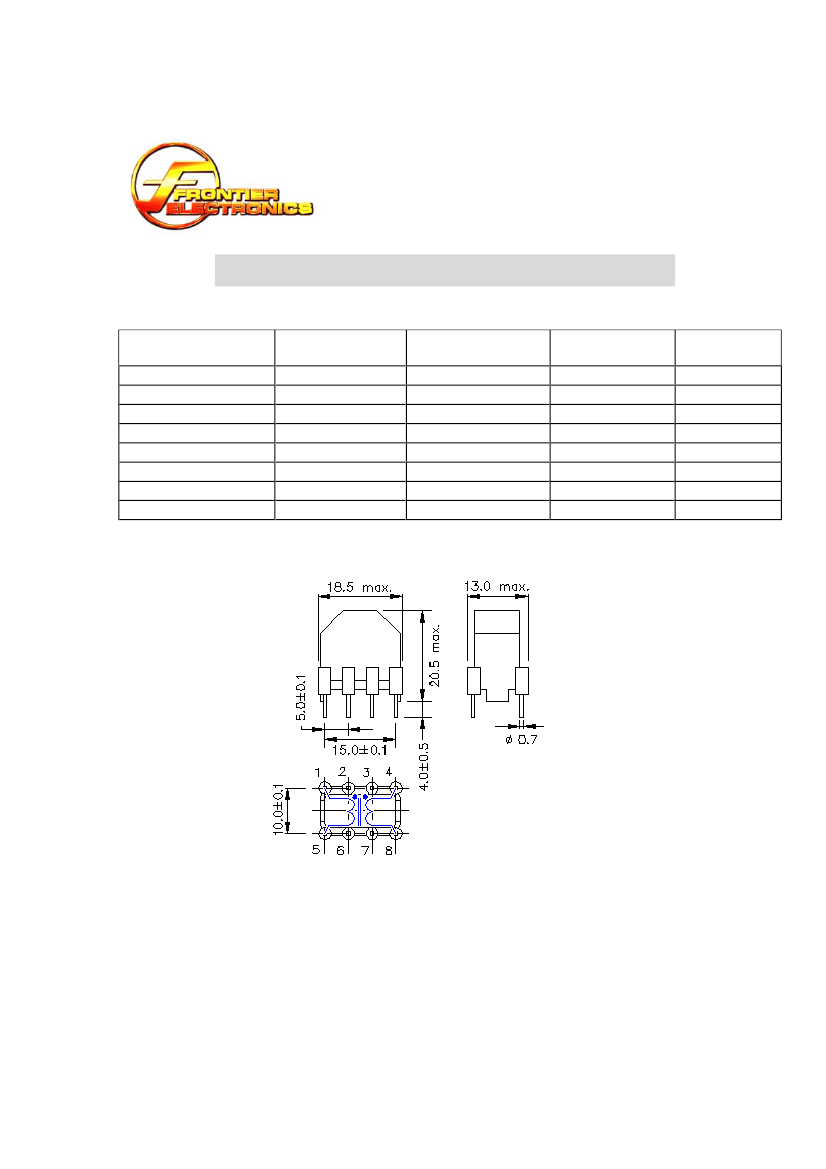

Common Mode Line Filters—

3112 series

A. Specifications:

Part

Number

3112-11

3112-12

3112-13

3112-14

3112-15

3112-16

3112-17

3112-18

Inductance

(uH)

2 x 0.4

2 x 1.0

2 x 3.3

2 x 6.8

2 x 10

2 x 15

2 x 27

2 x 39

/ L1-L2/

(uH) Max.

0.04

0.10

0.33

0.68

1.00

1.50

2.70

3.90

DCR

(OHMS) Max.

0.06

0.10

0.17

0.28

0.55

0.83

1.80

1.90

Rated Current

(A) RMS.

2.6

2.0

1.5

1.2

0.7

0.5

0.4

Original P/N is

3110122-series.

(All the spec remains the same, except Frontier reassign the P/N and change to 3112-series.)

Mechanical Dimensions:

C. General information:

Test Condition: 1.0KHz / 1V.

Electrical specifications at 25ºC.

Temperature Rise: 40ºC.

Operating temperature: -20ºC TO +105ºC.

Insulation Resistance: 100M OHMS at 500VDC.

Rated Voltage: 100V to 270V / 50-60 Hz.

Hi-Pot Voltage: 1500VAC for one minute.

8. For

“LEAD FREE” / “RoHS”

parts, we add “-LF” / “-LFR” after the part number.

Custom specifications are available.

Common Mode Line Filter P/N: 3112 Series

Jan, 05, 2006 Page 1 of 1
