SFW25R-4STE1 datasheet, PDF - EEWORLD Datasheet

SFW25R-4STE1: DescriptionCard Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator,; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

SFW25R-4STE1 Overview

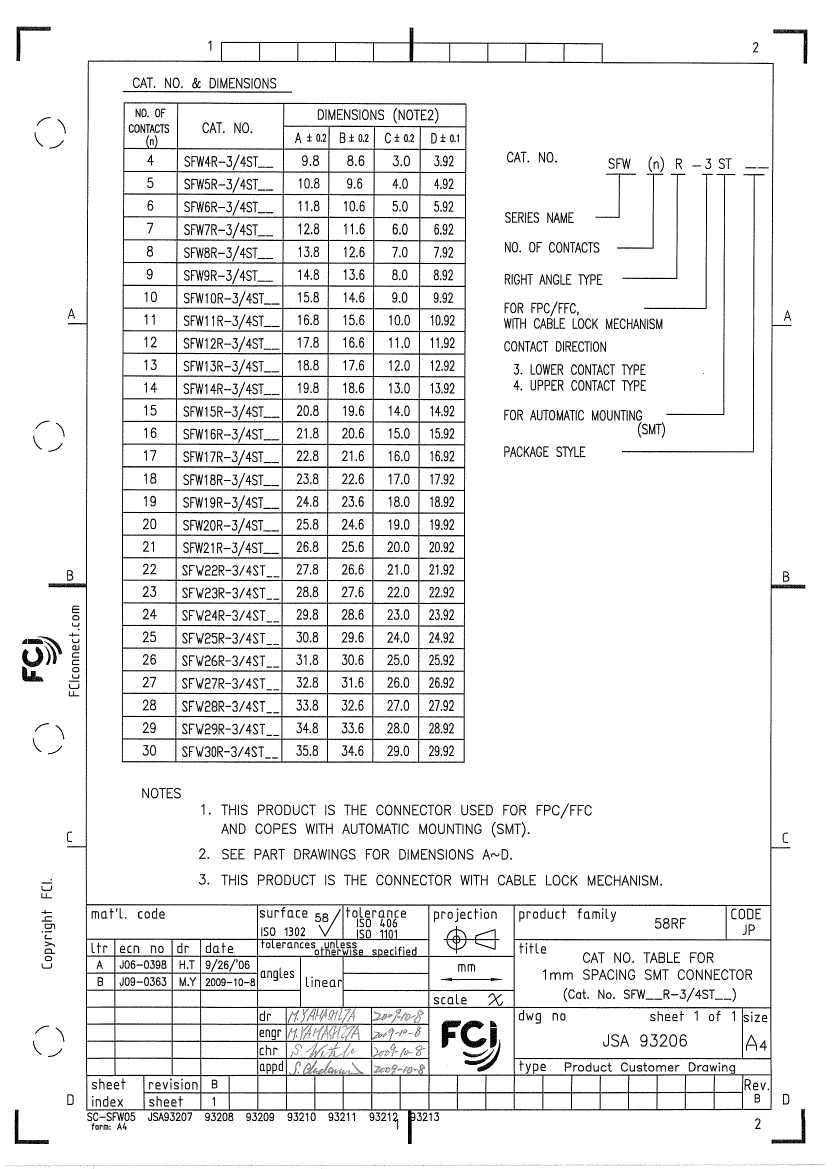

Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator,

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIDE ENTRY
Board mount options	SOLDER HOLDING FLANGE
body width	0.106 inch
subject depth	0.217 inch
body length	1.213 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN LEAD (39)
Contact completed and terminated	TIN LEAD (39)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

PDM: Rev:B

STATUS:

Released

Printed: Nov 12, 2010
