LH5464-NRE7500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LH5464-NRE7500

LH5464-NRE7500: DescriptionSingle Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm; CategoryLED optoelectronic/LED photoelectric; File Size103KB，1 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

LH5464-NRE7500 Overview

Single Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm

LH5464-NRE7500 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	HYPER RED
Configuration	SINGLE
Maximum forward current	0.04 A
Lens type	RED DIFFUSED
Nominal luminous intensity	112.5 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	TAPE AND REEL
peak wavelength	660 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	35 deg
Base Number Matches	1

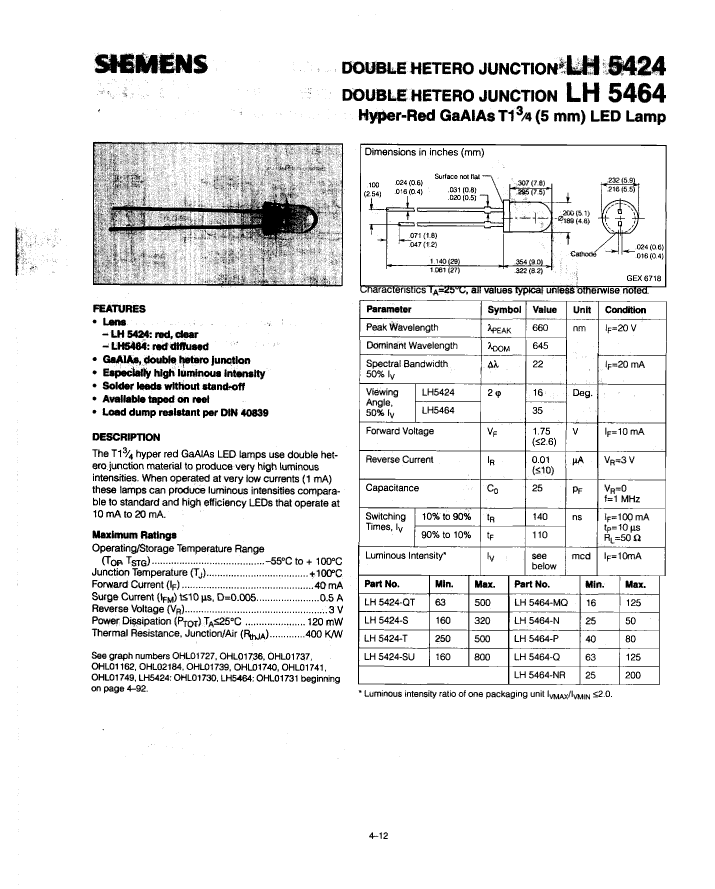

Preview

Download Datasheet

View All

LH5464-NRE7500 Related Products

	LH5464-NRE7500	LH5464-PE7500	LH5464-MQE7500	LH5464-QE7500	LH5424-QTE7500	LH5464-NE7500
Description	Single Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm	Single Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm	Single Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm	Single Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm	Single Color LED, Hyper Red, Red Clear, T-1 3/4, 5mm	Single Color LED, Hyper Red, Red Diffused, T-1 3/4, 5mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED	HYPER RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Lens type	RED DIFFUSED	RED DIFFUSED	RED DIFFUSED	RED DIFFUSED	RED CLEAR	RED DIFFUSED
Nominal luminous intensity	112.5 mcd	60 mcd	70.5 mcd	94 mcd	281.5 mcd	37.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	660 nm	660 nm	660 nm	660 nm	660 nm	660 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	35 deg	35 deg	35 deg	35 deg	16 deg	35 deg
Maker	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
