LO5411-RU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LO5411-RU

LO5411-RU: DescriptionT-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm; CategoryLED optoelectronic/LED photoelectric; File Size99KB，10 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric Compare View All

LO5411-RU Overview

T-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm

LO5411-RU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
color	ORANGE
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.04 A
Maximum forward voltage	2.6 V
JESD-609 code	e0
Lens type	CLEAR
Nominal luminous intensity	411.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	610 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

5 mm (T1 ¾) LED, Non Diffused

Super-Bright LED

LS 5421, LO 5411, LY 5421, LG 5411

Nicht für Neuentwicklungen / Not for New Designs

Besondere Merkmale

•

Gehäusetyp:

klares 5 mm (T1 ¾) Gehäuse,

eingefärbt (super-rot und gelb), nicht

eingefärbt (orange und grün)

•

Besonderheit des Bauteils:

enge

Abstrahlcharakteristik

•

Wellenlänge:

628 nm (super-rot),

606 nm (orange), 587 nm (gelb), 570 nm (grün)

•

Abstrahlwinkel:

engwinklig (20°)

•

Technologie:

GaAlP

•

optischer Wirkungsgrad:

1,5 lm/W (super-rot,

orange, gelb), 2,5 lm/W (grün)

•

Gruppierungsparameter:

Lichtstärke

•

Lötmethode:

Wellenlöten (TTW)

•

Verpackung:

Schüttgut, gegurtet lieferbar

Anwendungen

• optischer Indikator

• Hinterleuchtung (LCD, Schalter, Tasten,

Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Tastenhinterleuchtung, u.ä.)

• Ersatz von Kleinst-Glühlampen

Features

•

package:

clear 5 mm (T1 ¾) package, colored

(super-red and yellow), colorless (orange and

green)

•

feature of the device:

narrow viewing angle

•

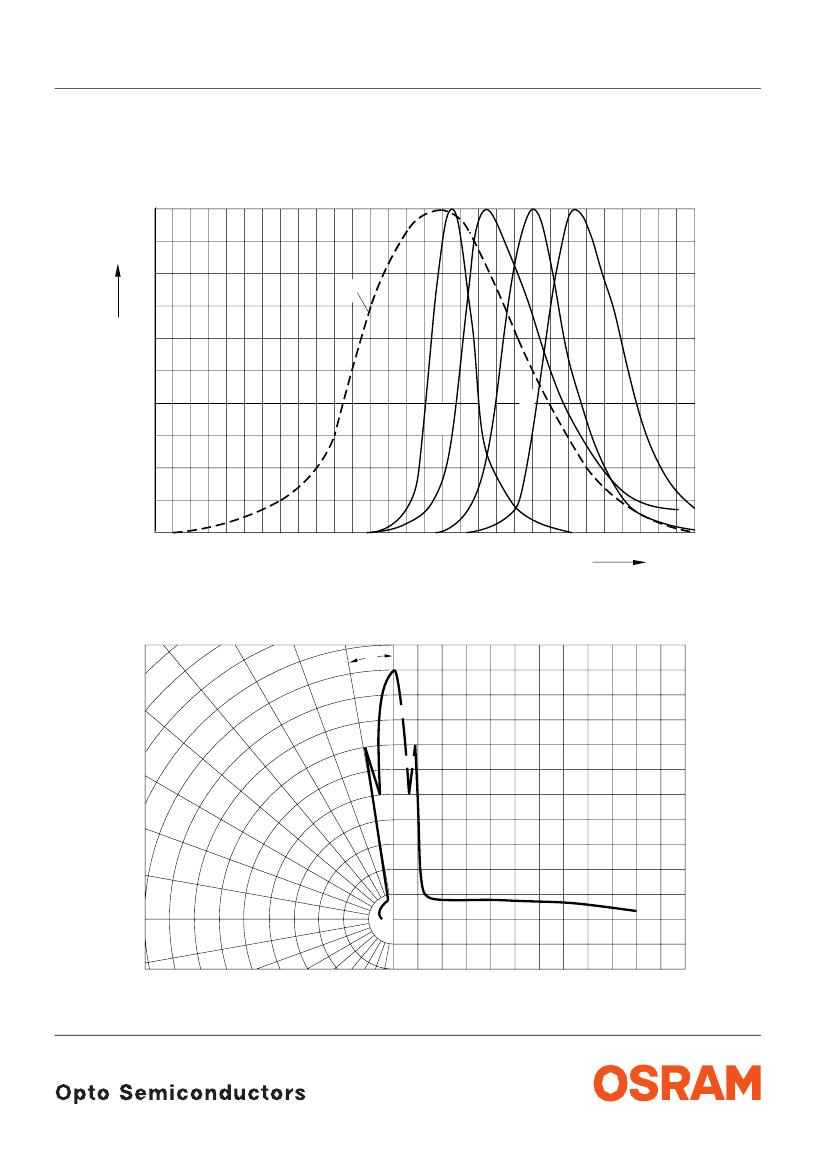

wavelength:

628 nm (super-red),

606 nm (orange), 587 nm (yellow),

570 nm (green)

•

viewing angle:

narrow (20°)

•

technology:

GaAlP

•

optical efficiency:

1.5 lm/W (super-red,

orange, yellow), 2.5 lm/W (green)

•

grouping parameter:

luminous intensity

•

soldering methods:

TTW soldering

•

packing:

bulk, available taped on reel

Applications

• optical indicators

• backlighting (LCD, switches, keys, displays,

illuminated advertising, general lighting)

• interior automotive lighting. (e.g. key

backlighting, etc.)

• substitution of micro incandescent lamps

2002-04-03

LO5411-RU Related Products

	LO5411-RU	LG5411-S	LS5421-NR	LS5421-QT	LS5421-R
Description	T-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, GREEN, 5 mm	T-1 3/4 SINGLE COLOR LED, SUPER RED, 5 mm, LEAD FREE PACKAGE-2	T-1 3/4 SINGLE COLOR LED, SUPER RED, 5 mm, LEAD FREE PACKAGE-2	T-1 3/4 SINGLE COLOR LED, SUPER RED, 5 mm, LEAD FREE PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
color	ORANGE	GREEN	SUPER RED	SUPER RED	SUPER RED
color@wavelength	Amber	Green	Red	Red	Amber
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Maximum forward voltage	2.6 V	2 V	3 V	3 V	2.6 V
Lens type	CLEAR	CLEAR	CLEAR RED	CLEAR RED	CLEAR RED
Nominal luminous intensity	411.0 mcd	230.0 mcd	104.0 mcd	260.5 mcd	146.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	610 nm	572 nm	635 nm	635 nm	635 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	20 deg	20 deg	20 deg	20 deg	20 deg
Maximum reverse voltage	5 V	5 V	5 V	5 V	-
Maker	-	-	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor
package instruction	-	-	LEAD FREE PACKAGE-2	LEAD FREE PACKAGE-2	LEAD FREE PACKAGE-2
