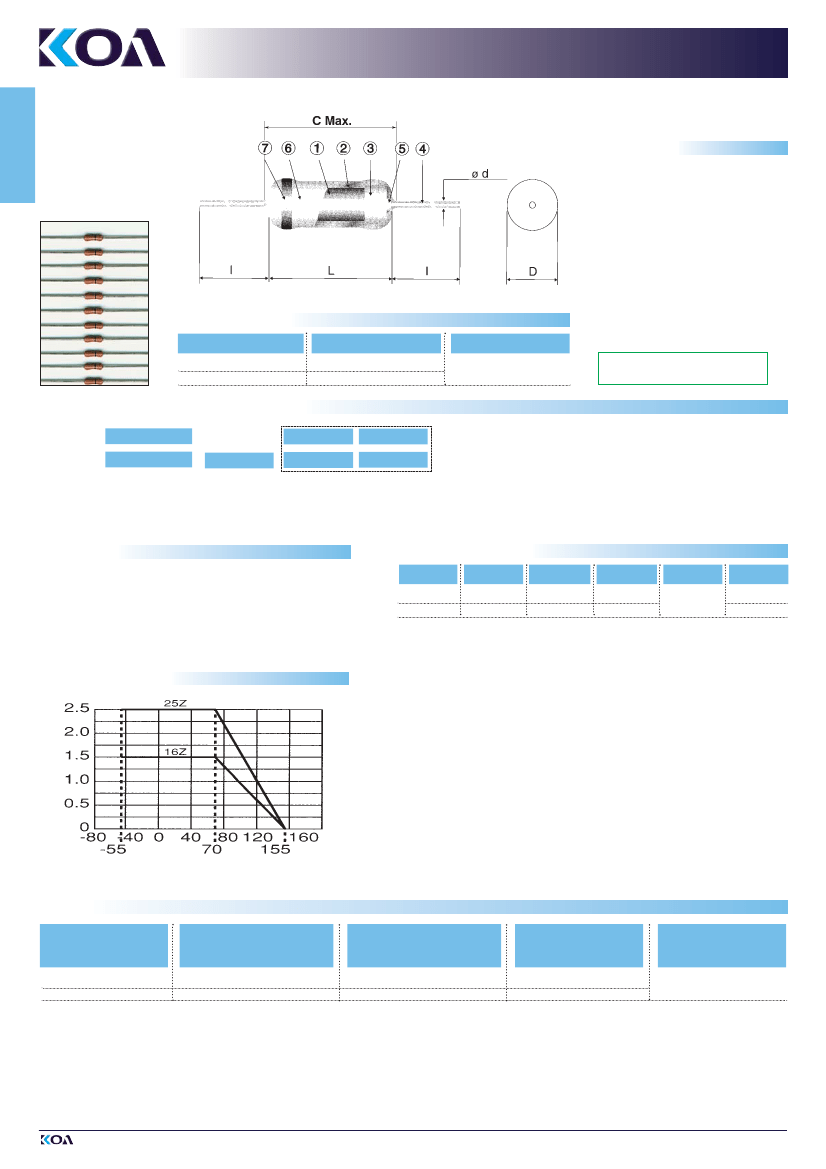

RESISTORS
TECHNOLOGY OF TOMORROW
RESISTORS
ZERO OHM
COAT INSULATED
Z
STRUCTURE
1
2
3
4
5
6
7
Ceramic core
Conductive film
Steel cap
(Cu, Sn plated)
Lead wire
Welding joint
Epoxy overcoating
Marking
IDENTIFICATION
PRODUCT CODE
Z 16
Z 25
COATING COLOR
Ivory
Venetian Red
MARKING
One black
band
Products with Pb-free terminations
meet RoHS requirements
TYPE DESIGNATION (HOW TO ORDER)
*
Old Part No.
New Part No.
(Pb-free)
16Z
Z16
PRODUCT CODE
C
TERMINATION
SURFACE
MATERIAL
C: SnCu
L: Sn/Pb
T26
T26
TAPING &
FORMING
A
A
PACKAGING
A: Ammo
R: Reel
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
*Please see “PACKAGING”
FEATURES
■
Zero Ohm resistors in the identical shape of the CFS1/4
and the CF1/4 series
■
Automatic insertion is applicable
■
Rated ambient temperature: +70°C
■
Operating temperature range: -55°C... +155°C
DIMENSIONS
TYPE
Z 16
Z 25
L
3.2 ± 0.2
6.1 ± 0.5
C Max.
3.4
7.1
D
1.7
+ 0.2
- 0.1
2.3 ± 0.3
l Min.
20
d(nominal)
0.45
0.6
DERATING CURVE
Ambient temperature (°C)
RATING
DIN SIZE
0204
0207
TYPE
Z 16
Z 25
MAX. ALLOWABLE
CURRENT*
1.5 A
2.5 A
DIELECTRIC
WITHSTANDING
VOLTAGE
300 V
500 V
RESISTANCE
Less than 20mΩ
*For resistors operated in ambient temperature over +70° C, power rating shall be derated like shown in above “DERATING CURVE”.
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
Revision: 5. Nov. 2004
