OT-WBSC-Y-A-10-13-9-M-1-99-SA datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> OT-WBSC-Y-A-10-13-9-M-1-99-SA

OT-WBSC-Y-A-10-13-9-M-1-99-SA: DescriptionSplitter/Coupler, 1X2 Port, 10.0 Ratio, SC/APC Connector, Panel Mount; CategoryWireless rf/communication Optical fiber; File Size428KB，2 Pages; ManufacturerOlson Technology Inc

Download Datasheet Parametric View All

OT-WBSC-Y-A-10-13-9-M-1-99-SA Overview

Splitter/Coupler, 1X2 Port, 10.0 Ratio, SC/APC Connector, Panel Mount

OT-WBSC-Y-A-10-13-9-M-1-99-SA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	19 mm
body height	9 mm
Body length or diameter	100 mm
Connection Type	SC/APC CONNECTOR
Fiber optic equipment types	SPLITTER/COUPLER
Fiber type	SMF
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal operating wavelength	1310 nm
Port configuration	1X2
Split ratio/coupling ratio	10.0
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

24926 Highway 108

Sierra Village, CA 95346

Phone: (800) 545-1022

Fax: (209) 586-1026

E-Mail: sales @olsontech.com

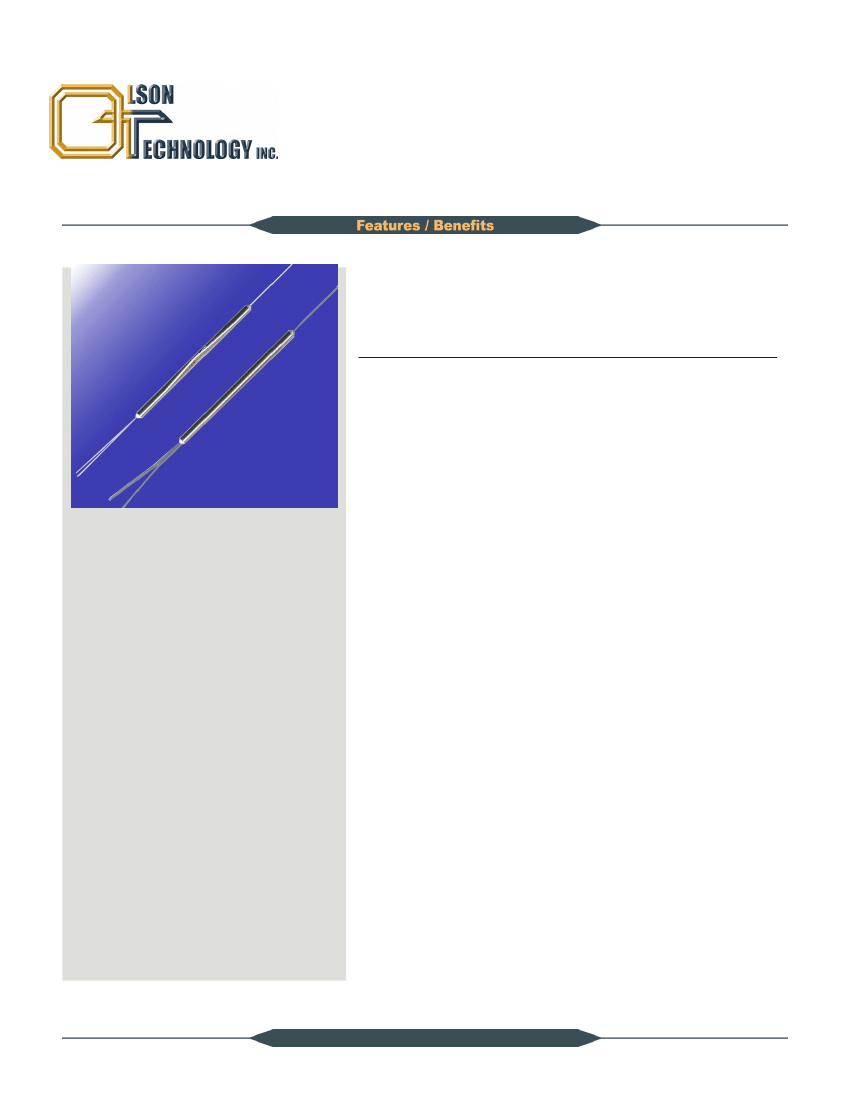

Model OT-WBSC 1 x 2 Dual Window SM Wideband Fiber Coupler

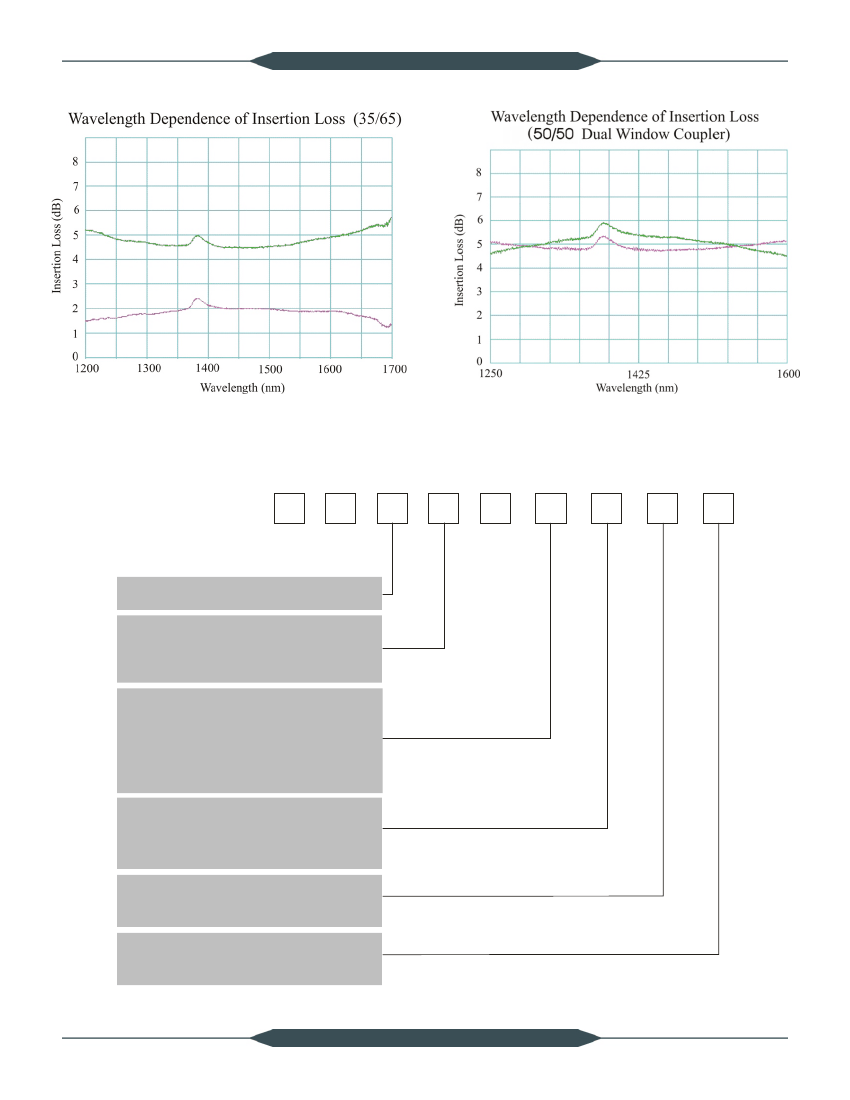

Operating Specifications

Parameter

Center Wavelength (l

)

Bandwidth

Coupling Ratio

Typ. Excess Loss

Max. Polarization Dependent Loss

Min. Directivity

Max. Uniformity

Typ. Flatness

Units

dB/°C

°C

Specification

1310 or 1550

±40

10 to 50

0.15

0.7

0.3

0.002

-40 to +85

F: ø3.5 x 72

(0.9 mm loose tube)

M: 100 x 19 x 9

O: 100 x 80 x 9

L: 120 x 80 x 18

APPLICATIONS

• Fiber to the Home (FTTH)

• Local Loop

• Passive Optical Networks (PON)

• Fiber Optic CATV

• Fiber Communications System

• Fiber Optic Test Equipment

• Fiber Optic Sensing

• Local Area Networks (LAN)

Max. Temp. Coefficient

Operating Temperature

Storage Temperature

Package Dimensions

FEATURES

• All Fiber Construction

• High Reliability

• Outstanding Optical Performance

• Multiple Fiber Types Available

www.olsontech.com
