MTL4N22A MTL4N23A &
MTL4N24A
SINGLE CHANNEL OPTOCOUPLER
Features:
•
•
•
•
•
Overall current gain … 1.5 typical
Base lead provided for conventional transistor
biasing
Rugged package
High gain, high voltage transistor
+1kV electrical isolation
Applications:
•
•
•
•
•
Eliminate ground loops
Level shifting
Line receiver
Switching power supplies
Motor control
DESCRIPTION:
The
MTL4N22A-4A’s
are very high gain optocouplers that utilize a GaAlAs infrared LED optically coupled to an N-P-N silicon
phototransistor packaged in a hermetically sealed TO-5 package. The MTL4N22A, MTL4N23A and MTL4N24A optocouplers can
be supplied to customer specifications as well as tested and screened in accordance with MIL-PRF-19500 to JANTX level.
ABSOLUTE MAXIMUM RATINGS
Input to Output Voltage ...............................................................................................................................................................................+1kV
Emitter-Base Voltage .........................................................................................................................................................................................4V
Collector-Emitter Voltage (Value applies to emitter-base open-circuited & the input-diode equal to zero).................. 35V
Collector-Base Voltage....................................................................................................................................................................................35V
Reverse Input Voltage .....................................................................................................................................................................................2V
Input Diode Continuous Forward Current at (or below) 65°C Free-Air Temperature (see note 1).................................. 40mA
Peak Forward Input Current (Value applies for tw
≤1µs,
PRR < 300 pps) ................................................................................... 1A
Continuous Collector Current ....................................................................................................................................................................50mA
Continuous Transistor Power Dissipation at (or below) 25
°
C Free-Air Temperature (see Note 2).............................. 300mW
Storage Temperature.............................................................................................................................................................. -65°C to +125°C
Operating Free-Air Temperature Range............................................................................................................................-55°C to +100°C
Lead Solder Temperature (10 seconds max.) .................................................................................................................................. 240°C
Notes:
1. Derate linearly to 125°C free-air temperature at the rate of 0.67 mW/°C above 65°C.
2.
Derate linearly to 125°C free-air temperature at the rate of 3 mW/°C.
RECOMMENDED OPERATING CONDITIONS:
PARAMETER
Input Current, Low Level
Input Current, High Level
Supply Voltage
PART NUMBER
MTL4N22A.001X
MTL4N22A.002X
MTL4N22A.003X
MTL4N22A.004X
MTL4N23A.001X
MTL4N23A.002X
MTL4N23A.003X
MTL4N23A.004X
MTL4N24A.001X
MTL4N24A.002X
MTL4N24A.003X
MTL4N24A.004X
SYMBO
L
I
FL
I
FH
V
CE
MIN
0
2
5
MAX
1
10
10
UNITS
µA
mA
V
SELECTION GUIDE
PART DESCRIPTIO
N
°
Single Channel Commercial Optocoupler (0 to +70 C operating temperature range)
°
Single Channel Commercial Optocoupler (-40
°
to +85
°
C operating temperature range)
Single Channel Commercial Optocoupler (-55
°
to 125
°
C operating temperature range)
Single Channel Optocoupler Screened to JANTX level (-55
°
to 125
°
C operating temperature range)
Single Channel Commercial Optocoupler (0
°
to +70
°
C operating temperature range)
Single Channel Commercial Optocoupler (-40
°
to +85
°
C operating temperature range)
Single Channel Commercial Optocoupler (-55
°
to 125
°
C operating temperature range)
Single Channel Optocoupler Screened to JANTX level (-55
°
to 125
°
C operating temperature range)
Single Channel Commercial Optocoupler (0
°
to +70
°
C operating temperature range)
Single Channel Commercial Optocoupler (-40
°
to +85
°
C operating temperature range)
Single Channel Commercial Optocoupler (-55
°
to 125
°
C operating temperature range)
Single Channel Optocoupler Screened to JANTX level (-55
°
to 125
°
C operating temperature range)
NOTE: X at end of part number represents lead finish. Replace with A for gold and S for solder.
MINCO TECHNOLOGY LABS INC
♦1805
Rutherford Lane Austin TX 78754♦TEL: 512 834 2022♦FAX: 512 837 6285
MTL4N22A, MTL4N23A & MTL4N24A
ELECTRICAL CHARACTERISTICS
T
A
= 25
°
C unless otherwise specified.
SINGLE CHANNEL OPTOCOUPLER
PARAMETER
Input Diode Static Reverse Current
Input Diode Static Forward Voltage
Input Diode Static Forward Voltage
Input Diode Static Forward Voltage
-55 C
+25
°
C
+100
°
C
°
SYMBOL
I
R
V
F
V
F
V
F
MIN
1.0
0.8
0.7
TYP
MAX
100
1.5
1.3
1.2
UNITS
µA
V
V
V
TEST CONDITIONS
V
R
= 2V
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
NOTE
OUTPUT TRANSISTOR
PARAMETER
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Off-State Collector Current
+25°C
+100 C
°
SYMBOL
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
C(OFF)
I
C(OFF)
MIN
35
35
4
TYP
MAX
UNITS
V
V
V
TEST CONDITIONS
I
C
= 100µA, I
B
= 0, I
F
= 0
I
C
= 1mA, I
B
= 0, I
F
= 0
I
C
= 0mA, I
E
= 100µA, I
F
= 0
V
CE
= 20V, I
F
= 0mA, I
B
= 0
V
CE
= 20V, I
F
= 0mA, I
B
= 0
NOTE
100
100
nA
µA
COUPLED CHARACTERISTICS
PARAMETER
On State Collector Current
MTL4N22A
MTL4N23A
MTL4N24A
On State Collector Current
MTL4N22A
MTL4N23A
MTL4N24A
On State Collector Current -55
°
C
& +100 C
Collector-Emitter Saturation Voltage
°
SYMBOL
I
C(ON)
I
C(ON)
MIN
0.15
0.2
0.4
2.5
6
10
TYP
MAX
UNITS
mA
TEST CONDITIONS
V
CE
= 5V, I
F
= 2mA
NOTE
mA
V
CE
= 5V, I
F
= 10mA
MTL4N22A
MTL4N23A
MTL4N24A
MTL4N22A
MTL4N23A
MTL4N24A
I
C(ON)
1
2.5
4
mA
0.3
0.3
0.3
10
11
V
CE
= 5V, I
F
= 10mA
I
F
= 20mA, I
C
= 2.5mA, I
B
= 0
I
F
= 20mA, I
C
= 5mA, I
B
= 0
I
F
= 20mA, I
C
= 10mA, I
B
= 0
V
IN-OUT
= 1kV
1
1
V
CE(SAT)
V
CE(SAT)
V
CE(SAT)
R
IO
C
IO
V
V
V
Input to Output Internal Resistance
Input to Output Capacitance
Rise Time-Phototransistor Operation
MTL4N22A
MTL4N23A
MTL4N24A
Fall Time-Phototransistor Operation
MTL4N22A
MTL4N23A
MTL4N24A
NOTES:
1.
5
15
15
20
pF
µs
f = 1MHz, V
IN-OUT
= 0kV
V
CC
= 10V, I
F
= 10mA,
R
L
= 100Ω,
t
r
t
f
15
15
20
µs
V
CC
= 10V, I
F
= 10mA,
R
L
= 100Ω,
These parameters are measured between all phototransistor leads shorted together and with both input diode leads shorted together.

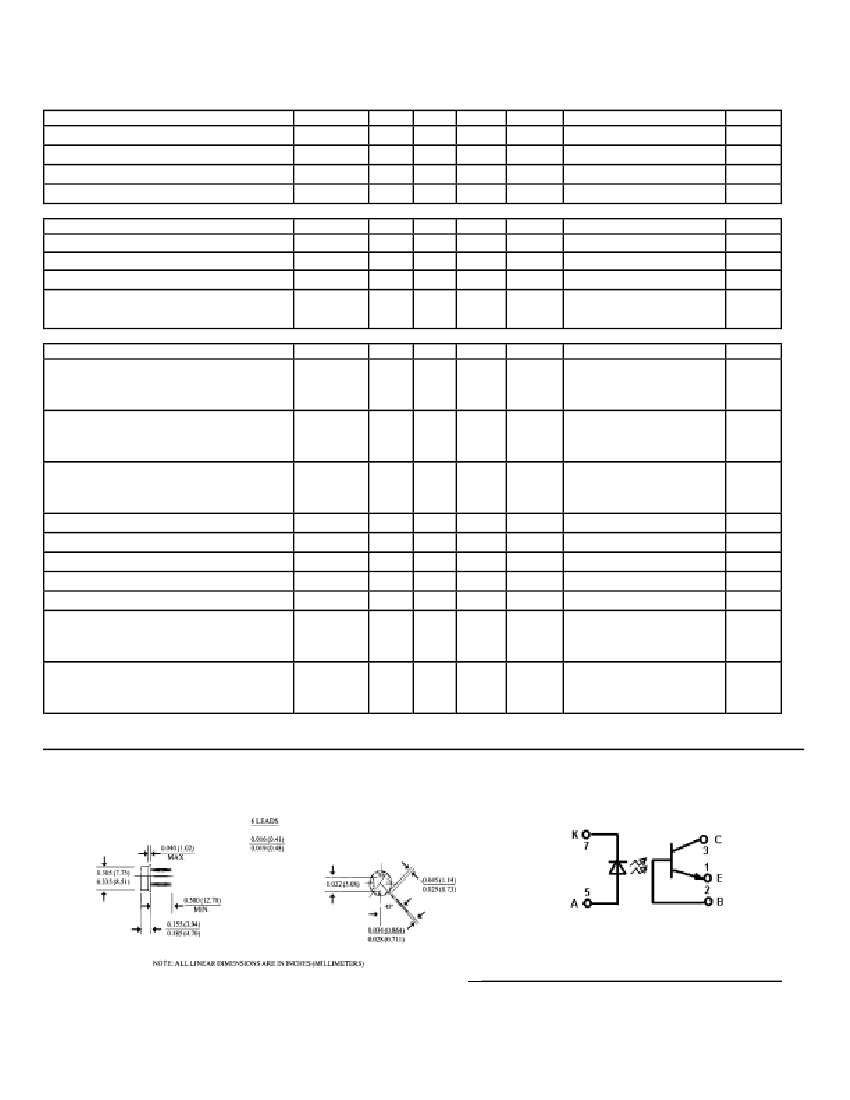

Package Dimensions
Schematic Diagram
