J1/6ZCT52A: DescriptionFixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size218KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

J1/6ZCT52A Overview

Fixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED

J1/6ZCT52A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	AXIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED CURRENT: 8A
structure	Molded
JESD-609 code	e2
Lead diameter	0.5 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	1.7 mm
Package length	3.4 mm
Package form	Axial
method of packing	Ammo Pack
Rated temperature	70 °C
resistance
Resistor type	FIXED RESISTOR
surface mount	NO
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Z

,

J

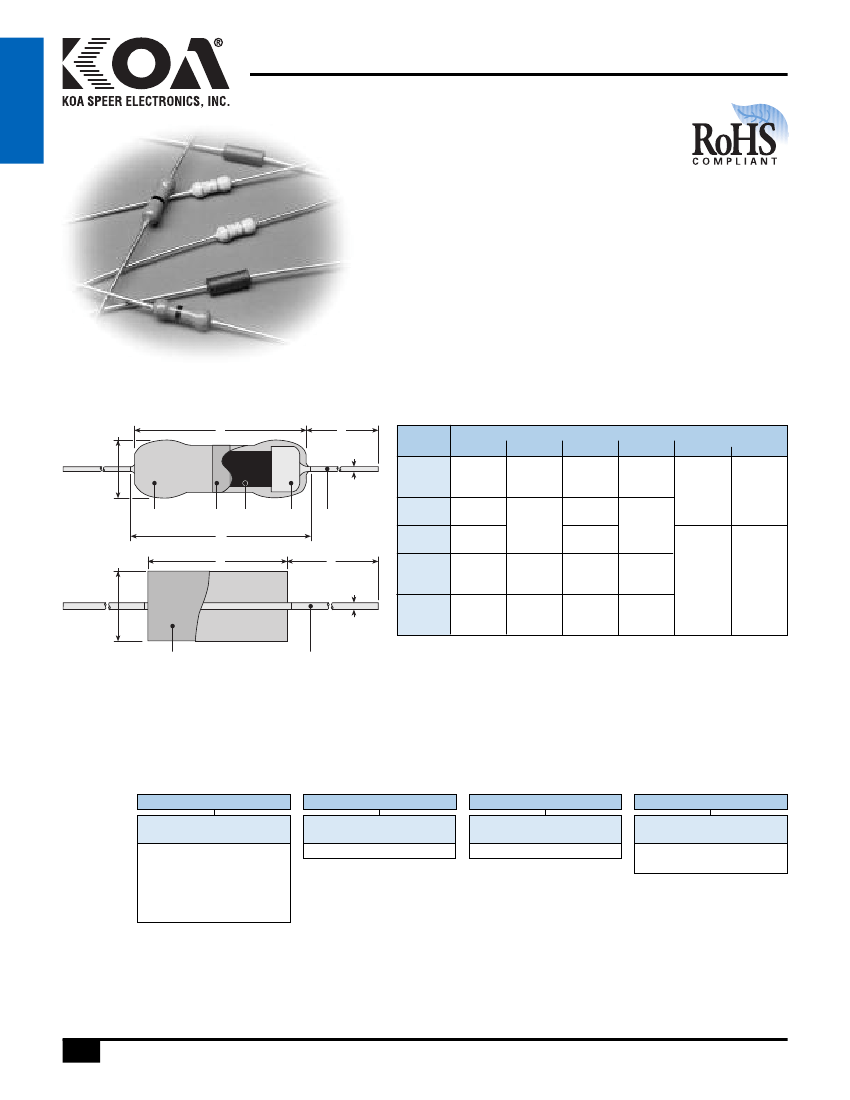

zero ohm jumpers

resistors

EU

features

•

Type Z are conformal coated

Type J are molded

Suitable for automatic machine insertion

Size compatible with 1/8, 1/4 and 1/2 watt resistors

Marking: Type Z are tan color, single black band identifier

Type J are black, no marking

•

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

dimensions and construction

Type Z

D

L

l

d

Type

Z16

Z25

Z25Y

L (ref.)

1

Dimensions

inches

(mm)

l

1

C (max.)

D

d (nom.) Standard

.134

(3.4)

.280

(7.1)

.067

+.008

-.004

+0.2

)

(1.7

-0.1

.091±.012

(2.3±0.3)

.087±.004

(2.2±0.1)

.067±.008

(1.7±0.2)

.091

+0

-.012

(2.3

+0

)

-0.3

.018

(0.45)

.024

(0.6)

.020

(0.5)

.024

(0.6)

2

Long

3

.126±.008

(3.2±0.2)

.240±.02

(6.1±0.5)

.228

(5.8)

.134

+.004

-.008

(3.4

+0.1

)

-0.2

.256±.02

(6.5±0.5)

.551 Min. .787 Min.

(14.0 Min.) (20.0 Min.)

Insulation Marking Resistive End

Coating

Cap

Film

C

Type J

D

L

Lead

Wire

l

J1/6Z

d

––

1.18±.118

(30.0±3.0)

––

J1/4Z

1

––

Molded Resin

Solder Plated

Copper Wire

2

3

Lead length changes depending on taping and forming type.

Forming code S is applied for bulk type.

Long type is custom-made.

ordering information

New Part #

Z16

Type

Z16

Z25

Z25Y

J1/4Z

J1/6Z

C

Termination Material

C: SnCu

T52

Taping and Forming

T26, T52

A

Packaging

A: Ammo

R: Reel

For further information on packaging,

please refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/18/12

114

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

J1/6ZCT52A Related Products

	J1/6ZCT52A	J1/6ZCT26A	J1/6ZCT26R	J1/4ZCT26A	J1/4ZCT52A
Description	Fixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED	Fixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED	Fixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT	Fixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED	Fixed Resistor, 0ohm, Through Hole Mount, AXIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	AXIAL LEADED	AXIAL LEADED	,	AXIAL LEADED	AXIAL LEADED
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RATED CURRENT: 8A	RATED CURRENT: 8A	RATED CURRENT : 8A	RATED CURRENT: 10A	RATED CURRENT: 10A
JESD-609 code	e2	e2	e2	e2	e2
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	Ammo Pack	Ammo Pack	TR	Ammo Pack	Ammo Pack
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	1	1
structure	Molded	Molded	-	Molded	Molded
Lead diameter	0.5 mm	0.5 mm	-	0.6 mm	0.6 mm
Package diameter	1.7 mm	1.7 mm	-	2.3 mm	2.3 mm
Package length	3.4 mm	3.4 mm	-	6.5 mm	6.5 mm
Package form	Axial	Axial	-	Axial	Axial
