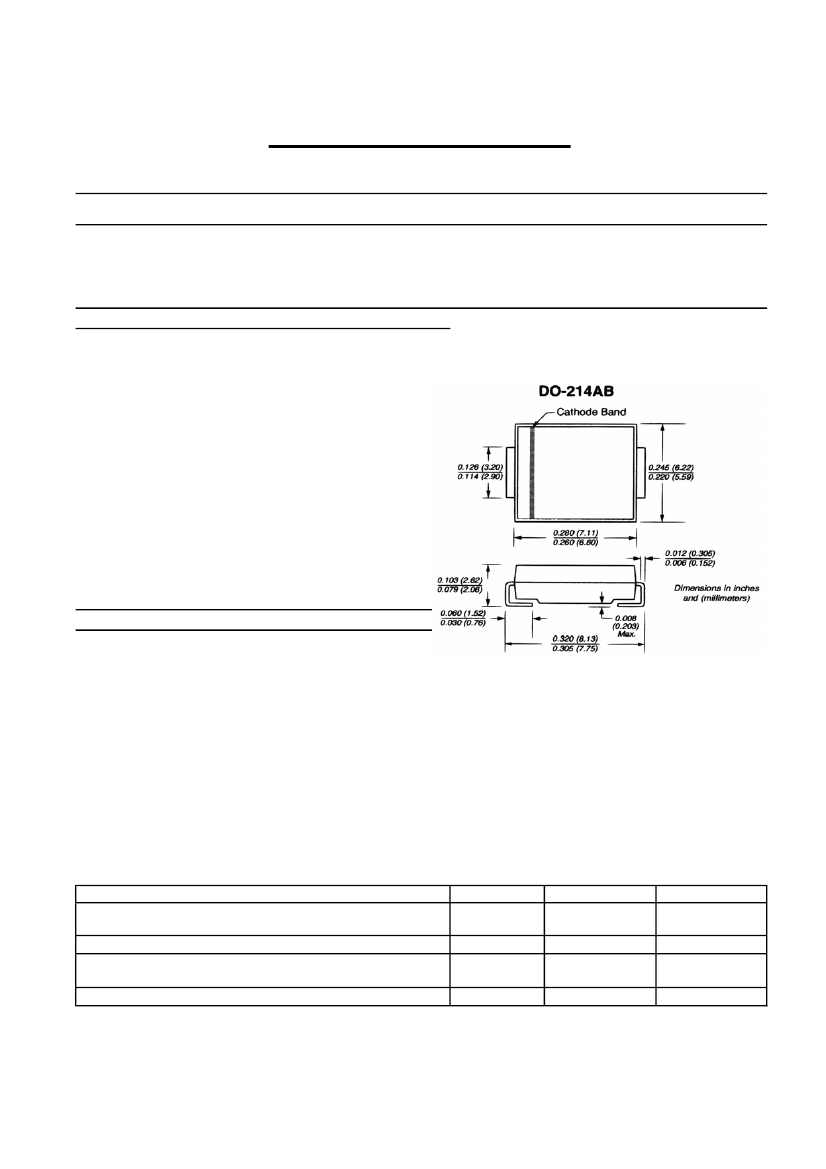

3.0SMCJ SERIES
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-5.0 TO 170 Volts
3000 Watt Peak Pulse Power
FEATURES
• For surface mounted applications in order to
optimize board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition rate (duty cycle):0.01%
• Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
• Typical IR less than 1µA above 10V
• High temperature soldering:
250°C/10 seconds at terminals
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
MECHANICAL DATA
Case: JEDEC DO214AB. Molded plastic over glass
passivated junction
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bidirectional
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.007 ounces, 0.021 grams)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types 3.0SMCJ5.0 thru types 3.0SMCJ170 (e.g. 3.0SMCJ5.0C, 3.0SMCJ170CA)
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation on 10/1000 µs
waveform
(NOTE 1, 2, Fig.1)
Peak Pulse Current of on 10/1000 µs waveform
(Note 1,Fig 3)
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
Superimposed on Rated Load,
(JEDEC Method)(Note2, 3)
Operatings and Storage Temperature Range
NOTES:
SYMBOL
P
PPM
I
PPM
VALUE
Minimum 3000
SEE TABLE 1
300
-55 +150
UNITS
Watts
Amps
Amps
°C
I
FSM
T
J
, T
STG
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2.
Mounted on 8.0mm x 8.0mm Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
Certified RoHS Compliant
UL File # E223026
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
RATING AND CHARACTERISTIC CURVES 3.0SMCJ SERIES
Fig. 1 - Peak Pulse Power Rating Curve
100
100
Fig.2 - Pulse Derating Curve
Peak Pulse Power (P )
PP
or Current (I
PP
)
Derating in Percentage,%
87.5
75
62.5
50
37.5
25
12.5
0
P
PPM
-Peak Pulse Power (kW)
Non-repetitive pulse
waveform shown in
Fig.3 T
A
= 25°C
10
1
0.1
0.1μs
0
25
50
75
100
125
150
175
200
1.0μs
10μs
100μs
1.0ms
10ms
t
d
- Pulse Width (sec.)
T
A
- Ambient Temperature (°C)
I
PPM
- Peak Pulse Current,% I
RSM
150
Fig.3 - Pulse Waveform
t
r
= 10μsec.
T
J
= 25°C
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
10000
10000
Fig. 4 - Typical Junction Capacitance
Unidirectional
Bidirectional
V
R
= 0
100
1000
C
J
- Capacitance (pF)
Peak Value
I
PPM
Half Value- I
PPM
2
1000
50
10/1000μsec.Waveform
as defined by R.E.A.
100
100
V
R
= Rated
Stand-off
f = 1MHz
V
sig
= 50mV
p-p
T
J
25°C
t
d
0
0
1.0
2.0
3.0
3.0
10
4.0
1
10
5
10
4.0
t - Time(ms)
V
WM
- Reverse Stand-Off Voltage (V)
10
100
500
1000
Fig. 5 - Steady State Power
Derating Curve
8.0
7.0
60Hz
Resistive or
Inductive Load
250
300
Fig.6 - Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
8.3ms Single Half Sine-Wave
(JEDEC Method)T
J
=T
J
max.
P
M(AV)
,Steady State Power
Dissipation (W)
6.0
5.0
4.0
3.0
2.0
1.0
0
0
25
50
75
100
125
150
175
200
I
FSM
-Peak Forward Surge
Current (A)
200
150
100
1
10
100
T
L
- Lead Temperature (°C)
Number of Cycles at 60 Hz
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
3000 Watt Surface Mount TVS
UNI-POLAR
BI-POLAR
DEVICE
MARKING
CODE
UNI
3.0SMCJ5.0A
3.0SMCJ6.0A
3.0SMCJ6.5A
3.0SMCJ7.0A
3.0SMCJ7.5A
3.0SMCJ8.0A
3.0SMCJ8.5A
3.0SMCJ9.0A
3.0SMCJ10A
3.0SMCJ11A
3.0SMCJ12A
3.0SMCJ13A
3.0SMCJ14A
3.0SMCJ15A
3.0SMCJ16A
3.0SMCJ17A
3.0SMCJ18A
3.0SMCJ20A
3.0SMCJ22A
3.0SMCJ24A
3.0SMCJ26A
3.0SMCJ28A
3.0SMCJ30A
3.0SMCJ33A
3.0SMCJ36A
3.0SMCJ5.0CA
3.0SMCJ6.0CA
3.0SMCJ6.5CA
3.0SMCJ7.0CA
3.0SMCJ7.5CA
3.0SMCJ8.0CA
3.0SMCJ8.5CA
3.0SMCJ9.0CA
3.0SMCJ10CA
3.0SMCJ11CA
3.0SMCJ12CA
3.0SMCJ13CA
3.0SMCJ14CA
3.0SMCJ15CA
3.0SMCJ16CA
3.0SMCJ17CA
3.0SMCJ18CA
3.0SMCJ20CA
3.0SMCJ22CA
3.0SMCJ24CA
3.0SMCJ26CA
3.0SMCJ28CA
3.0SMCJ30CA
3.0SMCJ33CA
3.0SMCJ36CA
RDE
RDG
RDK
PDM
PDP
PDR
PDT
PDV
PDX
PDZ
PEE
PEG
PEK
PEM
PEP
PER
PET
PEV
PEX
PEZ
PFE
PFG
PFK
PFM
PFP
BI
DDE
DDG
DDK
DDM
DDP
DDR
DDT
DDV
DDX
DDZ
DEE
DEG
DEK
DEM
DEP
DER
DET
DEV
DEX
DEZ
DFE
DFG
DFK
DFM
DFP
REVERSE BREAKDOWN BREAKDOWN
MAXIMUM
TEST
VOLTAGE CURRENT CLAMPING
VOLTAGE
STANDOFF
V
BR
(V)
V
BR
(V)
VOLTAGE
VOLTAGE
(I
T
)
V
RWM
(V)
@I
PP
V
C
(V)
MIN. @ I
T
MAX. @ I
T
mA
5.00
6.00
6.50
7.00
7.50
8.00
8.50
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
17.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
33.00
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
7.00
7.37
7.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147.00
159.00
185.00
197.00
209.00
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
PEAK
PULSE
CURRENT
I
PP
(A)
326.1
291.3
267.9
250.0
232.6
220.6
208.3
194.8
176.5
164.8
150.8
139.5
129.3
123.0
115.4
108.7
102.7
92.6
84.5
77.1
71.3
66.1
62.0
56.3
51.6
46.5
43.2
41.3
38.8
36.4
34.4
32.1
31.0
29.1
26.5
24.8
23.8
21.9
20.5
18.5
16.9
15.5
14.4
12.3
11.6
10.9
REVERSE
LEAKAGE
@ V
RWM
I
R
(µA)
800
800
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
36.00
40.00
3.0SMCJ40A 3.0SMCJ40CA
PFR DFR
40.00
44.40
3.0SMCJ43A 3.0SMCJ43CA
PFT
DFT
43.00
47.80
3.0SMCJ45A 3.0SMCJ45CA
PFV
DFV
45.00
50.00
3.0SMCJ48A 3.0SMCJ48CA
PFX
DFX
48.00
53.30
3.0SMCJ51A 3.0SMCJ51CA
PFZ
DFZ
51.00
56.70
3.0SMCJ54A 3.0SMCJ54CA
PGE DGE
54.00
60.00
3.0SMCJ58A 3.0SMCJ58CA
PGG DGG
58.00
64.40
3.0SMCJ60A 3.0SMCJ60CA
PGK DGK
60.00
66.70
3.0SMCJ64A 3.0SMCJ64CA
PGM DGM
64.00
71.10
3.0SMCJ70A 3.0SMCJ70CA
PGP DGP
70.00
77.80
3.0SMCJ75A 3.0SMCJ75CA
PGR DGR
75.00
83.30
3.0SMCJ78A 3.0SMCJ78CA
PGT DGT
78.00
86.70
3.0SMCJ85A 3.0SMCJ85CA
PGV DGV
85.00
94.40
3.0SMCJ90A 3.0SMCJ90CA
PGX DGX
90.00
100.00
3.0SMCJ100A 3.0SMCJ100CA
PGZ DGZ
100.00
111.00
3.0SMCJ110A 3.0SMCJ110CA
PHE DHE
110.00
122.00
3.0SMCJ120A 3.0SMCJ120CA
PHG DHG
120.00
133.00
3.0SMCJ130A 3.0SMCJ130CA
PHK DHK
130.00
144.00
3.0SMCJ150A 3.0SMCJ150CA
PHM DHM
150.00
167.00
3.0SMCJ160A 3.0SMCJ160CA
PHP DHP
160.00
178.00
3.0SMCJ170A 3.0SMCJ170CA
PHR DHR
170.00
189.00
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.
For parts without A , the VBR is ± 10%
Certified RoHS Compliant
UL File # E223026
