MS17348R18N13SX datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS17348R18N13SX

Preview

MS17348R18N13SX: DescriptionMIL Series Connector, 4 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS17348R18N13SX Overview

MIL Series Connector, 4 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle

MS17348R18N13SX Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-22992, COMPATIBLE CONTACTS: 10-36983-5; 10-407029-8
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS17348R
Mixed contacts	YES
Installation type	PANEL
Options	WATERPROOF
Shell surface	ANODIC
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

MIL-C-22992, QWLD

MS17348 or 10-1949XX

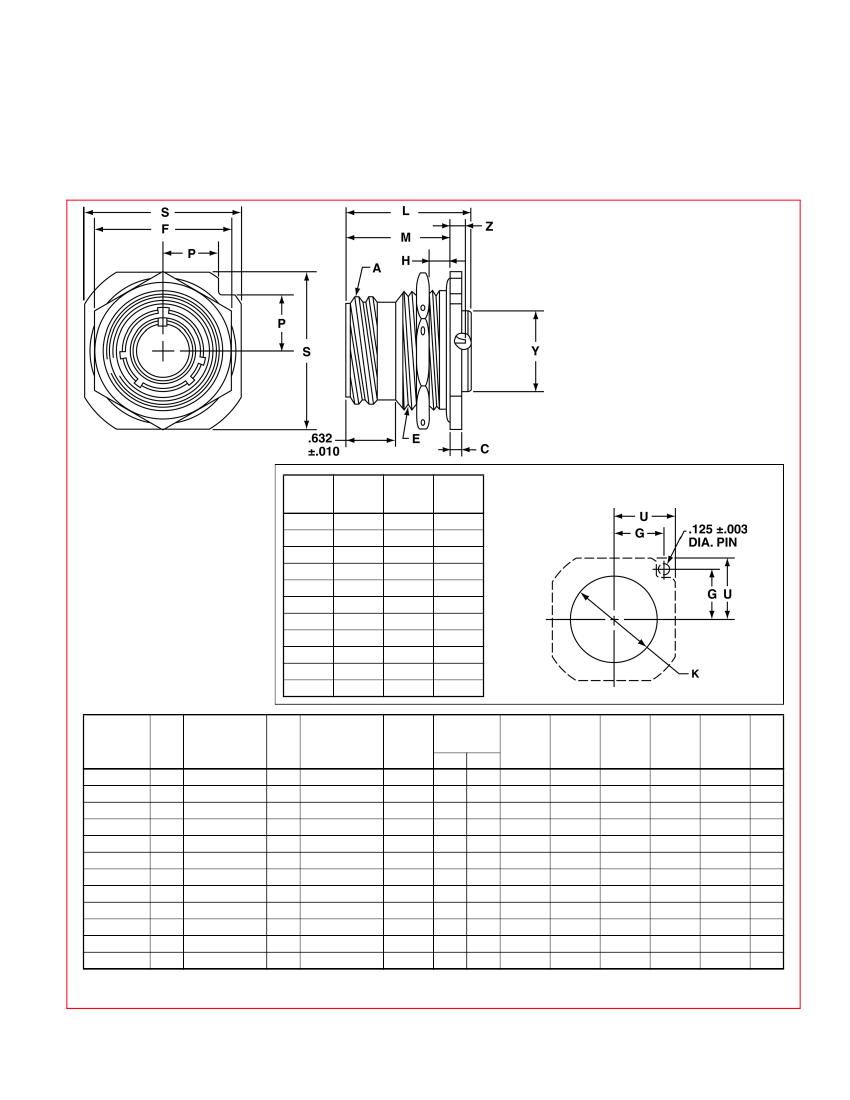

jam nut receptacle (box mount)

Shell

Size

K Dia.

+.005

–.000

G

±.003

U

±.005

MOUNTING DIMENSIONS

12,13

14,15

16,17

18

20

22

24

28

32

36

40

All dimensions for reference only.

A Thread

Class 2A (Plated)

C

Shell

0.1P-0.2L

+.006

Size

Double Stub

–.005

1.005

1.130

1.255

1.380

1.505

1.630

1.880

2.130

2.380

2.630

2.880

.562

.606

.699

.739

.783

.830

.919

1.007

1.096

1.183

1.292

.688

.750

.875

.938

1.000

1.062

1.188

1.312

1.438

1.562

1.703

H

Panel

Thickness

Min

Max

Part

Number

E

Thread

Class 2A

(Plated)

F

Hex

+.017

–.016

L

+.011

–.010

M

±.010

P

±.010

S

+.011

–.010

Y

+.011

–.010

Z

Max

10-194913

10-194915

10-194917

10-194918

10-194920

10-194922

10-194924

10-194928

10-194932

10-194936

10-194940

10-194944

12

14

16

18

20

22

24

28

32

36

40

44

.8750

1.0000

1.1250

1.2500

1.3750

1.5000

1.7500

2.0000

2.2500

2.5000

2.7500

3.0000

.125

.188

.219

1.000-20UNEF

1.125-18UNEF

1.250-18UNEF

1.375-18UNEF

1.500-18UNEF

1.625-18UNEF

1.875-16UN

2.125-16UN

2.375-16UN

2.625-16UN

2.875-16UN

3.125-16UN

1.250

1.312

1.500

1.562

1.750

1.875

2.125

2.375

2.625

2.875

3.125

3.375

.094

.297

.266

.328

1.578

1.641

1.235

1.203

1.266

1.329

.486

.530

.623

.663

.707

.751

.840

.928

1.017

1.104

1.213

1.299

1.375

1.500

1.750

1.875

2.000

2.125

2.375

2.625

2.875

3.125

3.406

3.656

.640

.765

.890

1.015

1.171

1.296

1.421

1.625

1.891

2.078

2.312

2.562

.389

.421

.358

.295

.545

*To complete 10- part number or to complete MS part number, see how to order, pg. 22.
