1 ELEMENT, 0.104 uH, GENERAL PURPOSE INDUCTOR

Preview

Download Datasheet

View All

Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998

FAX: (805) 522-9989

E-mail: frontiersales@frontierusa.com

Web: frontierusa.com

Insert Molded Coil—

2901 series

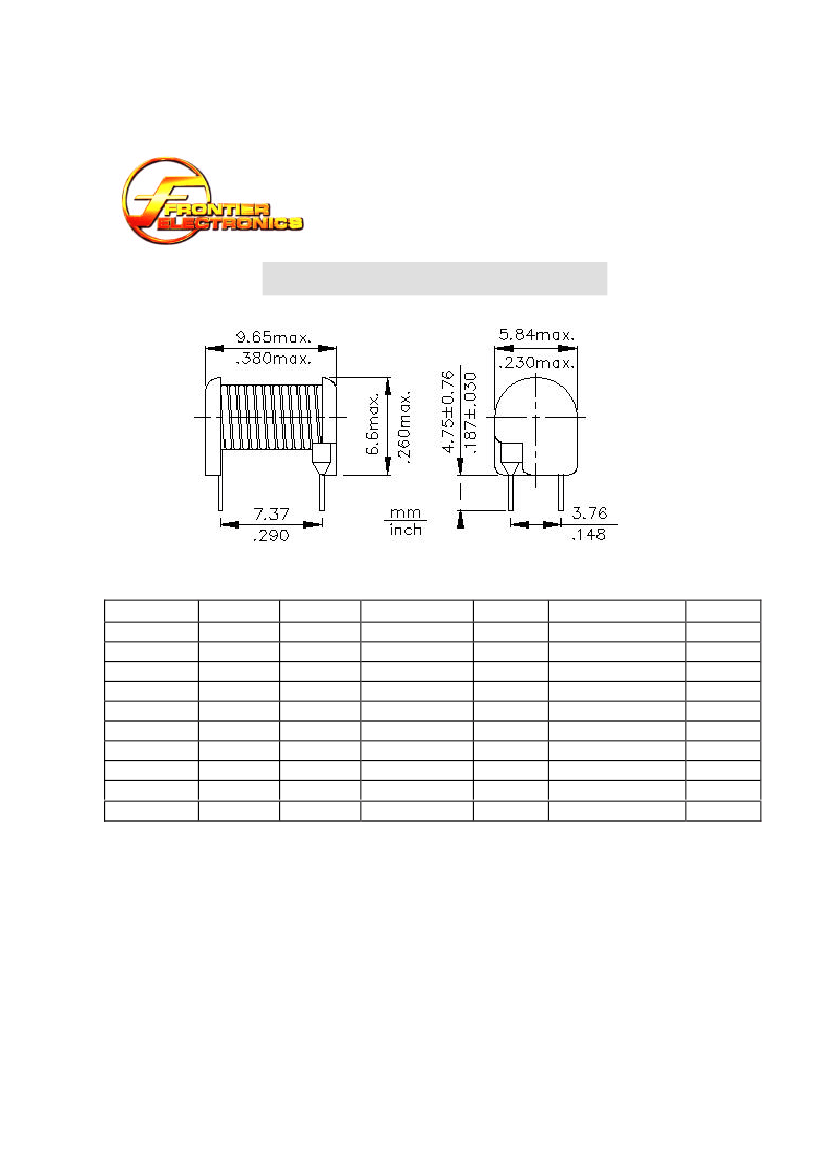

A. Mechanical Drawing:

B. Electrical Specification:

Part No.

2901-01

2901-02

2901-03

2901-04

2901-05

2901-06

2901-07

2901-08

2901-09

2901-10

C. Features:

1. Plastic molded.

2. High reliability.

3. Low cost.

Wire

22 T.C.

22 S.P.

Turns

1.50

2.50

3.50

4.50

5.50

6.50

7.50

8.50

9.50

10.50

(nH)

27.0

32.0

38.5

47.5

59.0

70.0

87.0

104.0

125.0

140.0

Q min.

100

Test Freq. (MHz)

Color

Brown

Red

Orange

Yellow

Green

Blue

Violet

Gray

White

Black

D. Measurement:

1. Q and L measured with ½” long of TCW#16 soldered along the coil leads and with one end flush with the

bottom of the coil then bent ¼” down from stand off at an angle of 90°.

2. L min. measured with core halfway out of the top of the form.

3. Inductance greater than 0.1uH read at recommended Q meter frequency.

4. Inductance below 0.1uH calculated from readings taken at 50MHz.

E. Test equipment:

Q meter (HP 4342A)

IMC 2901 series

Mar. 01, 2002 Page 1 of 1
