FEATURES

HS14 and HSR14 Sine Wave Oscillators

14 pin Dual-in-line Sine Wave Clock Oscillators

Sine Wave output in industry-standard 14 DIL package

Choice of output loads

Harmonics -25dBc maximum

Very low current consumption <1.0mA for HSR14

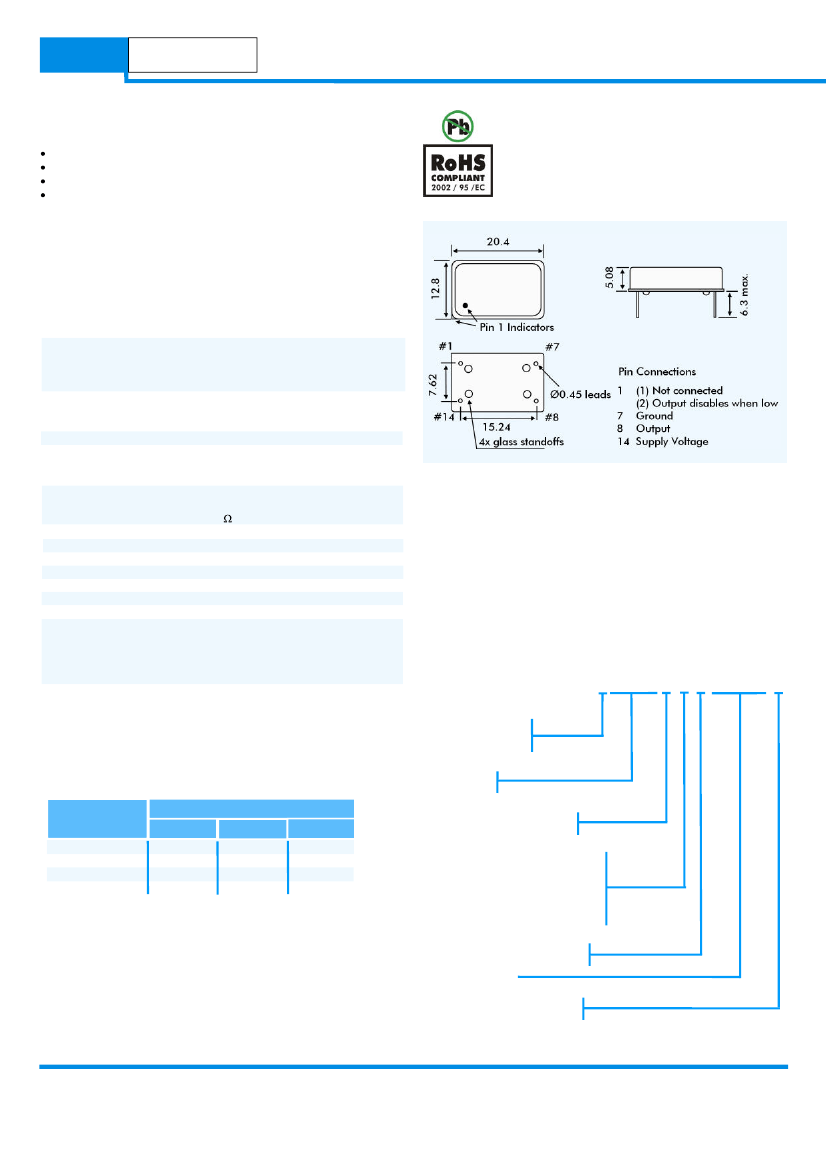

OUTLINE & DIMENSIONS

DESCRIPTION

HS14 sine wave clock oscillators provide a true sine wave out output

while being packaged in the industry-standard, 14 pin DIL outline

package. The oscillator is capable of being produced with close

tolerances and exhibits low current consumption.

SPECIFICATION

Frequency Range

HS14 at 3.3 Volts:

HS14 at 5.0 Volts:

HSR14:

Input Voltage

HS14:

HSR14:

Output Wave Form:

Frequency Stability

0~70°C:

-40 ~+85°C:

Output Level

HS14:

HSR14

Harmonics:

Phase Noise:

Current Consumption:

Start-up Time:

Storage Temperature:

Sub-Harmonics:

Ageing: ±5ppm/year

Enable/Disable Option:

Disable time:

10.0MHz to 800.0MHz

10MHz to 156.0 MHz

10MHz to 30MHz

+3.3V or +5.0VDC ±5%

+2.8V, +3.3V or +5.0VDC ±5%

True sine wave

±25ppm, ±50ppm or ±100ppm*

0dBm into 50 Ohms

<5dBM available

10k //10pF load, level 1.0V p-p

-25dBc maximum

-130 dBC/Hz at 1kHz offset

See table

2.0ms typical

-55° to +125°C

None

Output is high impedance when pad 1

is taken LOW.

150ns maximum

(Add 'T' to the part number code for

this option.)

Compliant and Non-compliant

versions are available.

PART NUMBERING

Example:

RoHS Status:

3HSR14G-B-T-25.000-X

Non-standard frequency stability is available, check with sales.

CURRENT CONSUMPTION

Type/Frequency

HS14

HSR14

10MHz

100MHz

150MHz

10MHz

Supply Voltage (±5%)

+2.8

1.0mA

+3.3V

9mA

18mA

19mA

1.1mA

+5.0V

18mA

34mA

36mA

1.2mA

Supply Voltage

28 = 2.8 Volts

3 = 3.3 Volts

5 = 5.0 Volts

Series Designation

HS14

HSR14

RoHS

G = Compliant

Blank = Non-compliant

Stability

A = ±25ppm 0° to +70°C

B = ±50ppm 0° to +70°C

C = ±100ppm 0° to +70°C

D = ±25ppm -40° to +85°C

E = ±50ppm -40° to +85°C

F = ±100ppm -40° to +85°C

Enable/Disable

T = implemented

Blank = not-implemented

Frequency (MHz)

Customer-Specific Code

(Included

if specified by

engineering department.)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
