862-90-112-30-180000: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size214KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

862-90-112-30-180000 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,

862-90-112-30-180000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.78 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
Base Number Matches	1

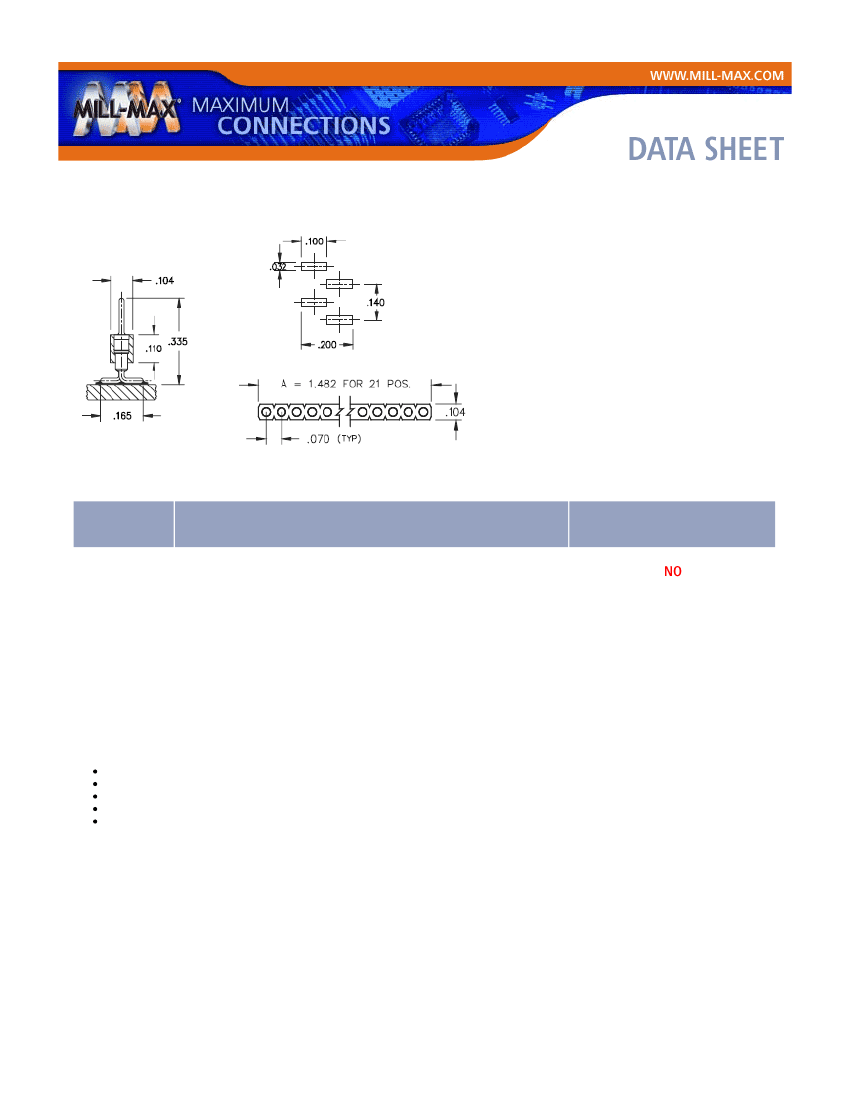

Preview

Download Datasheet

View All

Product Number: 862-90-112-30-180000

Description:

Interconnect Header

.070 Grid; Surface Mount Pin Header

Gull Wing

Surface Mount

Plating Code:

90

Shell Plating:

200 μ" Tin/Lead(93/7) over 100 μ"

Nickel

#

Of

Pins

12

Mill-Max

Part

Number

862-90-112-30-180000

RoHS

Compliant

LOOSE PIN:

Pin Used: 6218 (Brass Alloy)

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit "free machining" and is permitted by EC Directive 2002/95Annex 6; so all pin

materials are RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

Mill-Max Mfg. Corp. Datasheet — Last Modified 6/4/2009

Page 1 of 2
