81CX: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 0.5A, 125VDC, Screw Terminal, Lever Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size92KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric View All

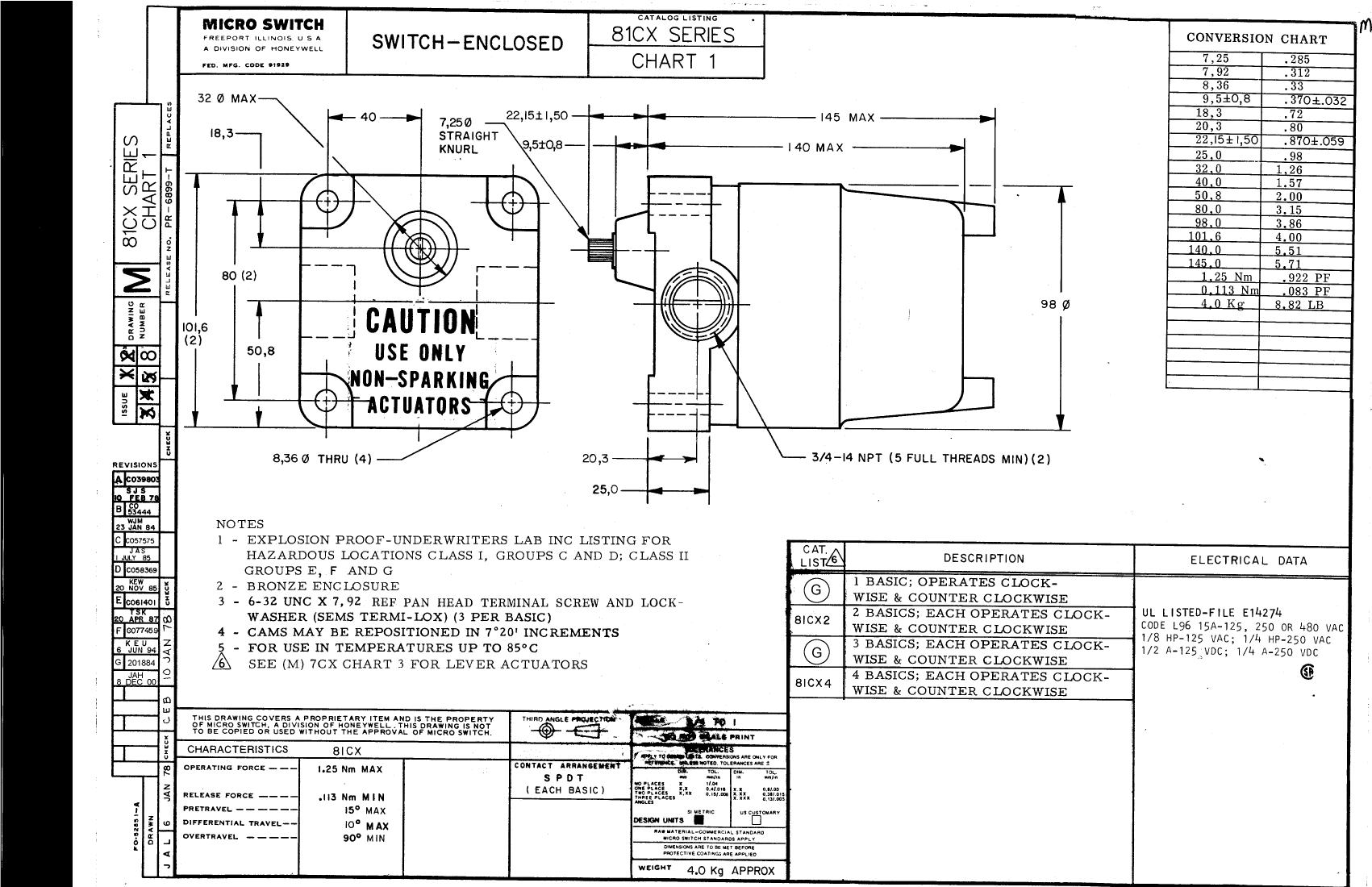

81CX Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.5A, 125VDC, Screw Terminal, Lever Actuator, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	LEVER
Other features	P.T. = 15 DEG, T.T. = 105 DEG
body height	140 mm
Body length or diameter	101.6 mm
Contact (AC) maximum rated R load	15A@480VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@125VDC
Maximum contact voltage (AC)	480 V
Maximum contact voltage (DC)	125 V
Manufacturer's serial number	81CX
Installation features	PANEL MOUNT
Maximum operating force	1.25 N
Maximum operating temperature	85 °C
seal	EXPLOSION PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SCREW
Base Number Matches	1
