SAM044P-031-2: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

SAM044P-031-2 Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

SAM044P-031-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, APPLICATIONS:ADD-ON MEMORY; BUS TERMINATION
Board mount options	SPLIT BOARD LOCK
body width	0.4 inch
subject depth	0.455 inch
body length	2.66 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	SAM
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	SAM044S-011-2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	DUAL POLARIZED
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.173 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

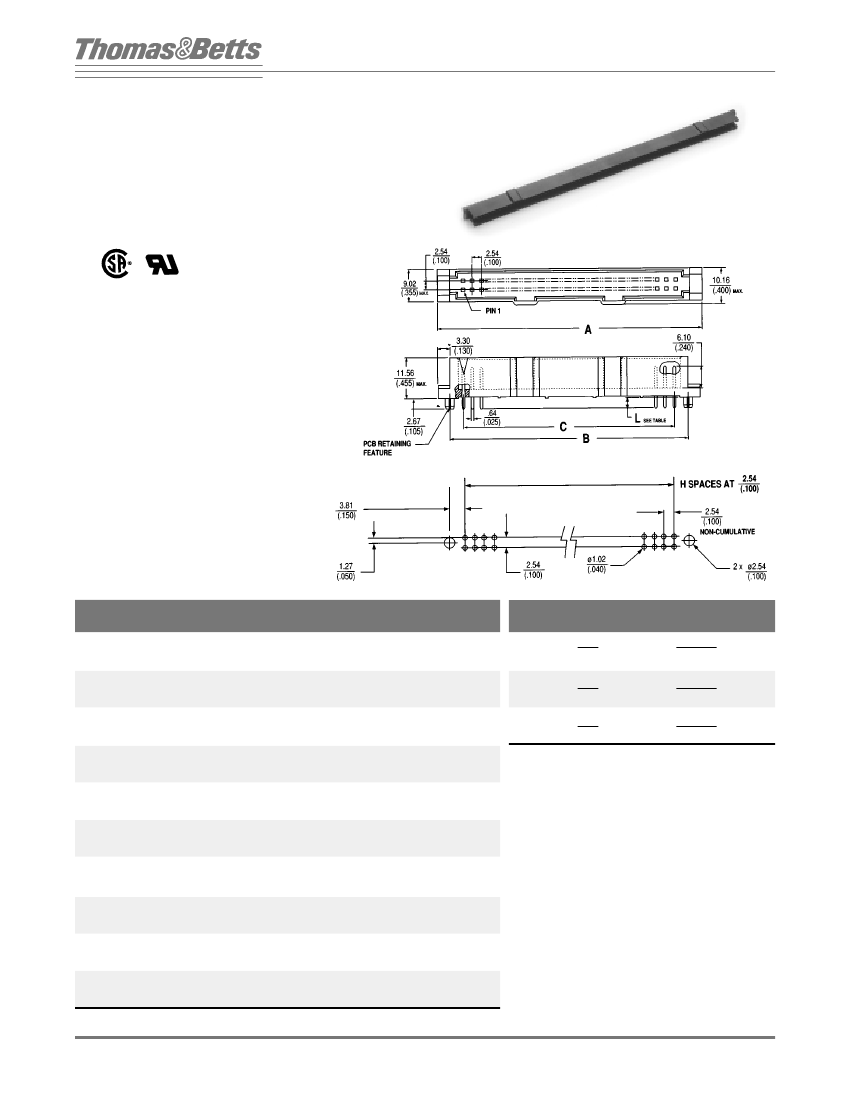

Two–Piece Connectors

SAM System

SURFACE ATTACHED MODULE

STRAIGHT MALE SAM

PCB CONNECTORS

30-160 POSITIONS

WITH INTEGRAL PCB

RETENTION FEATURE

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Black

ONTACTS

Copper alloy, nickel plate overall,

30 microinches gold finish in contact zone

LECTRICAL

ROPERTIES

URRENT

ATING

1 Amp per pin

NSULATION

ESISTANCE

>1 x 10

0hms

IELECTRIC

TRENGTH

> 1000 VDC at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

Recommended Printed Circuit Board Layout

Ordering Information

NO. OF

POSITIONS

100

110

120

130

140

150

156

160

PART NUMBER

SPECIFY X

SAM020P-0X1-2

SAM030P-0X1-2

SAM034P-0X1-2

SAM040P-0X1-2

SAM044P-0X1-2

SAM050P-0X1-2

SAM056P-0X1-2

SAM060P-0X1-2

SAM064P-0X1-2

SAM072P-0X1-2

SAM080P-0X1-2

SAM086P-0X1-2

SAM100P-0X1-2

SAM110P-0X1-2

SAM120P-0X1-2

SAM130P-0X1-2

SAM140P-0X1-2

SAM150P-0X1-2

SAM156P-0X1-2

SAM160P-0X1-2

e.g. SAM160P-041-2

37.08 (1.460)

49.78 (1.960)

54.86 (2.160)

62.48 (2.460)

67.56 (2.660)

75.18 (2.960)

82.80 (3.260)

87.88 (3.460)

92.96 (3.660)

30.48 (1.200)

43.18 (1.700)

48.26 (1.900)

55.88 (2.200)

60.96 (2.400)

68.58 (2.700)

76.20 (3.000)

81.28 (3.200)

86.36 (3.400)

22.86 (.900)

35.56 (1.400)

40.64 (1.600)

48.26 (1.900)

53.34 (2.100)

60.96 (2.400)

68.58 (2.700)

73.66 (2.900)

78.74 (3.100)

88.90 (3.500)

POST LENGTH

2.80

(.110)

4.40

(.173)

3.40

(.135)

RECOMMENDED

PCB THICKNESS RANGE

1.2 - 2.0

(.047 - .077)

2.8 - 3.6

(.110 - .140)

2.0 - 2.8

(.078 - .109)

103.12 (4.060) 96.52 (3.800)

113.28 (4.460) 106.68 (4.200) 99.06 (3.900)

120.90 (4.760) 114.30 (4.500) 106.68 (4.200)

138.68 (5.460) 132.08 (5.200) 124.46 (4.900)

151.38 (5.960) 144.78 (5.700) 140.66 (5.400)

164.08 (6.460) 157.48 (6.200) 149.86 (5.900)

176.78 (6.960) 170.18 (6.700) 162.56 (6.400)

189.48 (7.460) 182.88 (7.200) 175.26 (6.900)

202.18 (7.960) 195.58 (7.700) 187.96 (7.400)

209.80 (8.260) 203.20 (8.000) 195.58 (7.700)

214.88 (8.460) 208.28 (8.200) 200.66 (7.900)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

316
