MS34PM007SGE00: DescriptionTelecom and Datacom Connector, 34 Contact(s), Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

MS34PM007SGE00 Overview

Telecom and Datacom Connector, 34 Contact(s), Male, Crimp Terminal, Plug,

MS34PM007SGE00 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-28748, COMPATIBLE CONTACTS: RM20M13D28; SM20M1S6, POLARIZED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	THERMOPLASTIC
Termination type	CRIMP
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

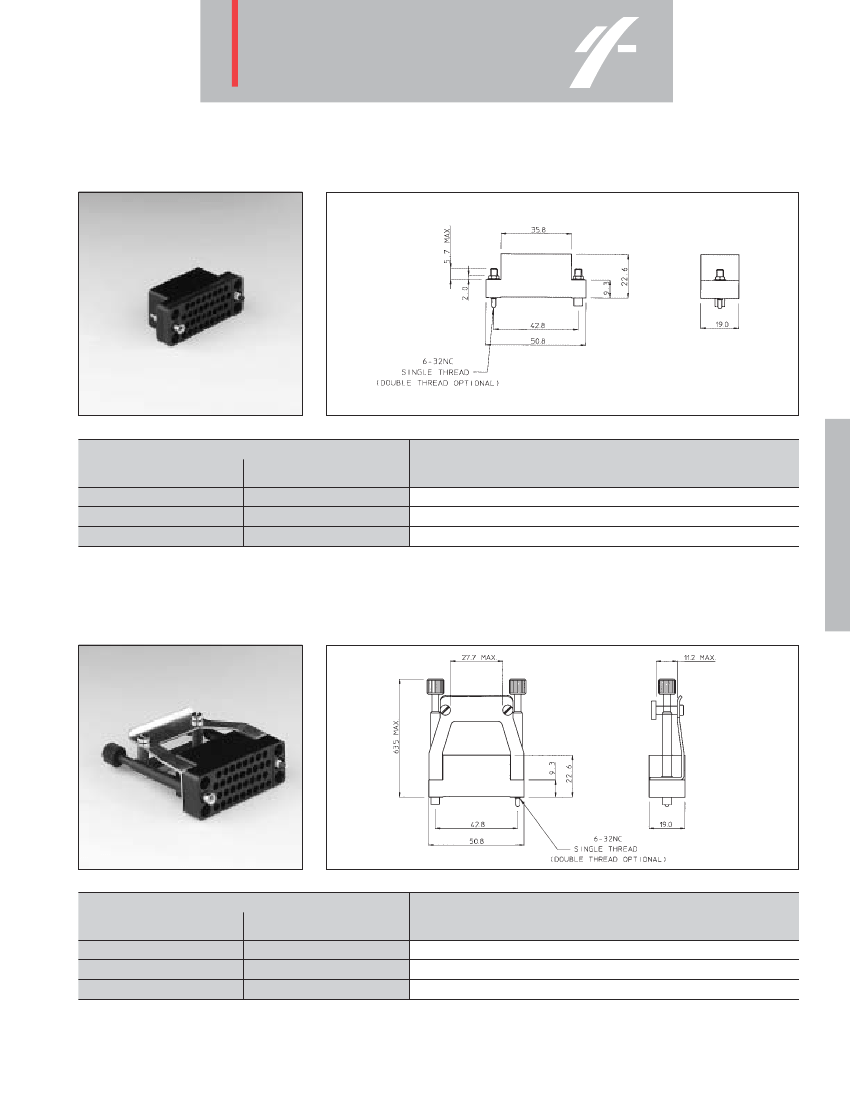

V.35

- interface connectors

MS34 Cable connectors without strain relief hood

Part number

Version with

male contacts

MS34PM1(*)GE00

MS34PM58(*)GE00

MS34PM007(*)GE00

Version with

female contacts

MS34RM1(*)GE00

MS34RM58(*)GE00

MS34RM007(*)GE00

Description

Guide pin and guide socket. No strain relief hood.

Turnable jackscrew pin and turnable jackscrew socket. No strain relief hood.

(*) Complete catalogue number with “ S “ for connector with protective shroud.

MS34 Cable connectors with cable clamp

Part number

Version with

male contacts

MS34PM117(*)GE00

MS34PM127(*)GE00

MS34PM107(*)GE10

Version with

female contacts

MS34RM117(*)GE00

MS34RM127(*)GE00

MS34RM107(*)GE10

Description

Guide pin, guide socket and cable clamp

Jackscrew pin, jackscrew socket and cable clamp

Turnable jackscrew pin, turnable jackscrew socket and cable clamp.

(*) Complete catalogue number with “S” for connector with protective shroud.

67

V.35

Jackscrew pin and jackscrew socket. No strain relief hood.
