274MKP275KE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 274MKP275KE

274MKP275KE: DescriptionFilm Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 0.27uF, Through Hole Mount, RADIAL LEADED, LEAD FREE; CategoryPassive components capacitor; File Size479KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

274MKP275KE Overview

Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 0.27uF, Through Hole Mount, RADIAL LEADED, LEAD FREE

274MKP275KE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1861841898
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: IEC60384-14
capacitance	0.27 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (AC) voltage (URac)	275 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

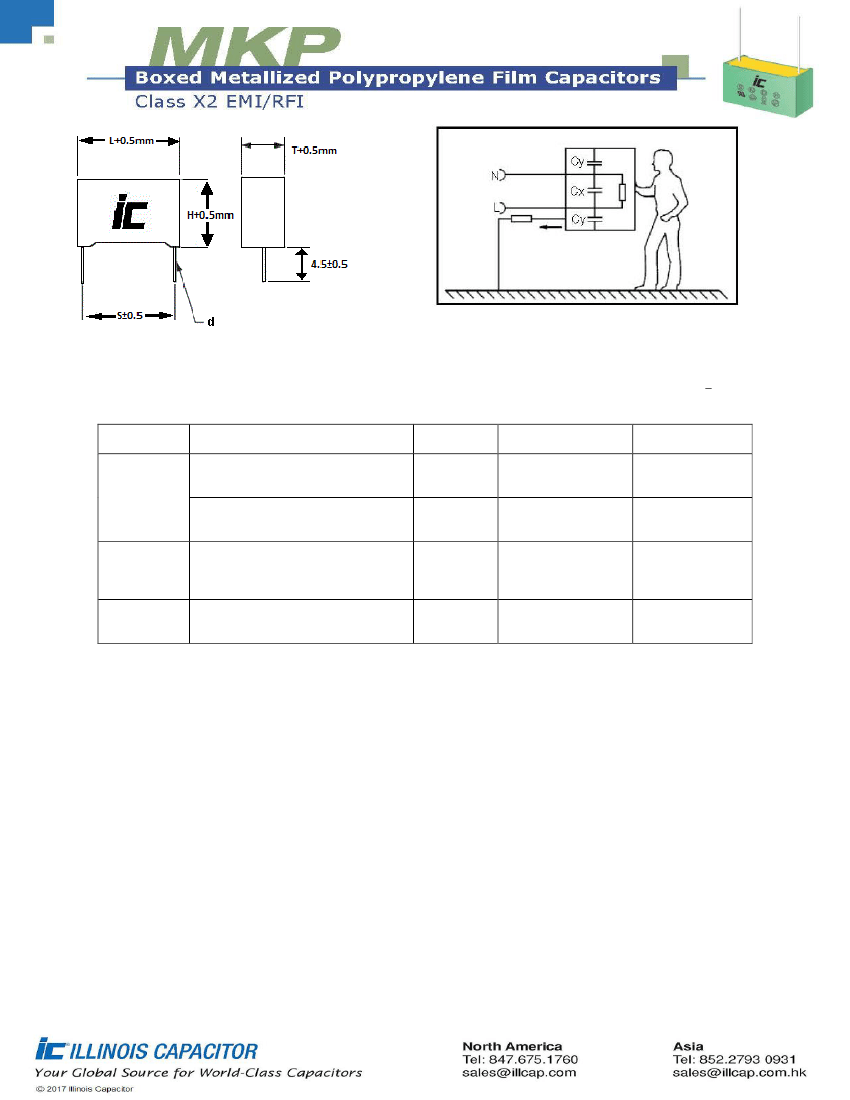

Preview

Download Datasheet

View All

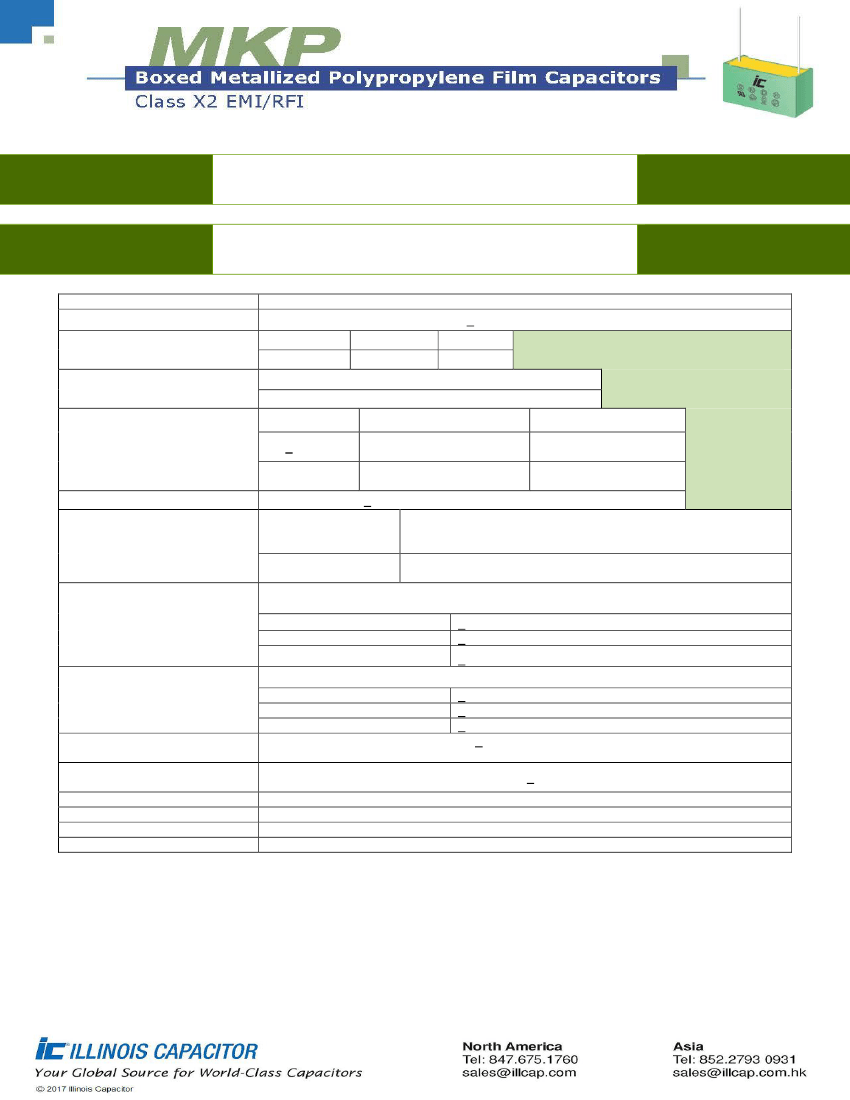

FEATURES

Small Size

–

Safety Agency Approved

–

Metalized Polypropylene

EMI filters

–

Across the line

-40°C to +110°C

+10% at 1 kHz, 20°C

UL/CSA

250/275/310

ENEC

250/275/310

Tan δ

.1% Max

Capacitance

Terminal to Terminal

15000 MΩ

Terminal to Case

>30000 MΩ at 100VDC

>5000 MΩ at 500VDC

>30000 MΩ at 100VDC

>0.33uF

5000 MΩxuF

>5000 MΩ at 500VDC

<1 nano-Henry per mm of lead spacing

1333VDC (4.3*310) VDC applied for 60 seconds

Terminal to Terminal

Cut-off current: 10mAdc

Current limiting resistance: 1Ω/V

2050VDC (50/60 Hz) applied between the terminals and case for 60

Terminal to case

Seconds and 20°C

1000 hours at 110°C at 125% of rated voltage with once every hour the voltage is

increased to 1000 VAC for 0.1 seconds

Capacitance change

<10% of initially measured value

Dissipation Factor

<0.8% at 1kHz

Insulation Resistance

>50% of initially specified value (T-T)

<0.33uF

Capacitance change

Dissipation Factor

Insulation Resistance

56 days at 90 to 95% RH, 40C

<10% of initially measured value

<0.8% at 1kHz

>50% of initially specified value (T-T)

C< 1uF Vp=2.5kVDC

C> 1uF Vp=2.5kV √C

-200ppm/°C, +100ppm/°C

Metallized Polypropylene film

Vacuum deposited Metal layers

Flame retardant Solvent resistant plastic case with epoxy end fill (UL94V-0)

tinned copper clad steel leads

CQC

310

APPLICATIONS

Operating Temperature Range

Capacitance Tolerance

AC voltage

(50/60 Hz)

Dissipation Factor

at 1 kHz and 20°C

Insulation Resistance

@20°C (<70% RH)for 1 minute

at 100VDC applied

Self Inductance

Dielectric Strength

Life Expectancy

Humidity test

Impulse voltage

(24 pulses)

Capacitance temperature

coefficient

Construction

Electrodes

Coating

Lead terminations

Jun-18
