SN74LS169BNSRE4 datasheet, PDF

SN74LS169BNSRE4: DescriptionBinary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, GREEN, PLASTIC, SOP-16; Categorylogic logic; File Size1MB，24 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74LS169BNSRE4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74LS169BNSRE4	-	-	View	Buy Now

Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, GREEN, PLASTIC, SOP-16

Parameter Name	Attribute value
package instruction	SOP,
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	BIDIRECTIONAL
series	LS
JESD-30 code	R-PDSO-G16
length	10.2 mm
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	25 ns
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	5.3 mm
minfmax	20 MHz
Base Number Matches	1

SN54LS169B, SN54S169

SN74LS169B, SN74S169

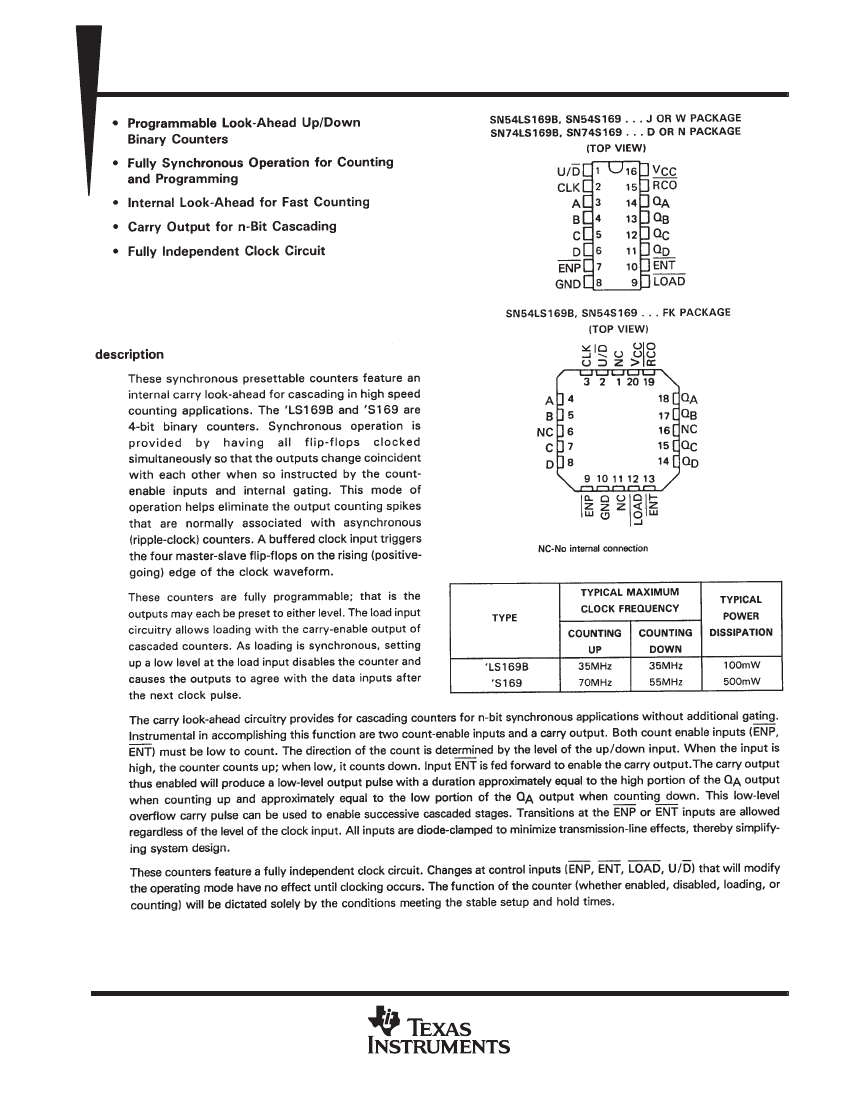

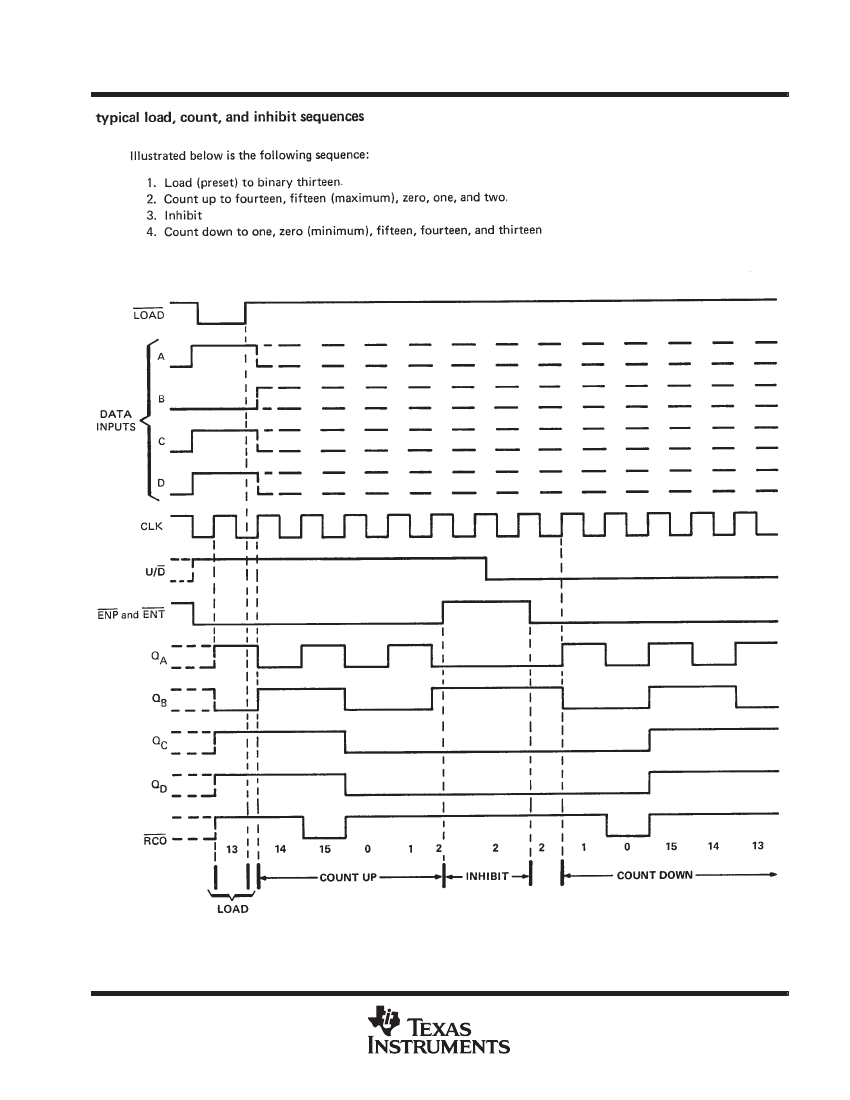

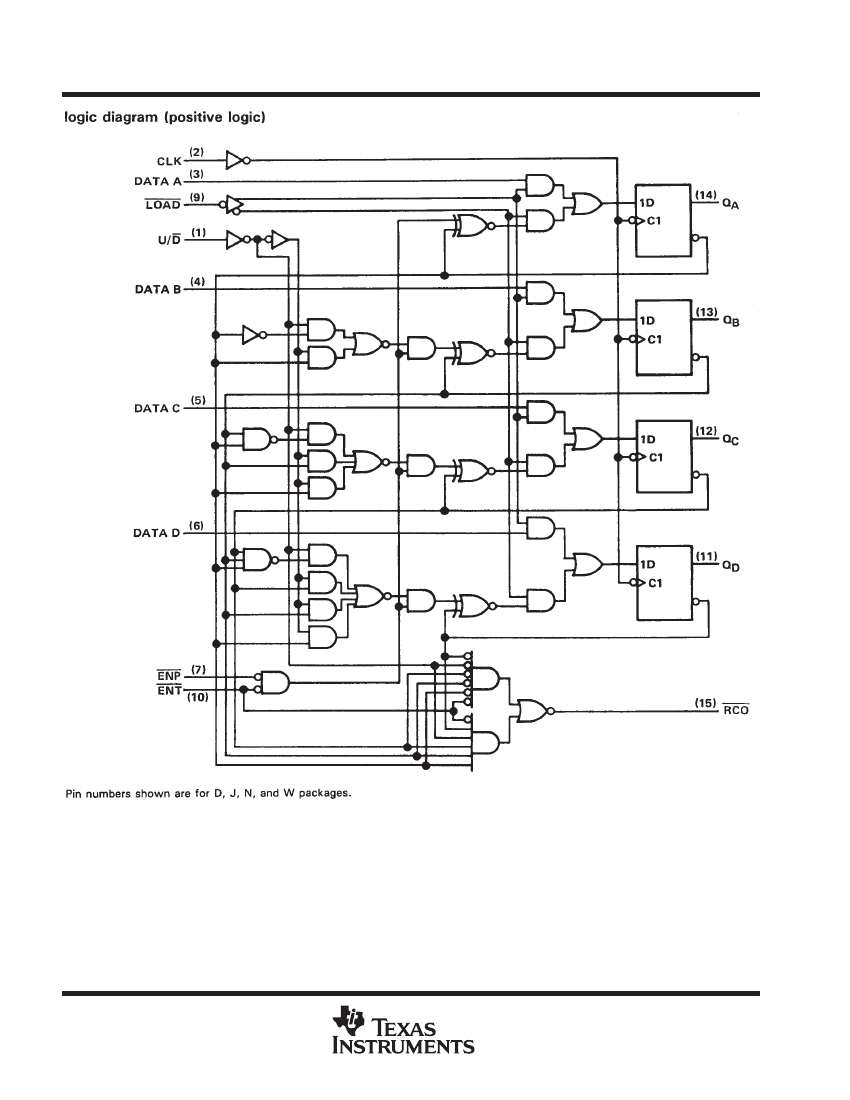

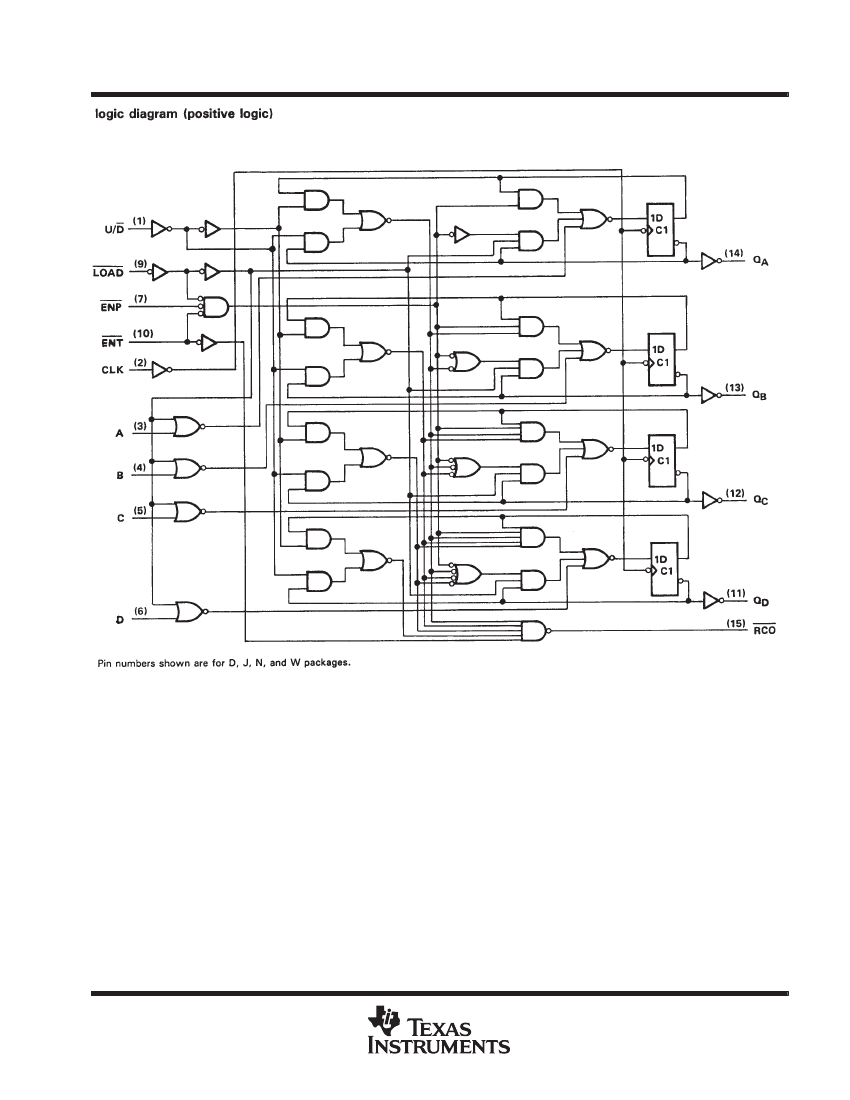

SYNCHRONOUS 4-BIT UP/DOWN BINARY COUNTERS

SDLS134 – OCTOBER 1976 – REVISED MARCH 1988

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

1988, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265

	SN74LS169BNSRE4	SN74LS169BNSRG4
Description	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, GREEN, PLASTIC, SOP-16	Binary Counter, LS Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, PDSO16, GREEN, PLASTIC, SOP-16
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	LS	LS
JESD-30 code	R-PDSO-G16	R-PDSO-G16
length	10.2 mm	10.2 mm
Load/preset input	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	25 ns	25 ns
Maximum seat height	2 mm	2 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	5.3 mm	5.3 mm
minfmax	20 MHz	20 MHz
Base Number Matches	1	1
