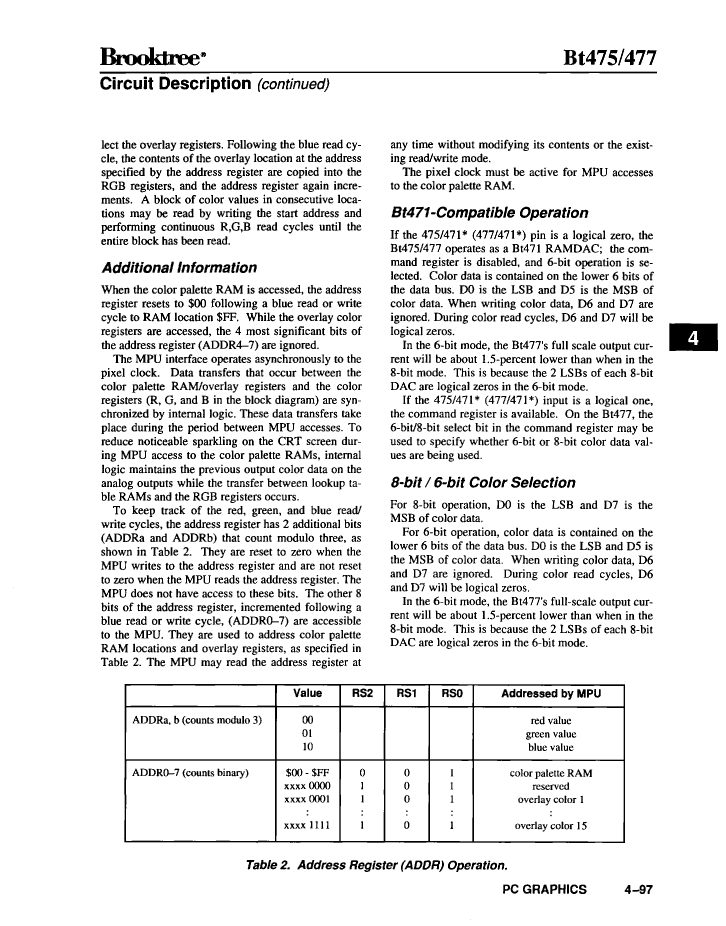

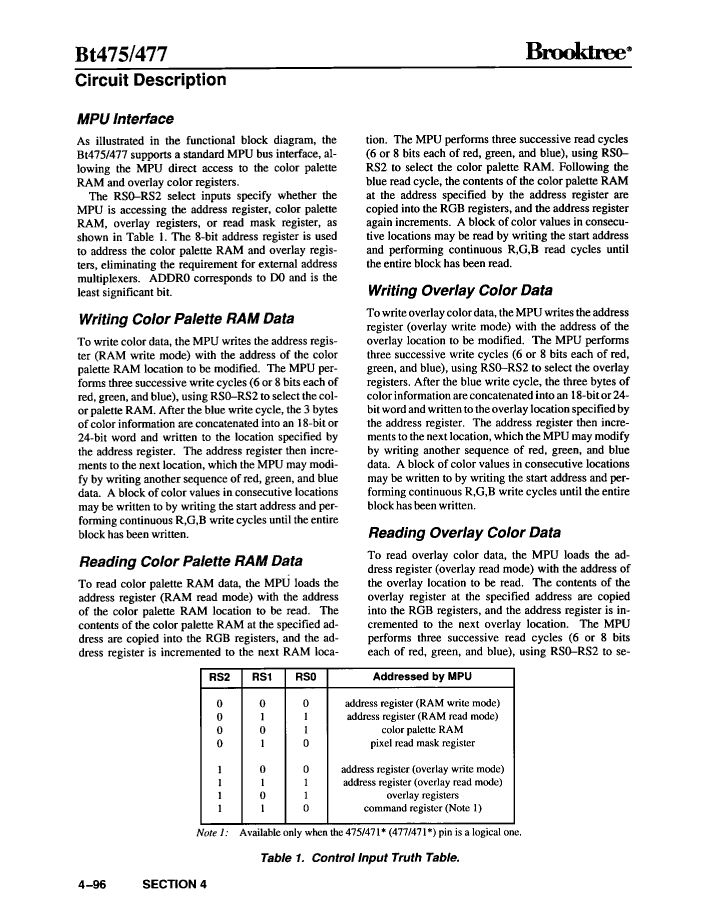

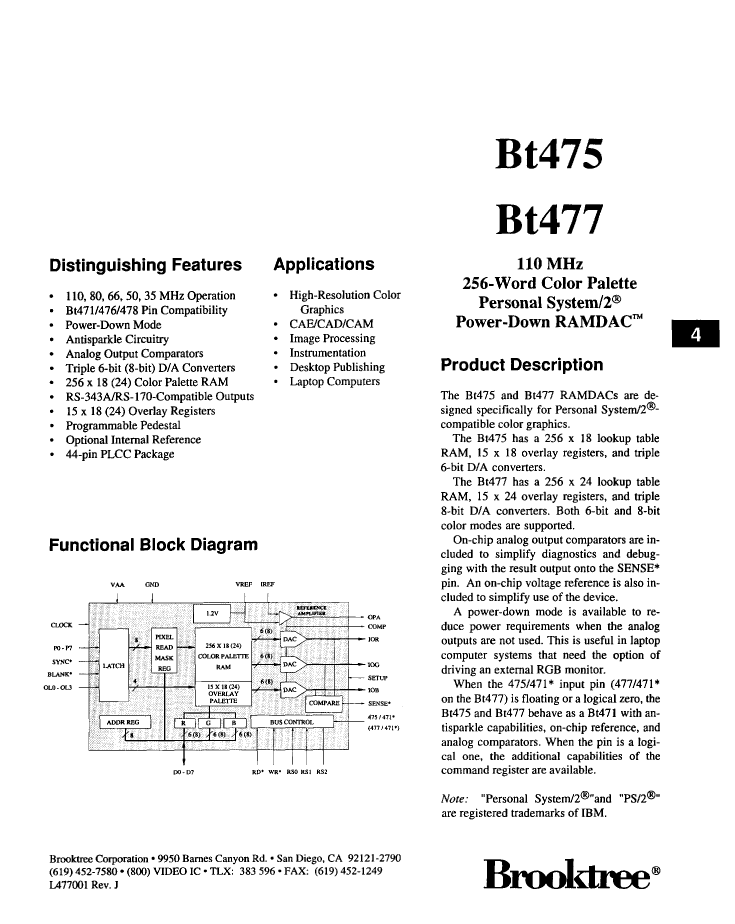

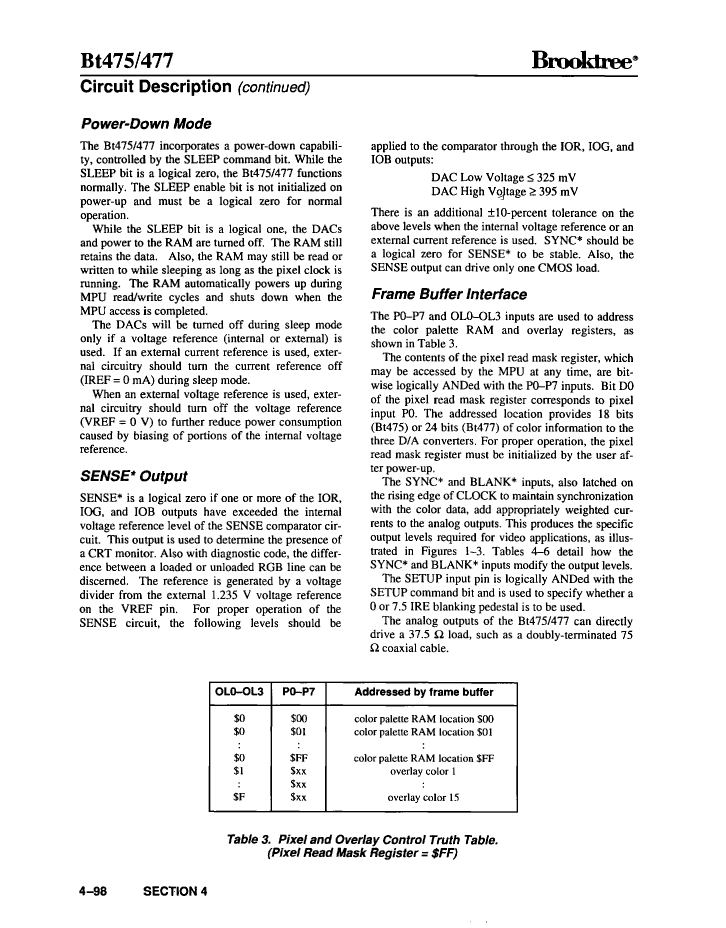

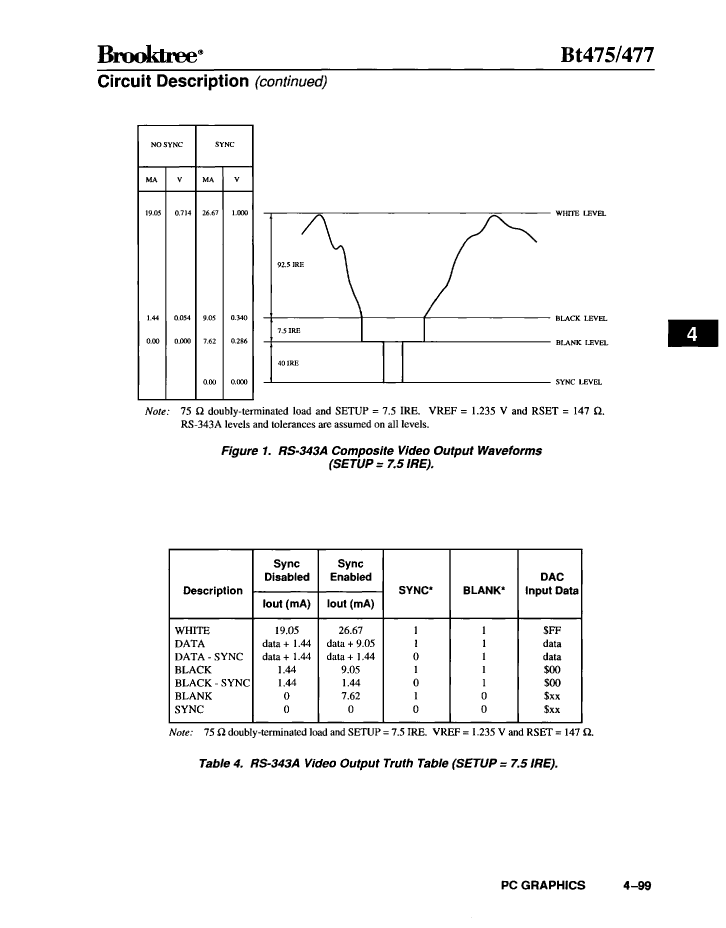

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.02us Settling Time, PQCC44
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | QCCJ, LDCC44,.7SQ |
| Reach Compliance Code | unknown |
| ECCN code | 3A001.A.2.C |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY |
| Input format | PARALLEL, WORD |
| JESD-30 code | S-PQCC-J44 |
| JESD-609 code | e0 |
| Maximum linear error (EL) | 0.391% |
| Number of digits | 6 |
| Number of functions | 1 |
| Number of terminals | 44 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC44,.7SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal settling time (tstl) | 0.02 µs |
| Maximum slew rate | 240 mA |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| BT475KPJ50 | BT475KPJ35 | BT475KPJ66 | BT475KPJ80 | BT477KPJ50 | BT477KPJ80 | BT477KPJ66 | BT477KPJ35 | BT477KPJ110 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.02us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.028us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.013us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, Word Input Loading, 0.013us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.02us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.013us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.013us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.028us Settling Time, PQCC44 | D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.013us Settling Time, PQCC44 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ | QCCJ, LDCC44,.7SQ |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY |
| Input format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS | PARALLEL, 8 BITS |
| JESD-30 code | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 | S-PQCC-J44 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum linear error (EL) | 0.391% | 0.391% | 0.391% | 0.391% | 0.391% | 0.391% | 0.391% | 0.391% | 0.391% |
| Number of digits | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | QCCJ | QCCJ | QCCJ | QCCJ | QCCJ | QCCJ | QCCJ | QCCJ |
| Encapsulate equivalent code | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ | LDCC44,.7SQ |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal settling time (tstl) | 0.02 µs | 0.028 µs | 0.013 µs | 0.013 µs | 0.02 µs | 0.013 µs | 0.013 µs | 0.028 µs | 0.013 µs |
| Maximum slew rate | 240 mA | 240 mA | 240 mA | 240 mA | 240 mA | 240 mA | 240 mA | 240 mA | 280 mA |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND | J BEND | J BEND | J BEND | J BEND | J BEND | J BEND | J BEND | J BEND |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | - | - | - | - | CONEXANT | CONEXANT | CONEXANT | CONEXANT | CONEXANT |
