BT485KPJ110 datasheet, PDF - EEWORLD Datasheet

BT485KPJ110: DescriptionD/A Converter, 4 Func, Parallel, 8 Bits Input Loading, 0.003us Settling Time, PQCC84; CategoryAnalog mixed-signal IC converter; File Size2MB，42 Pages; ManufacturerCONEXANT; Websitehttp://www.conexant.com/

Download Datasheet Parametric Compare View All

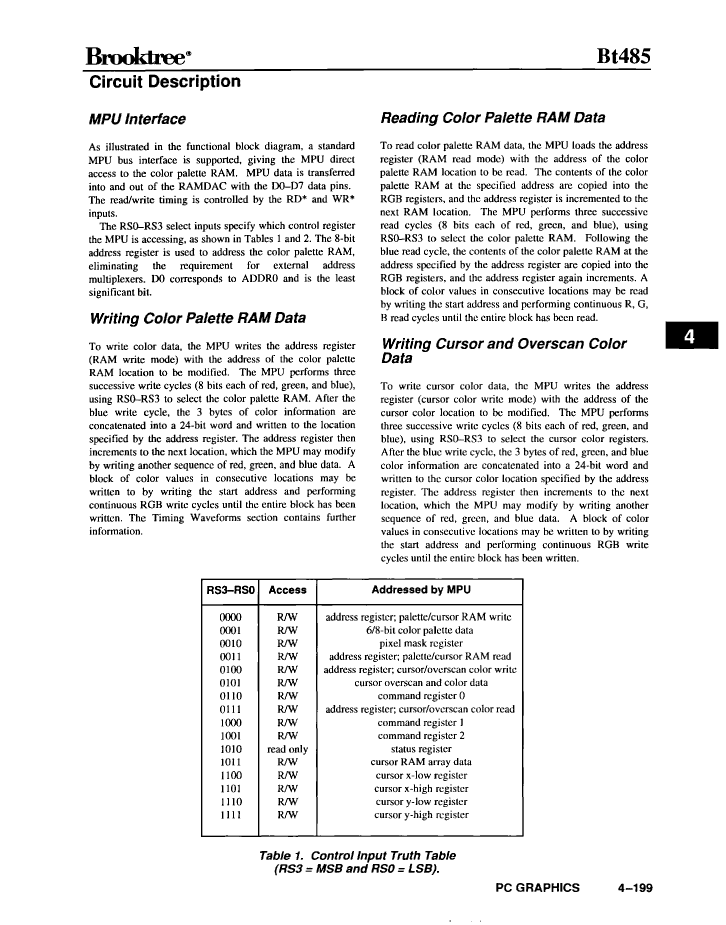

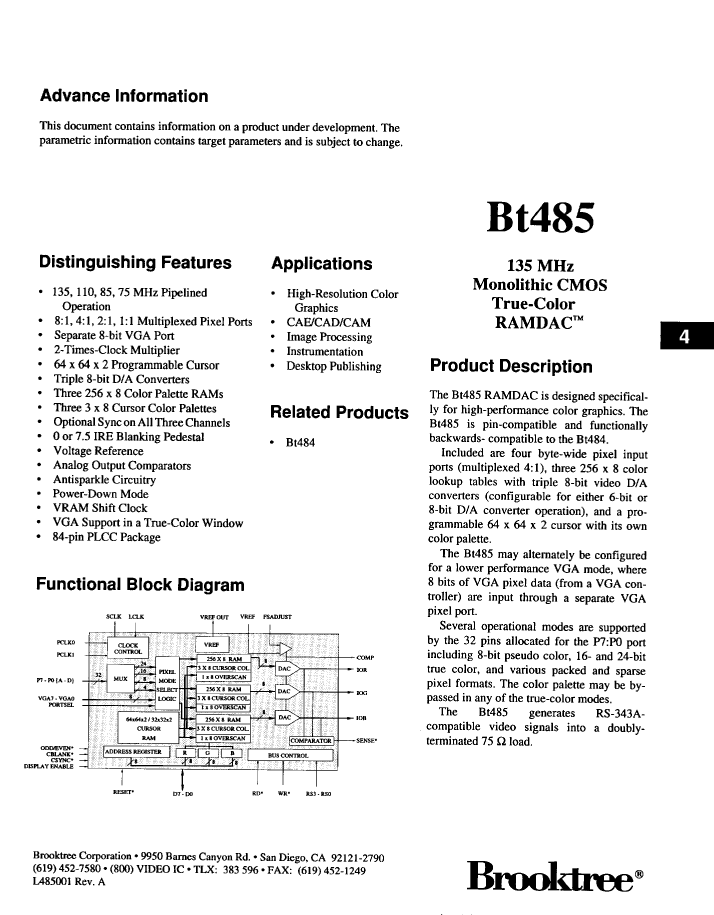

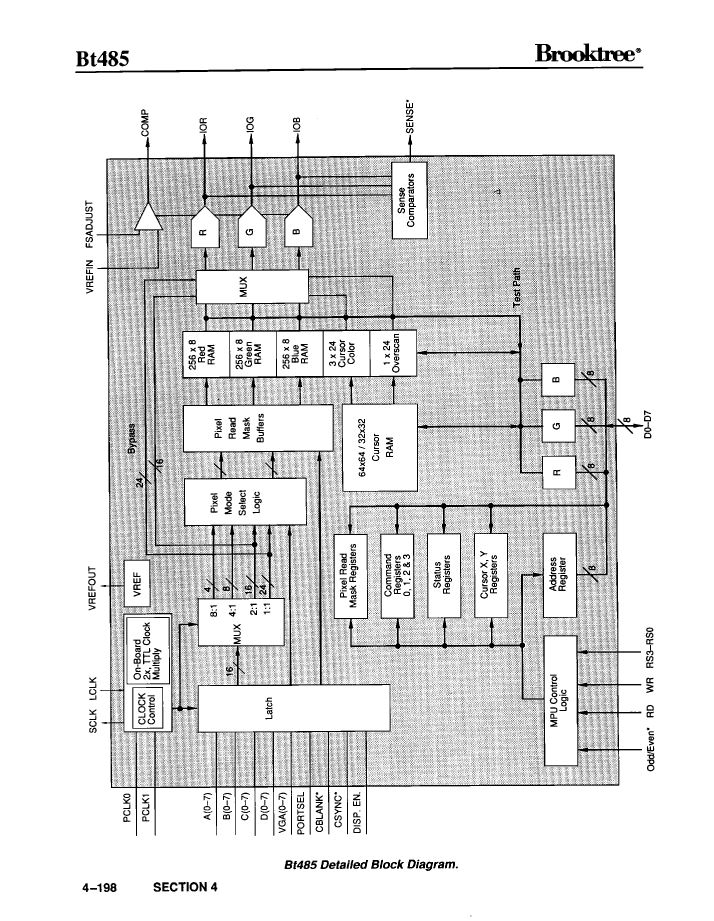

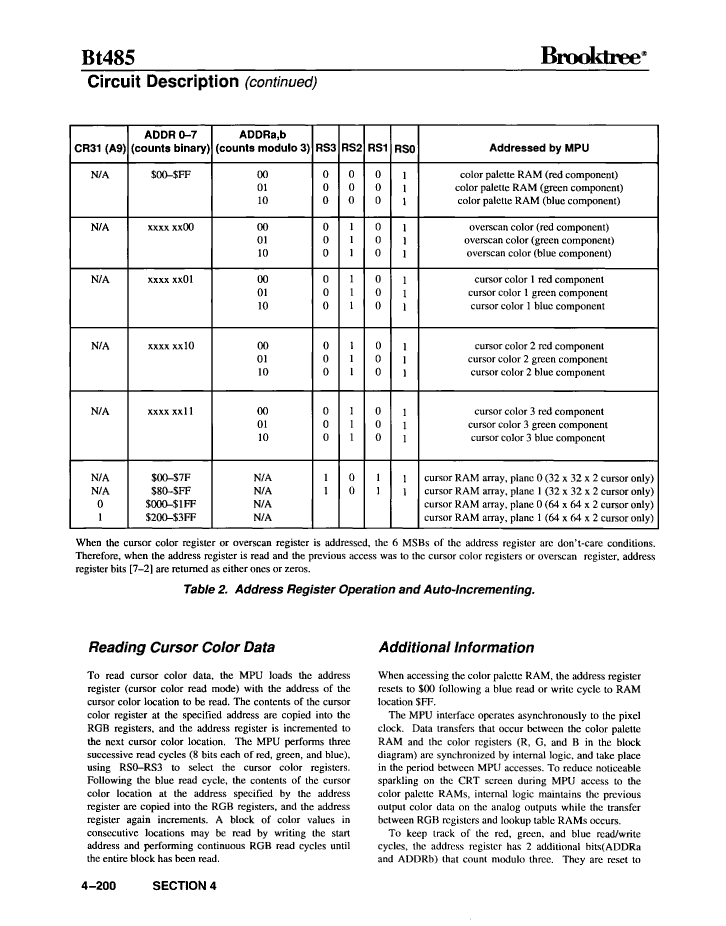

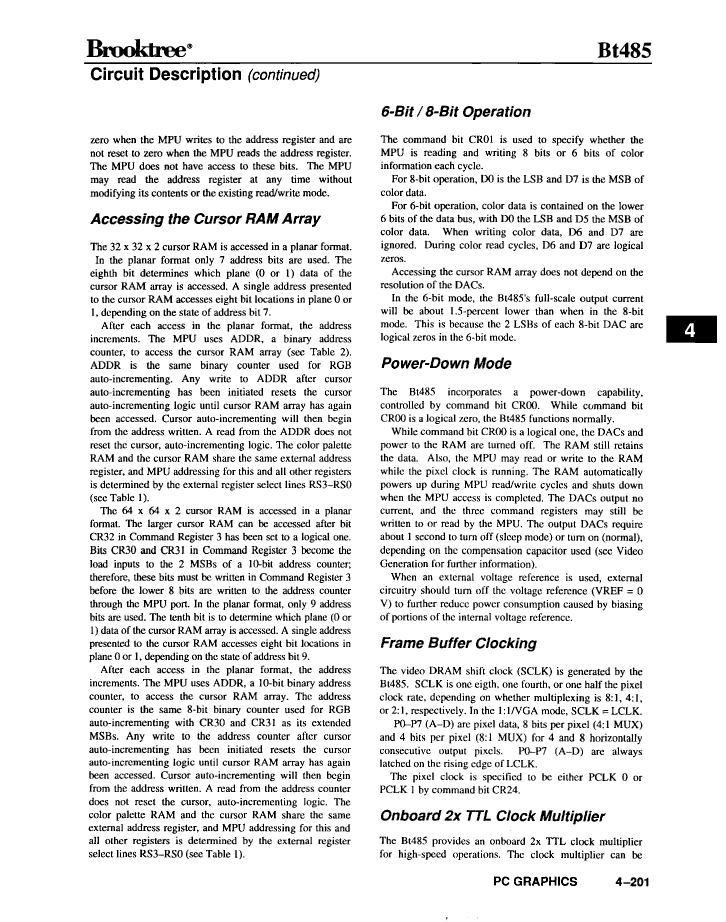

BT485KPJ110 Overview

D/A Converter, 4 Func, Parallel, 8 Bits Input Loading, 0.003us Settling Time, PQCC84

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCJ, LDCC84,1.2SQ
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, 8 BITS
JESD-30 code	S-PQCC-J84
JESD-609 code	e0
Maximum linear error (EL)	0.391%
Number of digits	8
Number of functions	4
Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Nominal settling time (tstl)	0.003 µs
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	BT485KPJ110	BT485KPJ135
Description	D/A Converter, 4 Func, Parallel, 8 Bits Input Loading, 0.003us Settling Time, PQCC84	D/A Converter, 4 Func, Parallel, 8 Bits Input Loading, 0.003us Settling Time, PQCC84
Is it Rohs certified?	incompatible	incompatible
package instruction	QCCJ, LDCC84,1.2SQ	QCCJ, LDCC84,1.2SQ
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	S-PQCC-J84	S-PQCC-J84
JESD-609 code	e0	e0
Maximum linear error (EL)	0.391%	0.391%
Number of digits	8	8
Number of functions	4	4
Number of terminals	84	84
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ	LDCC84,1.2SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal settling time (tstl)	0.003 µs	0.003 µs
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
