RHEF900: DescriptionPTC Resettable Fuse, 0.017ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size38KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RHEF900 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RHEF900	-	-	View	Buy Now

RHEF900 Overview

PTC Resettable Fuse, 0.017ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

RHEF900 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
Other features	RESISTANCE RANGE(MIN-MAX): 0.0074-0.01200
JESD-609 code	e3
Manufacturer's serial number	RHEF
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated (AC) voltage (URac)	16 V
Rated power dissipation(P)	5 W
resistance	0.017 Ω
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING
Base Number Matches	1

Preview

Download Datasheet

View All

PolySwitch®

PTC Devices

Overcurrent Protection Device

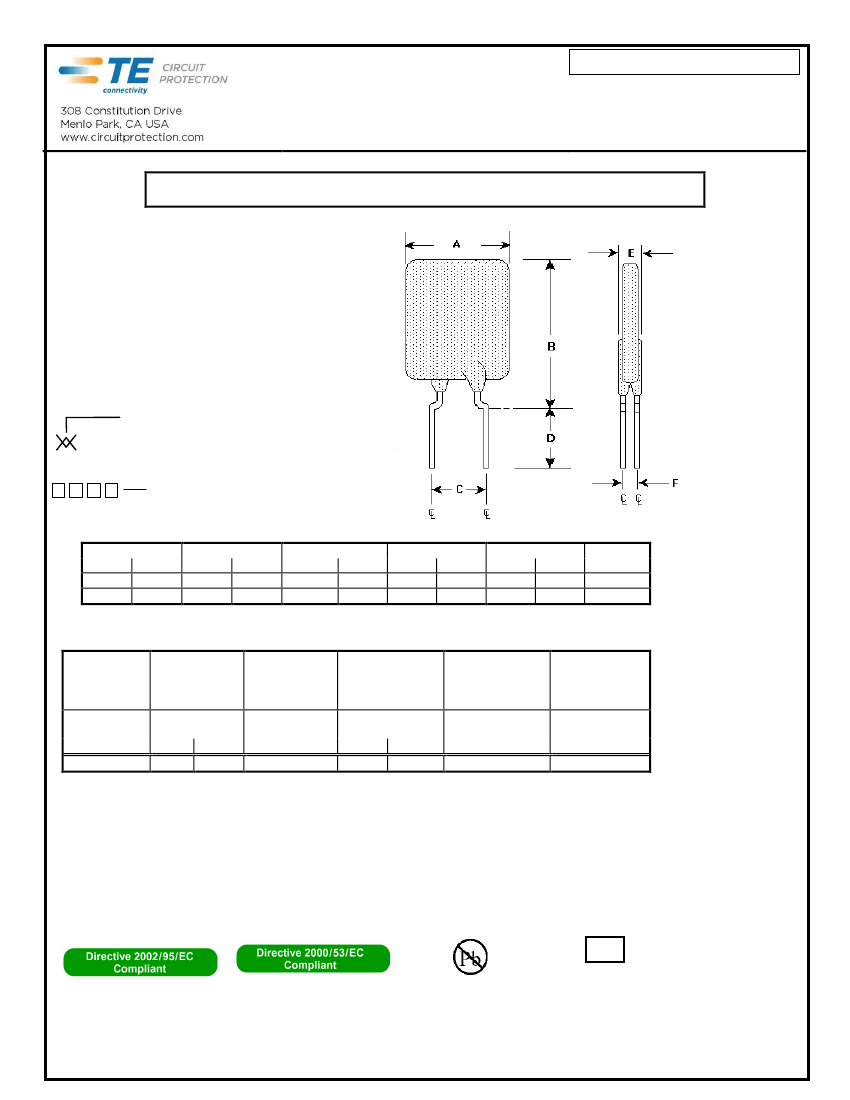

PRODUCT: RHEF900

DOCUMENT: SCD25585

REV LETTER: E

REV DATE: MARCH 07, 2013

PAGE NO.: 1 OF 1

Specification Status: Released

Electrical Rating

Voltage: 16V MAX

Current: 100A MAX

Insulating Material:

Cured, Flame Retardant Epoxy Polymer

meets UL94 V-0 Requirements

Lead Material:

20 AWG Tin Plated Copper

Part Marking:

Manufacturer’s Mark

and Part Identification

Lot Identification

TABLE I. DIMENSIONS:

mm:

in*:

MIN

4.3

(0.17)

MAX

5.8

(0.23)

MIN

7.6

(0.30)

MAX

MIN

MAX

3.0

(0.12)

MIN

MAX

MIN

MAX

16.5

25.7

(0.65)

(1.01)

*Rounded off approximation

TYP

1.2

(0.05)

TABLE II. PERFORMANCE RATINGS:

I HOLD

RATED

CURRENT

AMPS

AT 25°

HOLD

9.0

CURRENT

RATINGS

ONE-HOUR

POST-TRIP

RESISTANCE

STANDARD TRIP

SECONDS AT

OHMS

25°

C,45A

AT 25°

MAX

MIN

MAX

10.0

0.0074 0.0120

0.017

TIME TO

TRIP

INITIAL

RESISTANCE

VALUES

NOMINAL

TRIPPED

POWER

DISSIPATION

WATTS AT

25° 16V

TYP

5.0

AMPS AT

25°

HOLD TRIP

9.0

16.5

Agency Recognitions:

Reference Documents:

Precedence:

Effectivity:

CAUTION:

UL, CSA, TUV

PS300

This specification takes precedence over documents referenced herein.

Reference documents shall be the issue in effect on the date of invitation for bid.

Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.

Materials Information

ROHS Compliant

ELV Compliant

Pb-Free

Halogen Free*

* Halogen Free refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm.

RHEF900 Related Products

	RHEF900	RHEF900-AP	RHEF900-2
Description	PTC Resettable Fuse, 0.017ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown
Other features	RESISTANCE RANGE(MIN-MAX): 0.0074-0.01200	RESISTANCE RANGE(MIN-MAX): 0.0074-0.01200	RESISTANCE RANGE(MIN-MAX): 0.0074-0.01200
JESD-609 code	e3	e3	e3
Manufacturer's serial number	RHEF	RHEF	RHEF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	AMMO PACK	TR, 14.6 INCH
Rated (AC) voltage (URac)	16 V	16 V	16 V
Rated power dissipation(P)	5 W	5 W	5 W
Resistor type	PTC RESETTABLE FUSE	PTC RESETTABLE FUSE	PTC RESETTABLE FUSE
surface mount	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE
Thermistor Applications	TEMPERATURE SENSING	TEMPERATURE SENSING	TEMPERATURE SENSING
Base Number Matches	1	1	1
Terminal surface	-	TIN	TIN
