PEN0F305X-C

Description
Circular Connector, 5 Contact(s), Avional, Male, Crimp Terminal, Socket,
CategoryThe connector    The connector
File Size35KB，1 Pages
ManufacturerLEMO
Websitehttp://www.lemo-china.com
Environmental Compliance
Download Datasheet Parametric View All

PEN0F305X-C Overview

Circular Connector, 5 Contact(s), Avional, Male, Crimp Terminal, Socket,

PEN0F305X-C Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codenot_compliant
ECCN codeEAR99
Back shell typeSOLID
Body/casing typeSOCKET
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation typeCABLE AND PANEL
Shell surfaceNICKEL
Shell materialAVIONAL
Termination typeCRIMP
Total number of contacts5
Base Number Matches1

Preview

Download Datasheet
®
®
M
øA
ød
L
øA
ød
L
S1 M
øB
E maxi
S2
øA
ød
e
D
L
ød
øB
H
A
øC
12
@@
?h@@
@@
?h@@
@@
?h@@
@@
?h@@
@@
?h@@
@@
?h@@
@@@@@@@@?e@@@@@@@@?e@@@@@@@@
@@@@@@@@?e@@@@@@@@?e@@@@@@@@

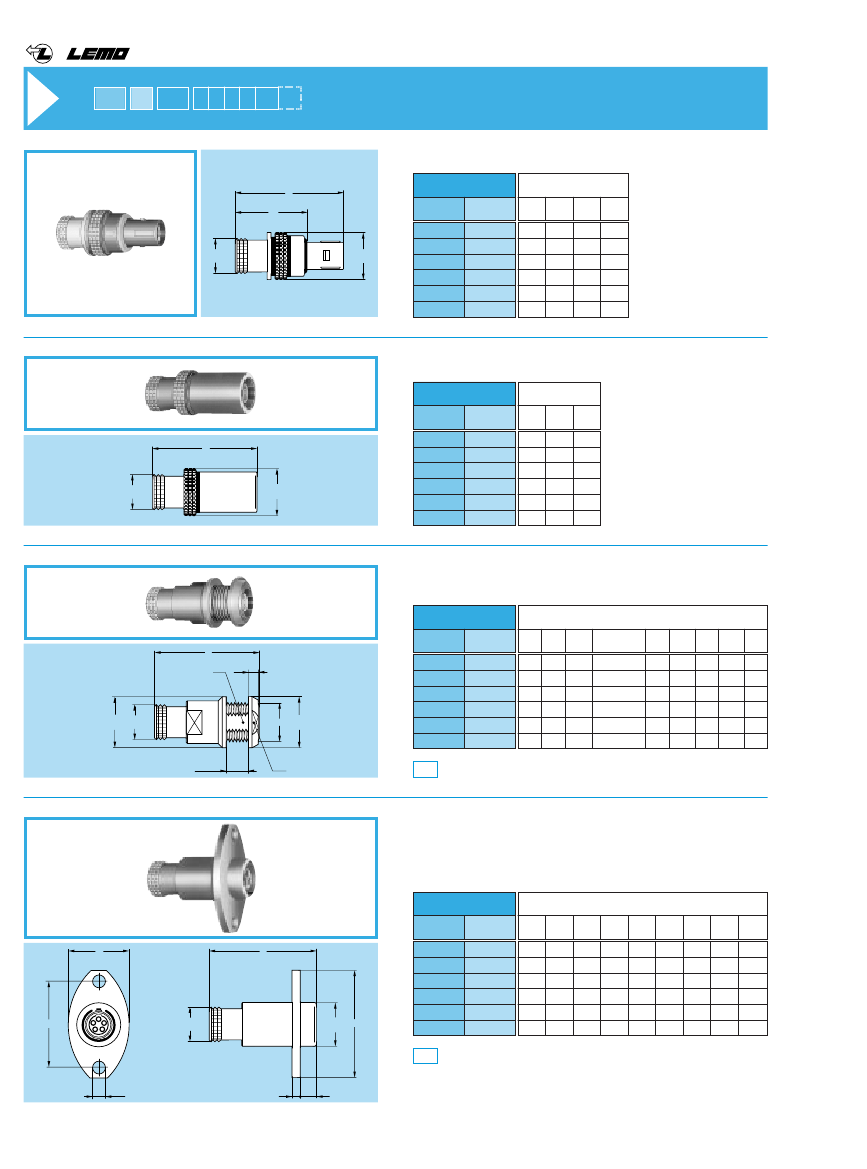

Models - Series
FGN
Straight plug with keys (code N, P, S, W or X)
L
M
@@
@@
@@
@@
@@
@@
@@
@@
@@@@@@@@? @@@@@@@@?
@@@
@@?@@@@@? @@@@@@@@?
@@?
@@?
@@?
@@?
@@?
@@@@@@@@
@@@@@@@@
g@@
g@@
g@@
g@@
g@@
g@@
@@
@@
@@
@@
@@
@@
@@
@@
Reference
Model
FGN
FGN
FGN
FGN
FGW
FGW
Series
0F
1F
2F
3F
4F
5F
Dimensions (mm)
A
12
14
17
19
26
35
d
9.0
10.7
14.0
16.0
21.2
30.2
L
27.5
27.5
27.5
27.5
30.0
30.0
M
18.0
18.1
18.2
18.2
20.8
20.8
PHN
Straight socket with keys (code N, P, S, W or X)
Reference
Model
PHN
PHN
PHN
PHN
PHW
PHW
Series
0F
1F
2F
3F
4F
5F
Dim. (mm)
A
12
14
17
19
26
35
d
9.0
10.7
14.0
16.0
21.2
30.2
L
26.7
26.7
26.7
26.7
26.7
26.7
PEN
Straight socket, nut fixing, with keys
(code N, P, S, W or X),
(back panel mounting)
Reference
Model
PEN
PEN
PEN
PEN
PEW
PEW
Series
0F
1F
2F
3F
4F
5F
A
13
17
20
22
29
38
B
13
17
20
22
29
38
d
9.0
10.7
14.0
16.0
21.2
30.2
Dimensions (mm)
e
M10x0.75
M13x0.75
M16x1.00
M18x1.00
M24x1.00
M33x1.00
E
6.0
6.2
6.4
6.4
6.4
6.4
L
26.7
26.7
26.7
26.7
26.7
26.7
M
2.5
3.2
4.0
4.0
5.0
5.0
S1
9.0
11.5
14.5
16.5
22.0
31.0
S2
11
14
17
19
25
34
P1
Panel cut-out
EBN
Straight socket with flange and keys
(code N, P, S, W or X), 2 holes fixing
Reference
Model
EBN
EBN
EBN
EBN
EBW
EBW
Series
0F
1F
2F
3F
4F
5F
A
27
27
32
38
41
44
B
11
13
16
18
23
32
C
3.2
3.2
3.2
3.2
3.2
3.2
Dimensions (mm)
d
9.0
10.7
14.0
16.0
21.2
30.2
D
18
15
18
20
26
33
H
21.4
21.4
25.9
32.5
34.8
38.2
L
26.7
26.7
26.7
26.7
26.7
26.7
M
2
2
2
2
2
2
N
4
4
4
4
4
4
P2
Panel cut-out
N
