89006-1145LF datasheet, PDF - EEWORLD Datasheet

89006-1145LF: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE; CategoryThe connector The connector; File Size2MB，9 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

89006-1145LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	89006-1145LF	-	-	View	Buy Now

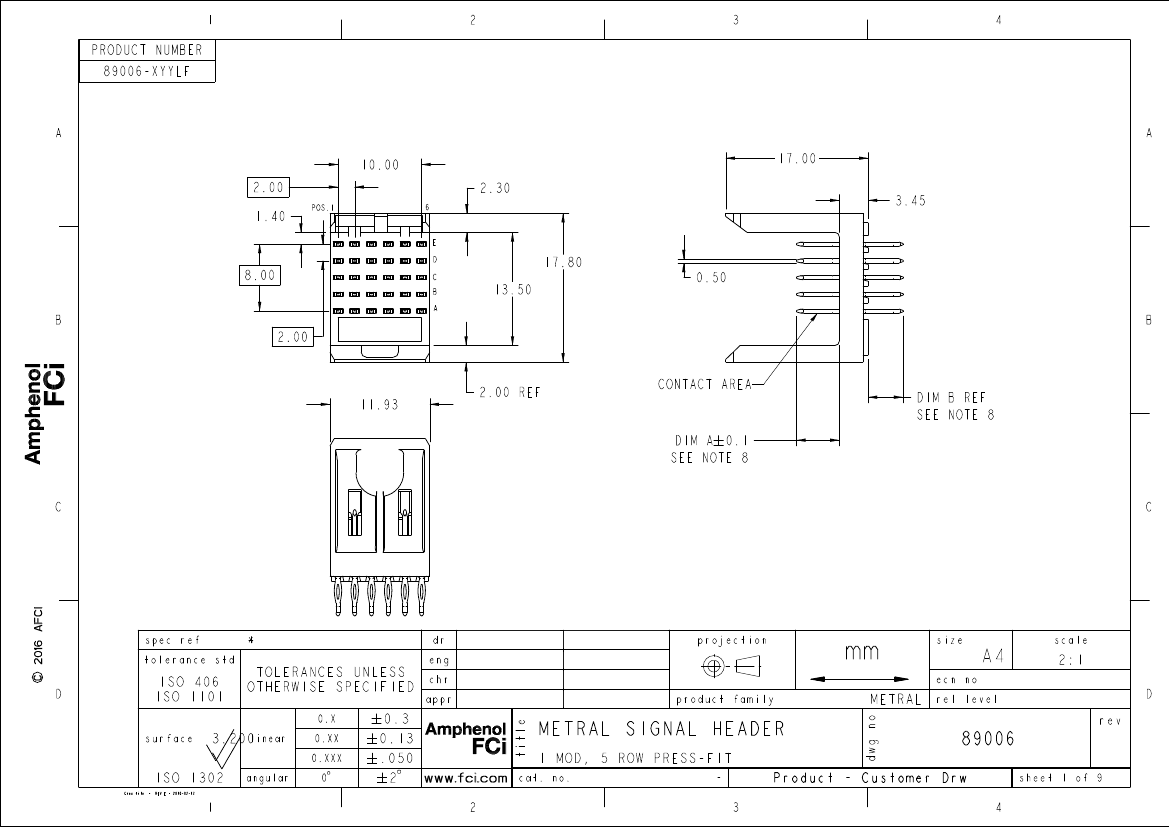

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.701 inch
subject depth	0.669 inch
body length	0.47 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	30
Evacuation force-minimum value	.14734 N
Base Number Matches	1

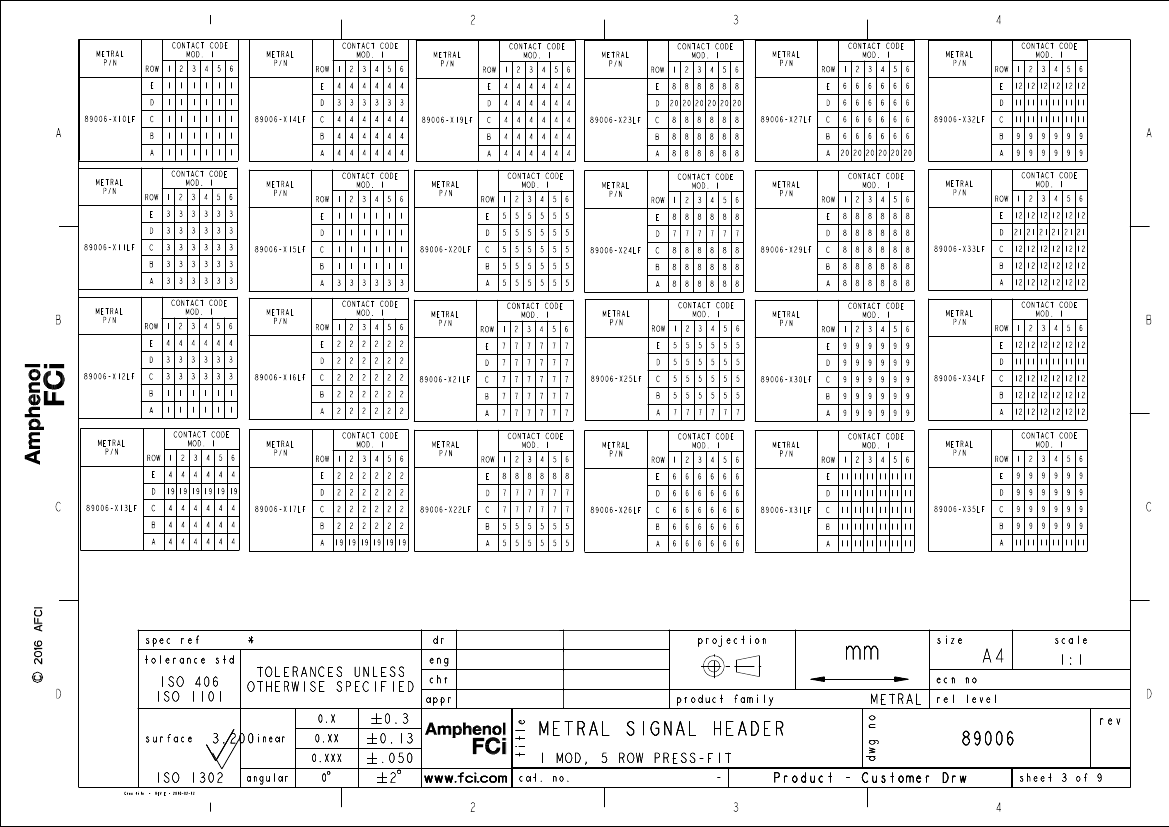

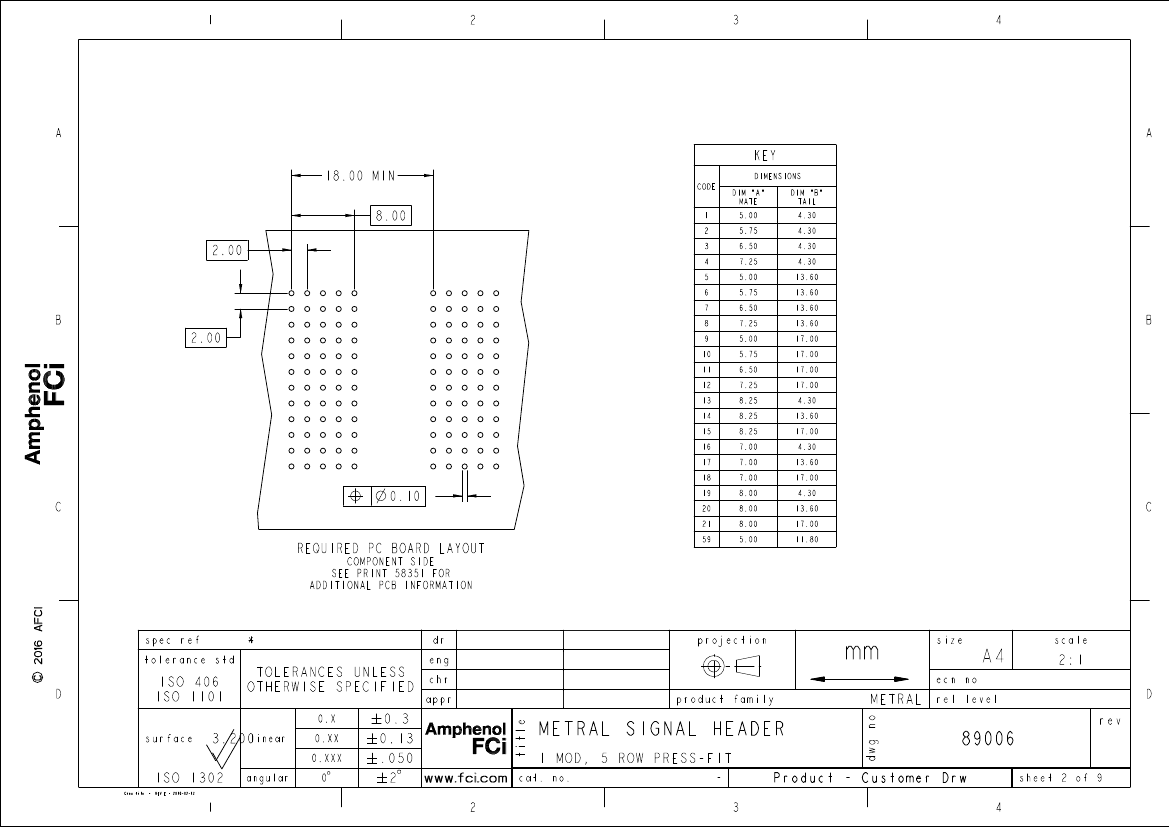

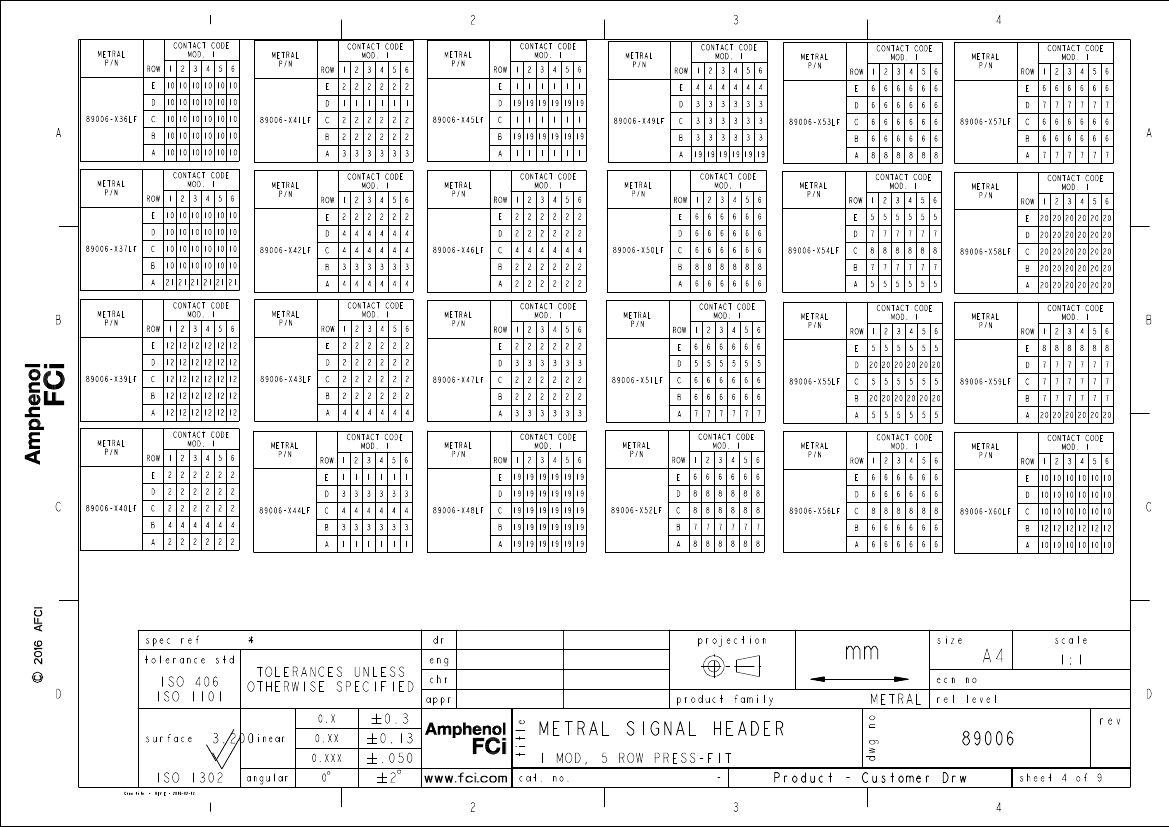

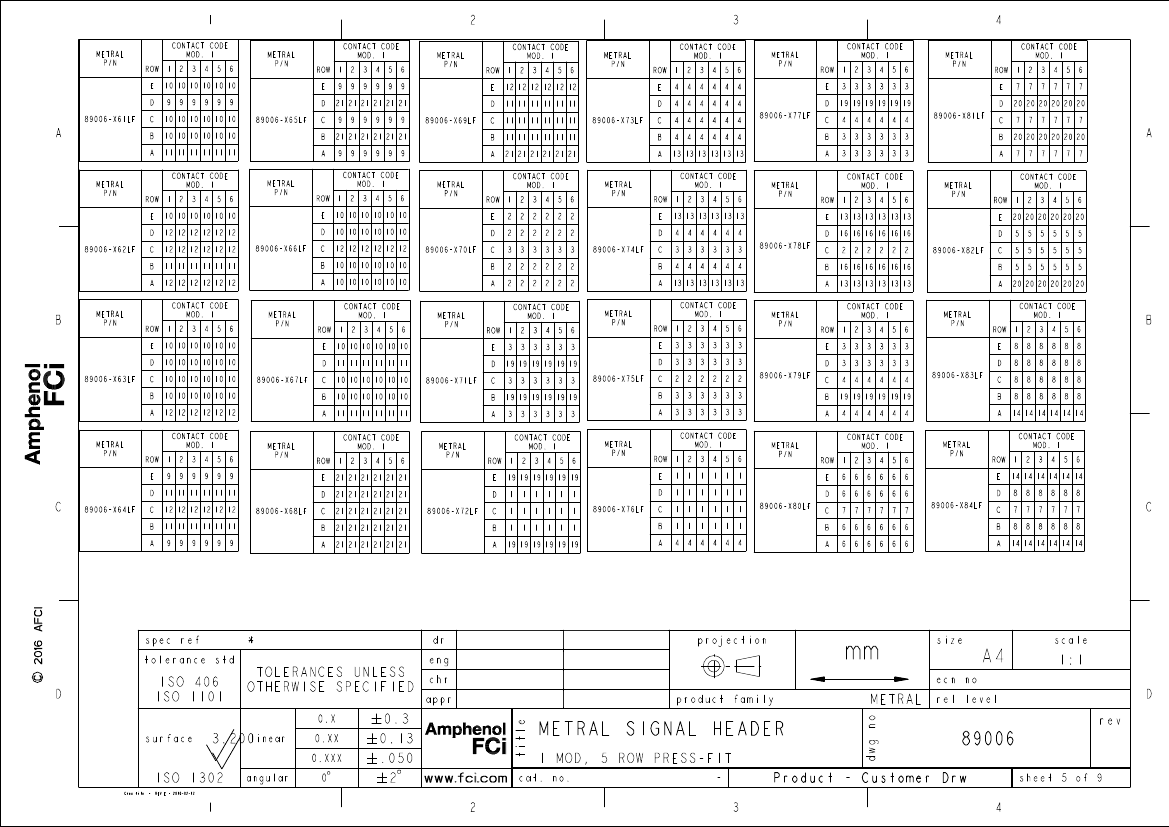

Terran Huang

B T Varghese

K-Paul Biju

2010/07/09

2017/12/04

ELX-I-28075-1

Released

PDS: Rev :BH

STATUS:Released

Printed: Dec 04, 2017
