UPD70337L-8 datasheet, PDF - EEWORLD Datasheet

UPD70337L-8: DescriptionMicrocontroller, 16-Bit, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size451KB，12 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

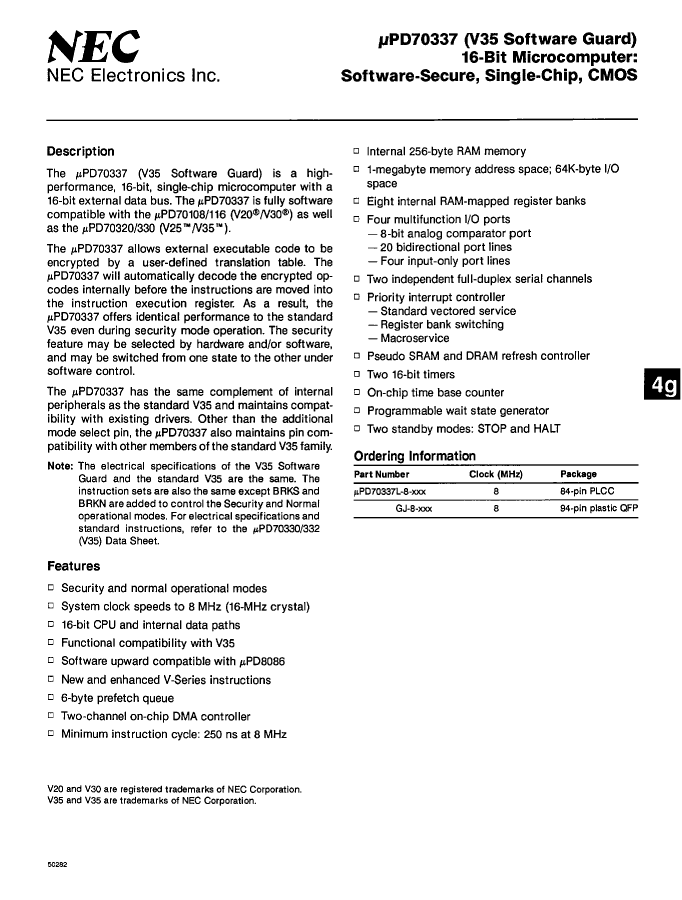

UPD70337L-8 Overview

Microcontroller, 16-Bit, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84

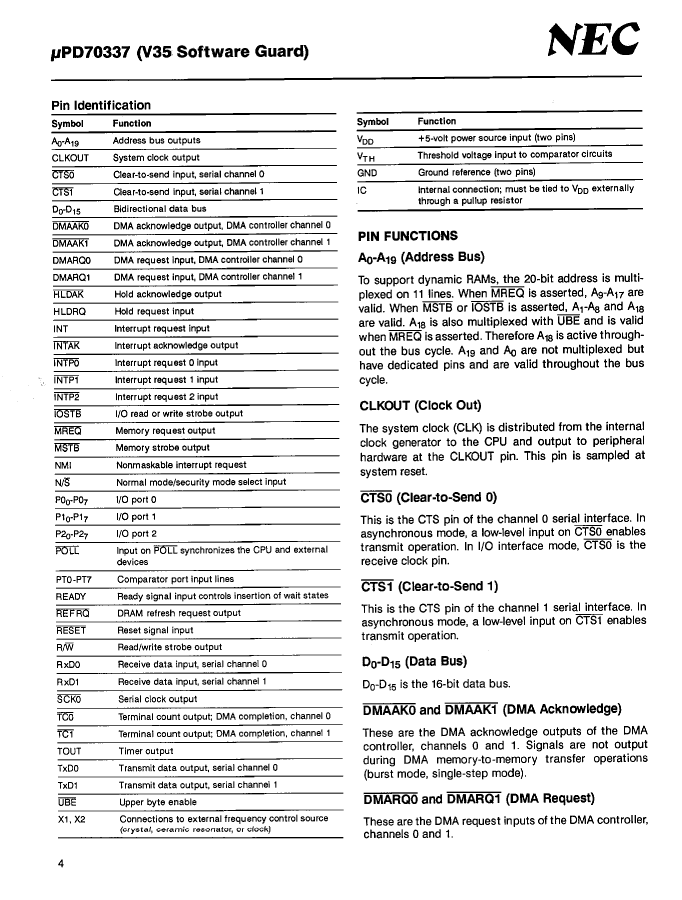

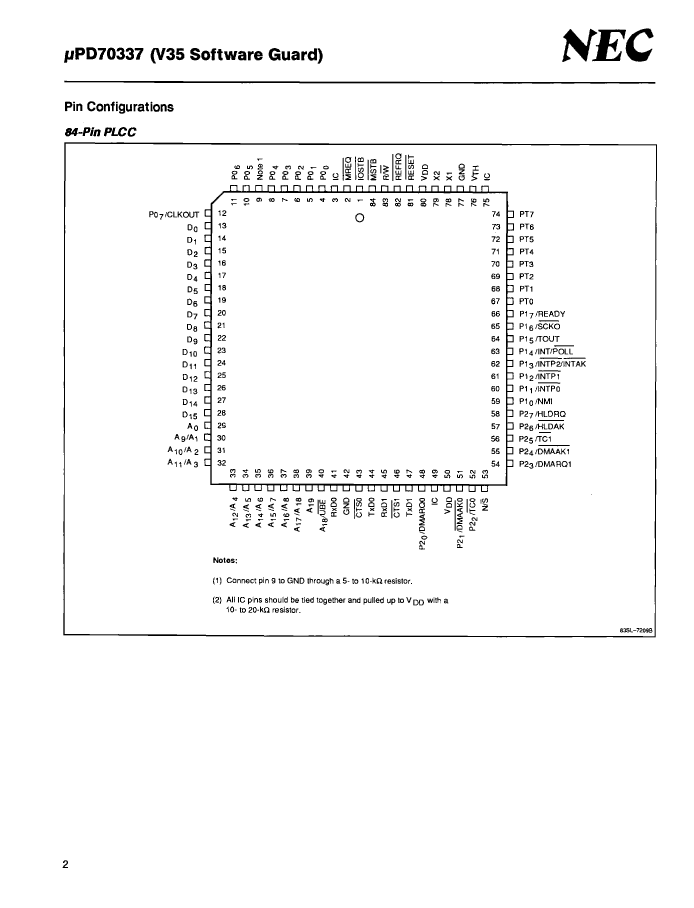

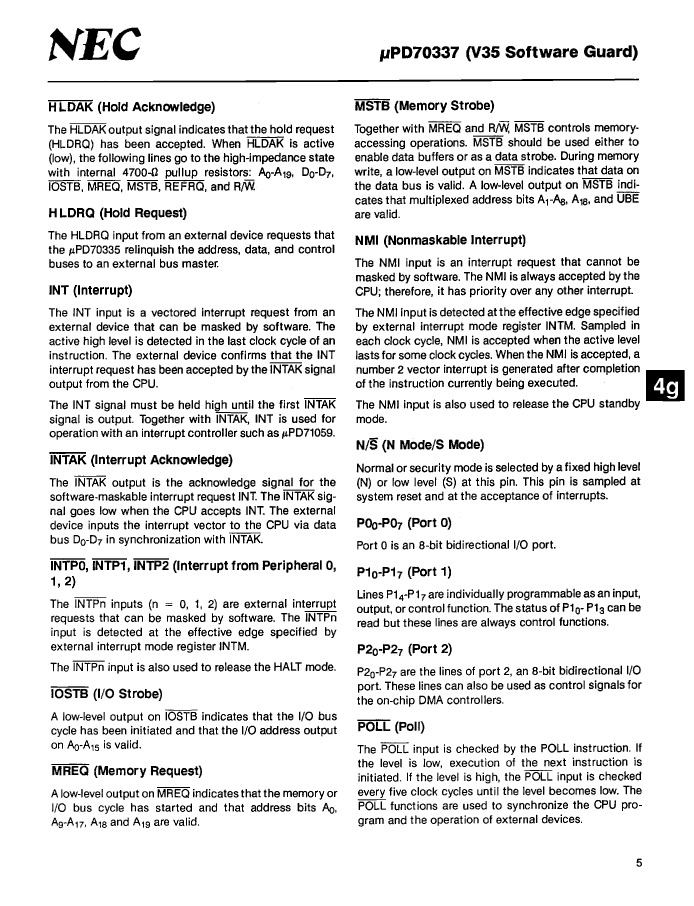

Parameter Name	Attribute value
package instruction	PLASTIC, LCC-84
Reach Compliance Code	unknown
Has ADC	NO
Other features	DRAM REFRESH CONTROLLER
Address bus width	20
bit size	16
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	YES
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J84
length	29.2862 mm
low power mode	YES
Number of DMA channels	2
Number of external interrupt devices	5
Number of I/O lines	24
Number of serial I/Os	2
Number of terminals	84
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	0
Maximum seat height	4.6 mm
speed	8 MHz
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.2862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

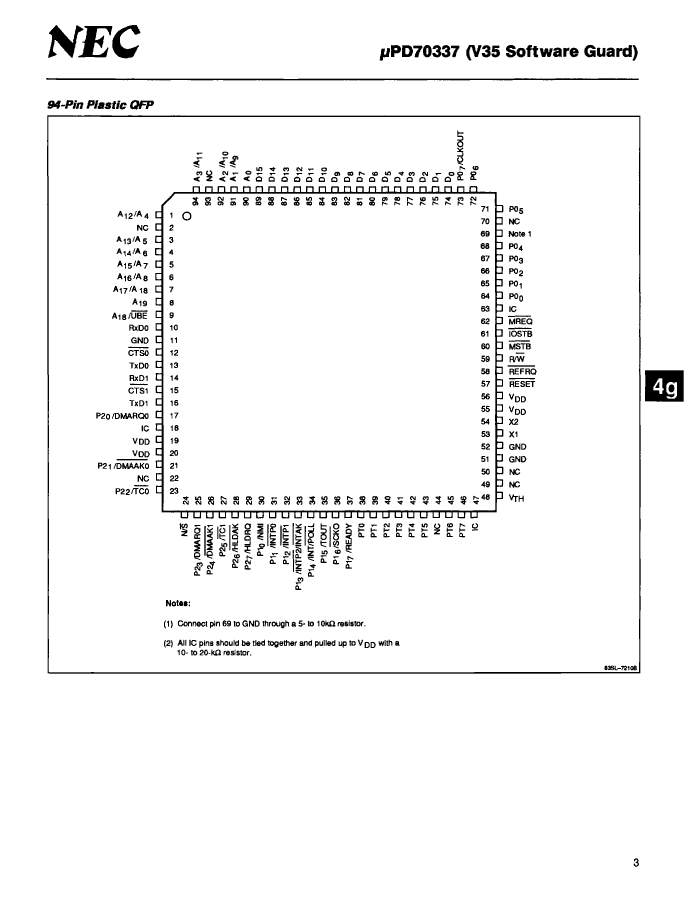

	UPD70337L-8	UPD70337GJ-8
Description	Microcontroller, 16-Bit, 8MHz, CMOS, PQCC84, PLASTIC, LCC-84	Microcontroller, 16-Bit, 8MHz, CMOS, PQFP94, PLASTIC, QFP-94
package instruction	PLASTIC, LCC-84	PLASTIC, QFP-94
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
Other features	DRAM REFRESH CONTROLLER	DRAM REFRESH CONTROLLER
Address bus width	20	20
bit size	16	16
boundary scan	NO	NO
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	YES	YES
External data bus width	16	16
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQCC-J84	S-PQFP-G94
length	29.2862 mm	20 mm
low power mode	YES	YES
Number of DMA channels	2	2
Number of external interrupt devices	5	5
Number of I/O lines	24	24
Number of serial I/Os	2	2
Number of terminals	84	94
Number of timers	2	2
On-chip data RAM width	8	8
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QFP
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	FLATPACK
Certification status	Not Qualified	Not Qualified
RAM (number of words)	256	256
Maximum seat height	4.6 mm	4 mm
speed	8 MHz	8 MHz
Maximum slew rate	120 mA	120 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	GULL WING
Terminal pitch	1.27 mm	0.8 mm
Terminal location	QUAD	QUAD
width	29.2862 mm	20 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
