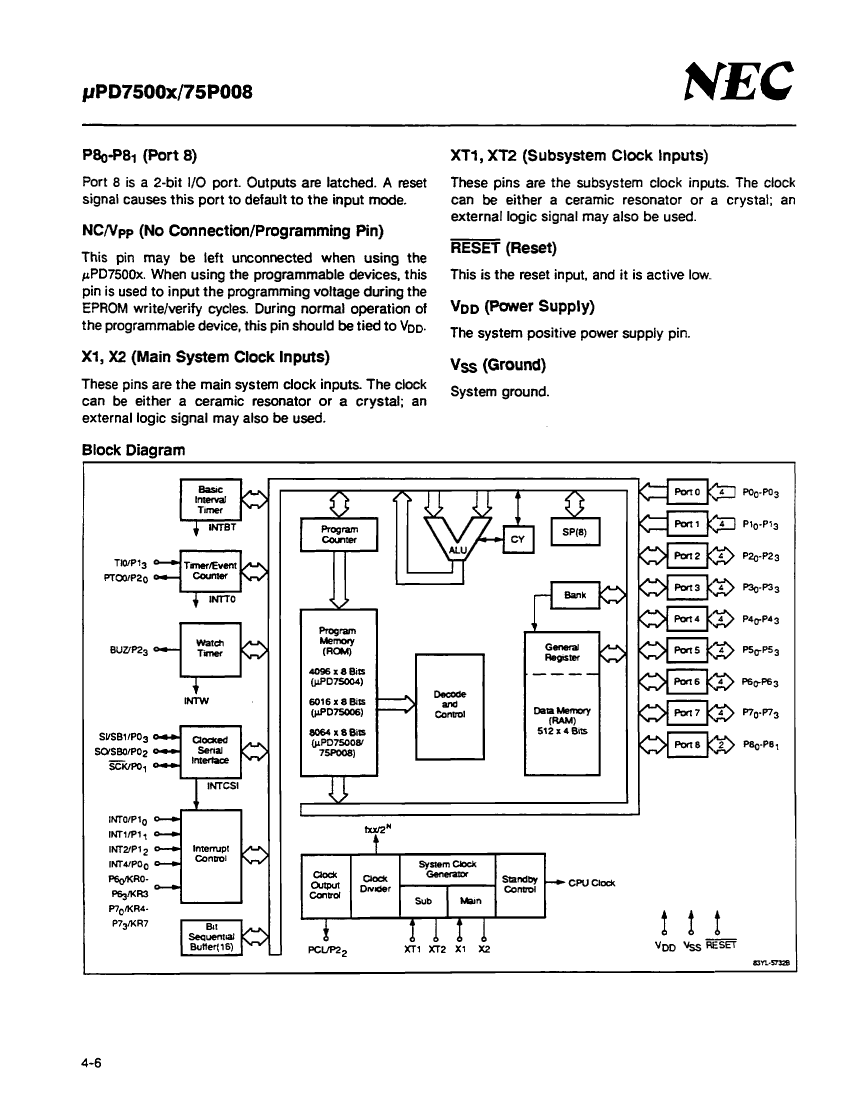

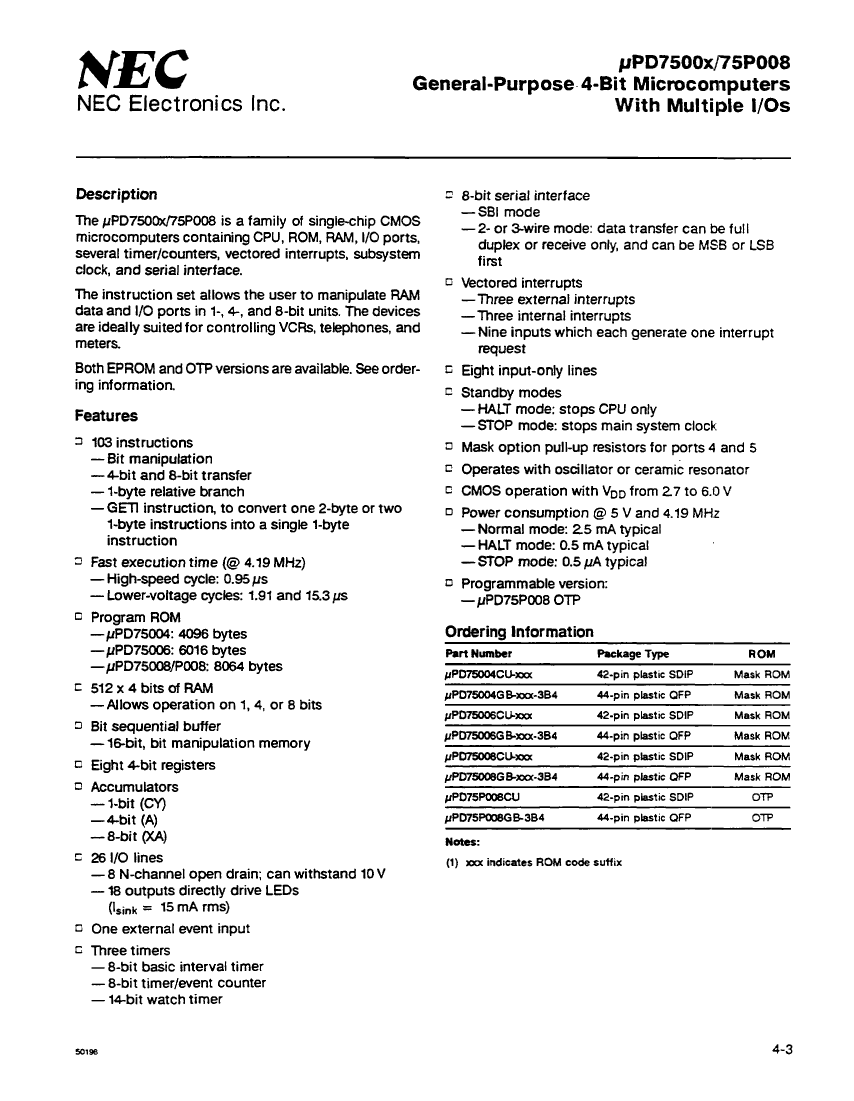

Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PDIP42, PLASTIC, SDIP-42

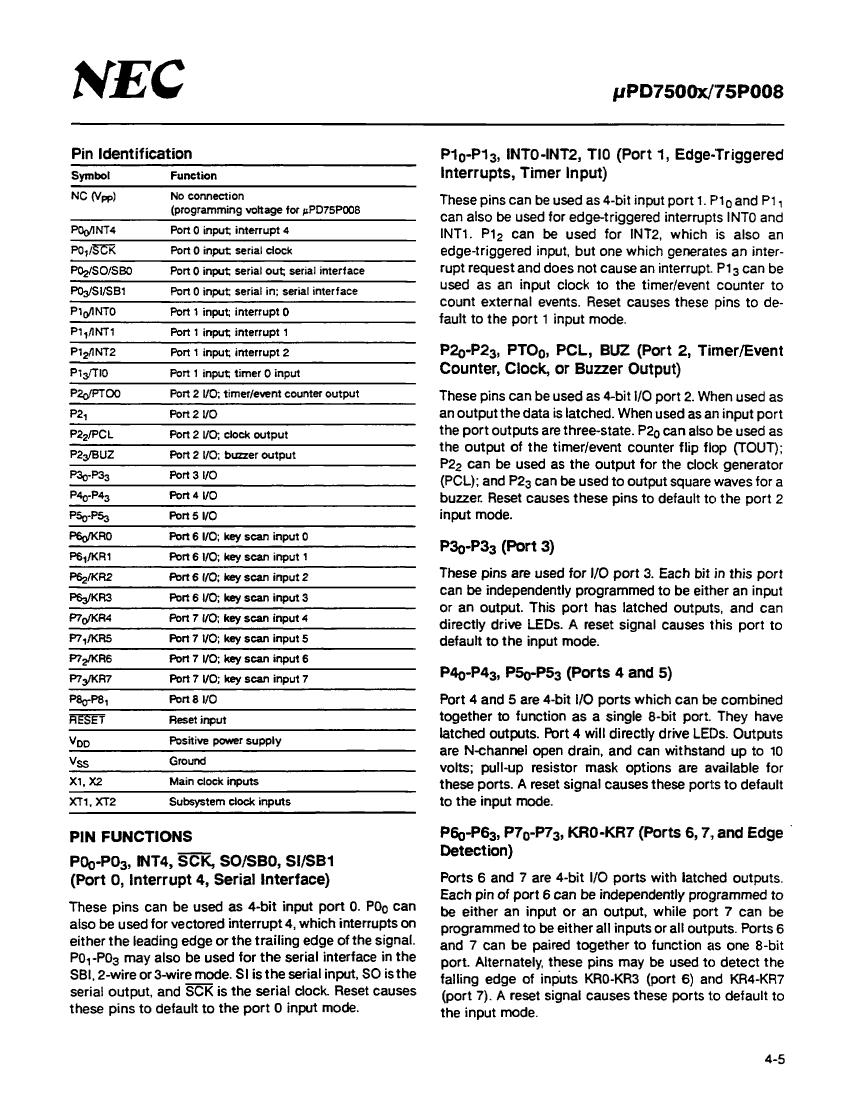

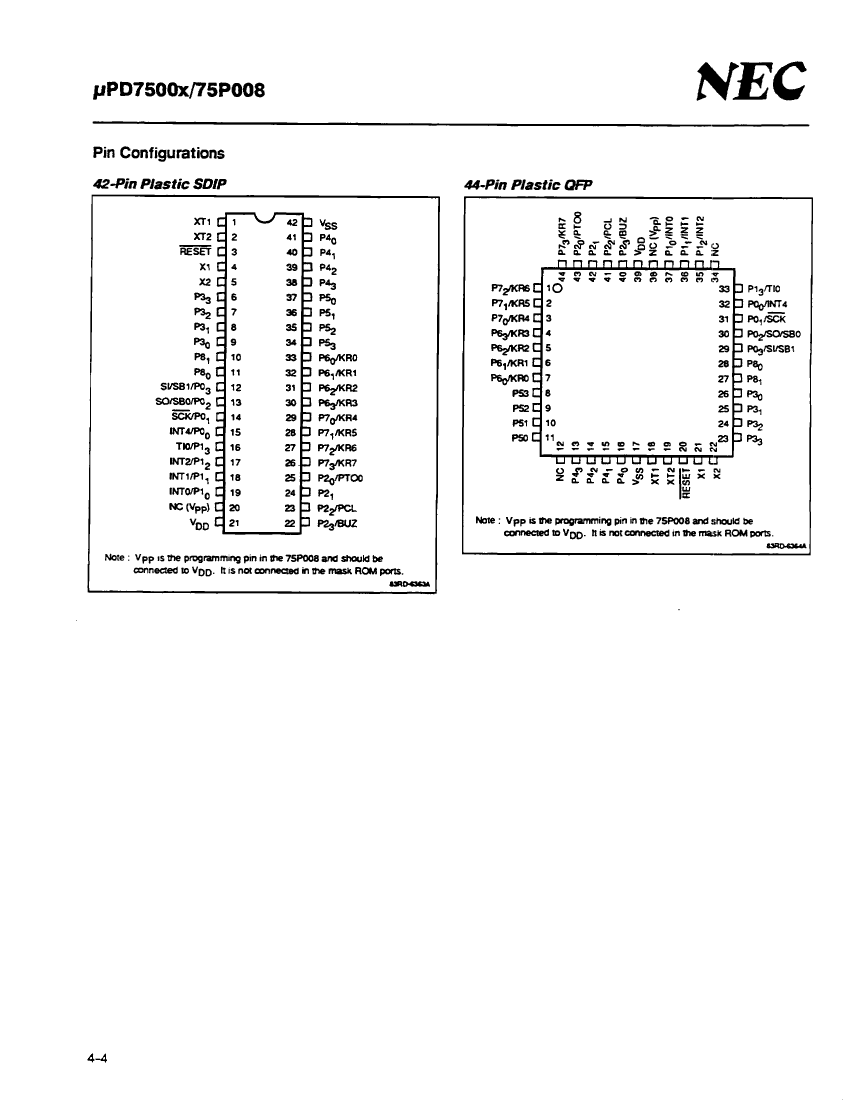

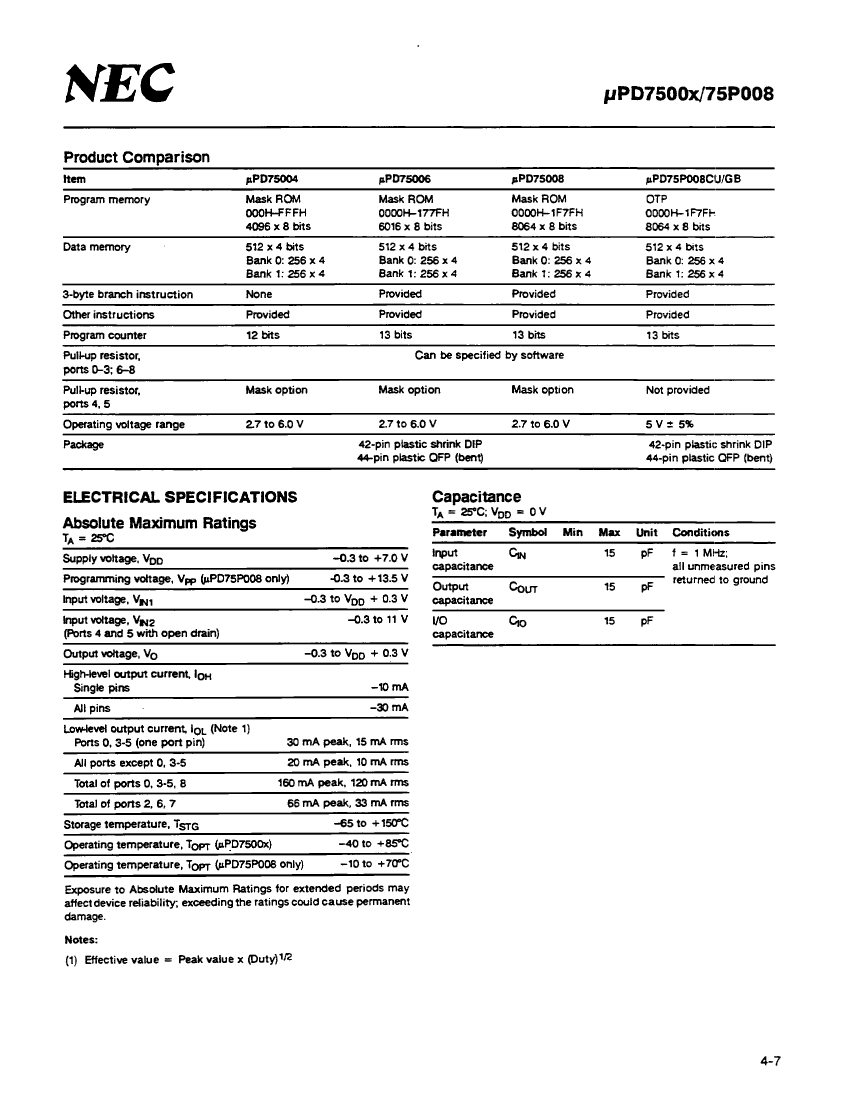

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | PLASTIC, SDIP-42 |
| Reach Compliance Code | compliant |
| Has ADC | NO |
| Address bus width | |
| bit size | 4 |
| maximum clock frequency | 5 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | |
| JESD-30 code | R-PDIP-T42 |
| JESD-609 code | e0 |
| Number of I/O lines | 34 |
| Number of terminals | 42 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SDIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| ROM programmability | MROM |
| Maximum seat height | 5.08 mm |
| speed | 4.19 MHz |
| Maximum slew rate | 8 mA |
| Maximum supply voltage | 6 V |
| Minimum supply voltage | 2.7 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 1.778 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Base Number Matches | 1 |
| UPD75006CU-XXX | UPD75P008GB-3B4 | UPD75008GB-XXX-3B4 | UPD75004CU-XXX | UPD75004GB-XXX-3B4 | UPD75P008CU | |
|---|---|---|---|---|---|---|
| Description | Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PDIP42, PLASTIC, SDIP-42 | Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PQFP44, PLASTIC, QFP-44 | Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP44, PLASTIC, QFP-44 | Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PDIP42, PLASTIC, SDIP-42 | Microcontroller, 4-Bit, MROM, 4.19MHz, CMOS, PQFP44, PLASTIC, QFP-44 | Microcontroller, 4-Bit, OTPROM, 4.19MHz, CMOS, PDIP42, PLASTIC, SDIP-42 |
| package instruction | PLASTIC, SDIP-42 | PLASTIC, QFP-44 | PLASTIC, QFP-44 | PLASTIC, SDIP-42 | PLASTIC, QFP-44 | PLASTIC, SDIP-42 |
| Reach Compliance Code | compliant | unknown | compliant | compliant | compliant | unknown |
| Has ADC | NO | NO | NO | NO | NO | NO |
| bit size | 4 | 4 | 4 | 4 | 4 | 4 |
| maximum clock frequency | 5 MHz | 5 MHz | 5 MHz | 5 MHz | 5 MHz | 5 MHz |
| DAC channel | NO | NO | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO | NO | NO |
| JESD-30 code | R-PDIP-T42 | S-PQFP-G44 | S-PQFP-G44 | R-PDIP-T42 | S-PQFP-G44 | R-PDIP-T42 |
| Number of I/O lines | 34 | 34 | 34 | 34 | 34 | 34 |
| Number of terminals | 42 | 44 | 44 | 42 | 44 | 42 |
| Maximum operating temperature | 85 °C | 70 °C | 85 °C | 85 °C | 85 °C | 70 °C |
| Minimum operating temperature | -40 °C | -10 °C | -40 °C | -40 °C | -40 °C | -10 °C |
| PWM channel | NO | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SDIP | QFP | QFP | SDIP | QFP | SDIP |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE, SHRINK PITCH | FLATPACK | FLATPACK | IN-LINE, SHRINK PITCH | FLATPACK | IN-LINE, SHRINK PITCH |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| ROM programmability | MROM | OTPROM | MROM | MROM | MROM | OTPROM |
| Maximum seat height | 5.08 mm | 3 mm | 3 mm | 5.08 mm | 3 mm | 5.08 mm |
| speed | 4.19 MHz | 4.19 MHz | 4.19 MHz | 4.19 MHz | 4.19 MHz | 4.19 MHz |
| Maximum slew rate | 8 mA | 15 mA | 8 mA | 8 mA | 8 mA | 15 mA |
| Maximum supply voltage | 6 V | 5.5 V | 6 V | 6 V | 6 V | 5.5 V |
| Minimum supply voltage | 2.7 V | 4.5 V | 2.7 V | 2.7 V | 2.7 V | 4.5 V |
| surface mount | NO | YES | YES | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.778 mm | 0.8 mm | 0.8 mm | 1.778 mm | 0.8 mm | 1.778 mm |
| Terminal location | DUAL | QUAD | QUAD | DUAL | QUAD | DUAL |
| width | 15.24 mm | 10 mm | 10 mm | 15.24 mm | 10 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | incompatible | - |
| JESD-609 code | e0 | - | e0 | e0 | e0 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Terminal surface | TIN LEAD | - | TIN LEAD | TIN LEAD | TIN LEAD | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
