8780K11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 8780K11

8780K11: DescriptionToggle Switch, SPDT, Latched, 175A, 28VDC, Lever Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size88KB，2 Pages; ManufacturerSafran Group

Download Datasheet Parametric View All

8780K11 Overview

Toggle Switch, SPDT, Latched, 175A, 28VDC, Lever Actuator, Panel Mount,

8780K11 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Actuator type	LEVER
body width	51.31 mm
body height	55.58 mm
Body length or diameter	82.93 mm
Contact (AC) maximum rated R load	55A@115VAC
Maximum contact current (AC)	55 A
Maximum contact current (DC)	175 A
Contact (DC) maximum rated R load	175A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Electrical life	10000 Cycle(s)
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
Minimum operating temperature	-55 °C
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Base Number Matches	1

Preview

Download Datasheet

View All

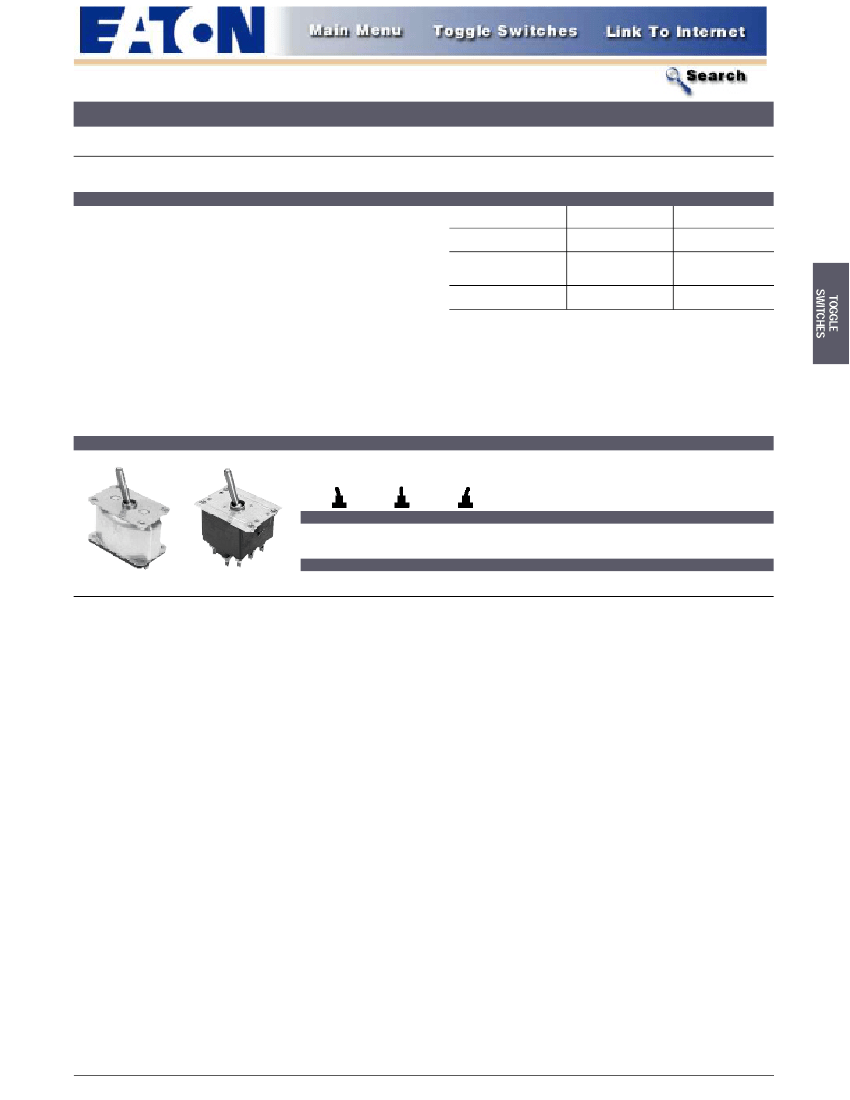

HIGH CAPACITY SWITCHES

Series—8780, 8790

High Capacity Flush Mounted Switches

FEATURES

• 1 and 3 pole circuitr y

• Flush mounted (5 holes required)

• High capacity ratings

• Terminal stud termination

SPECIFICATIONS

• Military approved to MIL-S-3950C and

E1663 specifications

• Current ratings up to 175 Amp on AN3230

type and 80 Amp on E1663 type

• Temperature range: -67°F to +160°F

(-55°C to +71°C)

• Life: 10,000 operations at rated load

20,000 operations mechanical life

• Power studs have .250 [6,35] -20 threads

No. of Catalog

Type of

Poles Number Operation

CURRENT RATINGS

28VDC

Lamp Resistive Inductive

Load

175

115VAC

60 or 400Hz

Lamp Resistive Inductive

Load

7.5

8780K11 Maintained

8781K11

8782K11

8790K4 Maintained

8792K3

SELECTION TABLE

CIRCUIT WITH LEVER IN...

Position

(Logo Side)

Center

Position

Down

Position

MS or Government

Drawing Number

ONE POLE - HIGH CAPACITY

OFF

NONE

OFF

NONE

THREE POLE - HIGH CAPACITY

OFF

NONE

–

E1663-1

-3

AN Part

Number

AN3230-1

-2

-3

–

Catalog

Number

8780K11

8781K11

8782K11

8790K4

8792K3

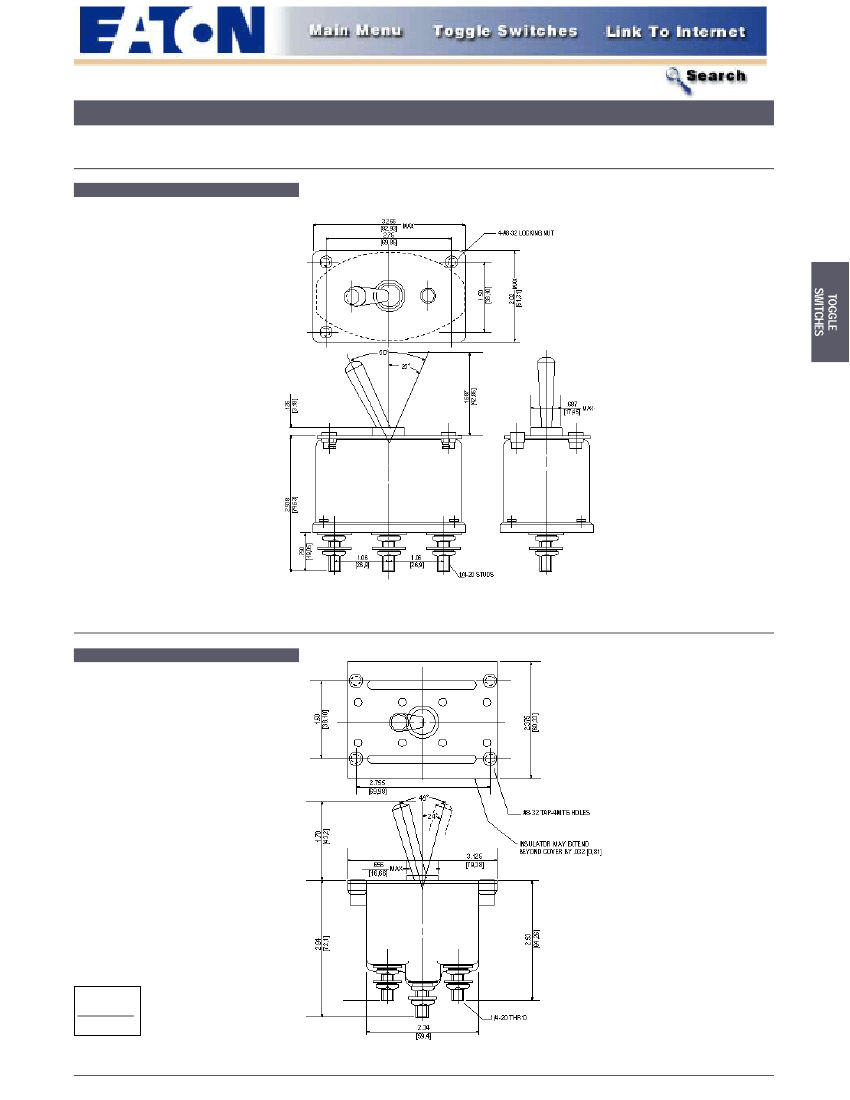

8780

8790
