T491C226K016AS-F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T491C226K016AS-F

T491C226K016AS-F: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2412, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size747KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

T491C226K016AS-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T491C226K016AS-F	-	-	View	Buy Now

T491C226K016AS-F Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 2412, CHIP, ROHS COMPLIANT

T491C226K016AS-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 2412
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MEETS IECQ STANDARD:QC300801/US0001
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	2.5 mm
JESD-609 code	e3
leakage current	0.0036 mA
length	6 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	2412
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	3.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

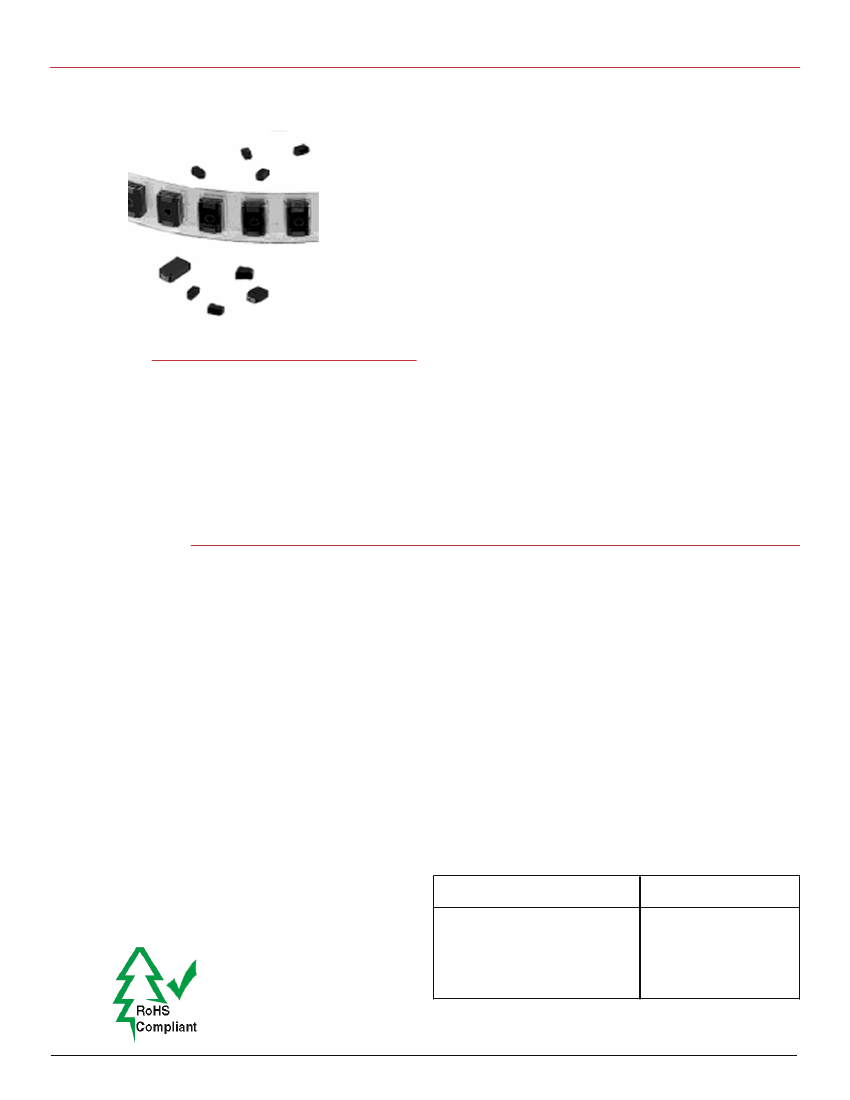

Type T491

Solid Tantalum Chip Capacitors

Solid Tantalum Chip Capacitors for Surface Mount Applications

The T491 Series’ physical outline and dimen-

sions conform to the global standard for tanta-

lum capacitor chips, and the T491 exceeds the

requirements of EIA standard 535BAAC. T491

chips are specifically for automated surface

mount processes and equipment. The termina-

tions

are

100% Matte-Tin.

Reliability and

thermal stability are assured by lead-frame at-

tachments to the tantalum pellet made by micro-

processor-controlled welding and a high tem-

perature silver epoxy adhesive. Standard pack-

aging is compatible with all tape-fed placement

units and with EIA RS- 481-1 tape and reel speci-

fication.

♦

Specifications

0.10 µF to

330

µF

4 Vdc to 50 VDC

±10% standard, ±20% available

–55 ºC to +125 ºC (with proper derating)

–10% @ –55 ºC; +10% @ +85 ºC;

+12% @ +125 ºC

DC Leakage:

At 25 ºC — See Ratings

At 85 ºC — 10 x 25 ºC limit

At 125 ºC — 12 x 25 ºC limit

Dissipation Factor:

0.1 µF to 1.0 µF — 4%

1.5 µF to 68 µF — 6%

100 µF to

330

µF — 8%

Standard Packaging Tape and Reel:

EIA RS-481-1

Capacitance Range:

Voltage Range:

Tolerance:

Operating Temperature:

Cap Change From Initial Limit:

Low DF and DC Leakage

Temperature Stable

260 ºC for 10 Seconds Soldering

Meets IECQ Standard

QC300801/US0001

Meets EIA Standard 535BAAC

Highlights

Case

Code

Complies with the EU Directive

2002/95/EC requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB)

and PolyBrominated Diphenyl

Ethers (PBDE).

EIA

IECQ

3216L

3528L

3216

3528

6032

7343

7343H

Qty per

7" Reel

2,500

2,000

500

13” Reels Available on Special Order
