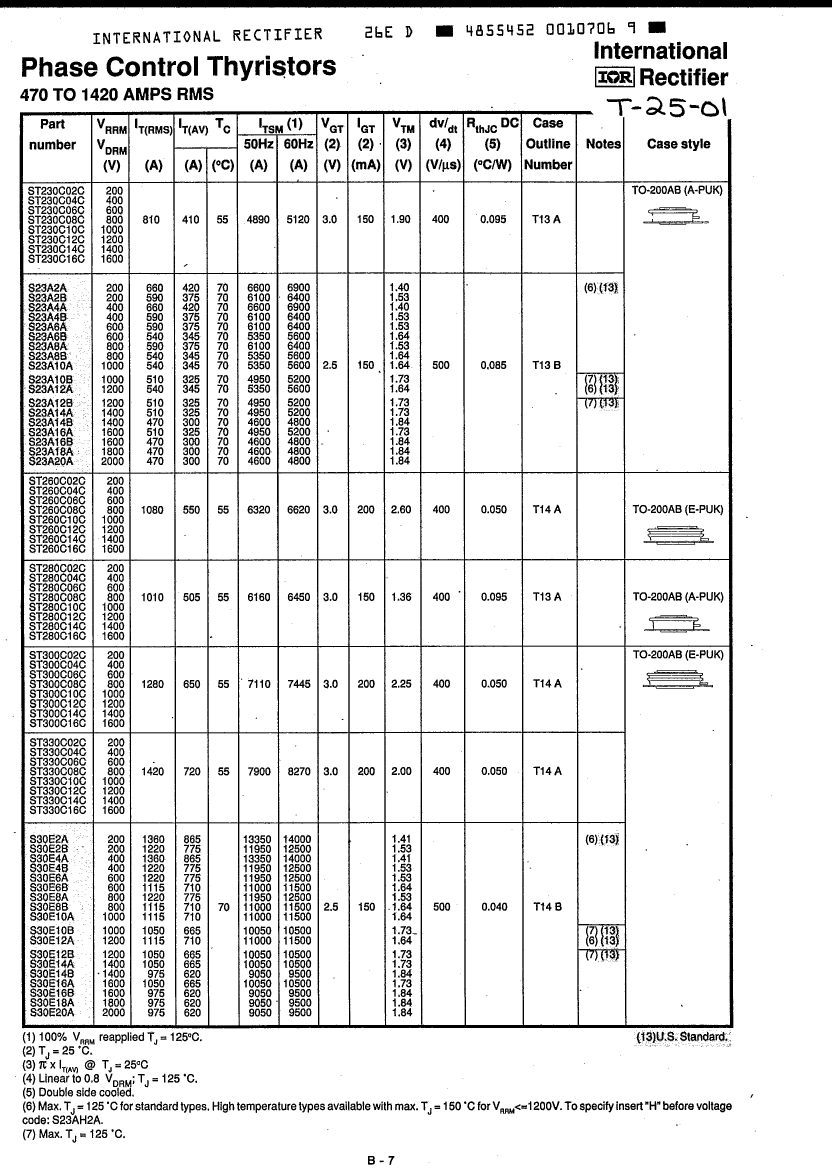

ST330C10C datasheet, PDF - EEWORLD Datasheet

ST330C10C: DescriptionSilicon Controlled Rectifier, 1420A I(T)RMS, 720000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element, TO-200AB; CategoryAnalog mixed-signal IC Trigger device; File Size73KB，1 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

ST330C10C Overview

Silicon Controlled Rectifier, 1420A I(T)RMS, 720000mA I(T), 1000V V(DRM), 1000V V(RRM), 1 Element, TO-200AB

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	600 mA
JEDEC-95 code	TO-200AB
JESD-30 code	O-CEDB-N2
Maximum leakage current	50 mA
Humidity sensitivity level	1
On-state non-repetitive peak current	10000 A
Number of components	1
Number of terminals	2
Maximum on-state current	720000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum rms on-state current	1420 A
Off-state repetitive peak voltage	1000 V
Repeated peak reverse voltage	1000 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1
