RC1A-110DS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RC1A-110DS

Preview

RC1A-110DS: DescriptionPower/Signal Relay, SPST, Momentary, 0.005A (Coil), 110VDC (Coil), 530mW (Coil), 12A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size95KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

RC1A-110DS Overview

Power/Signal Relay, SPST, Momentary, 0.005A (Coil), 110VDC (Coil), 530mW (Coil), 12A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

RC1A-110DS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12.6 mm
body height	25.6 mm
Body length or diameter	29.4 mm
Maximum coil current (DC)	0.005 A
Coil operating voltage (DC)	75 V
Coil power	530 mW
Coil release voltage (DC)	10 V
Coil resistance	18860 Ω
Maximum coil voltage (DC)	110 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	12A@250VAC
Maximum contact current (AC)	12 A
Maximum contact current (DC)	12 A
Contact (DC) maximum rated R load	12A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	RC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
physical size	29.4mm x 12.6mm x 25.6mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	10 ms
seal	SEALED TYPE
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

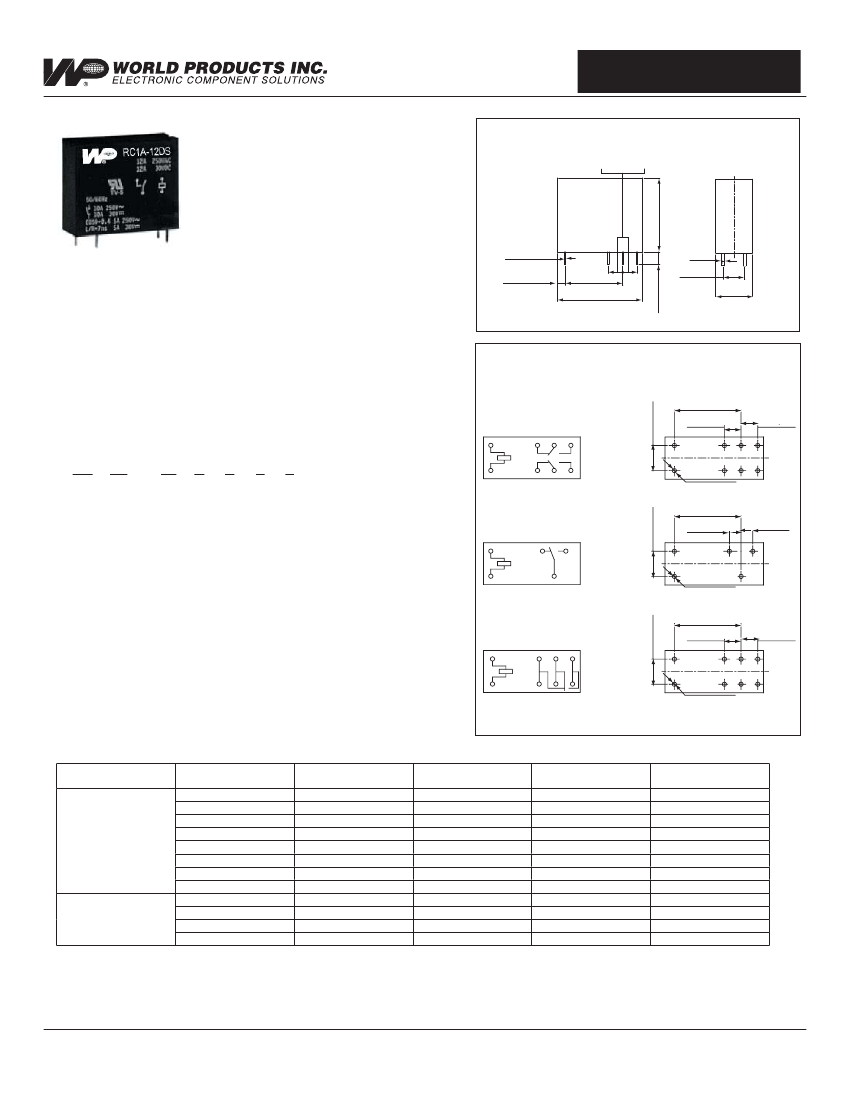

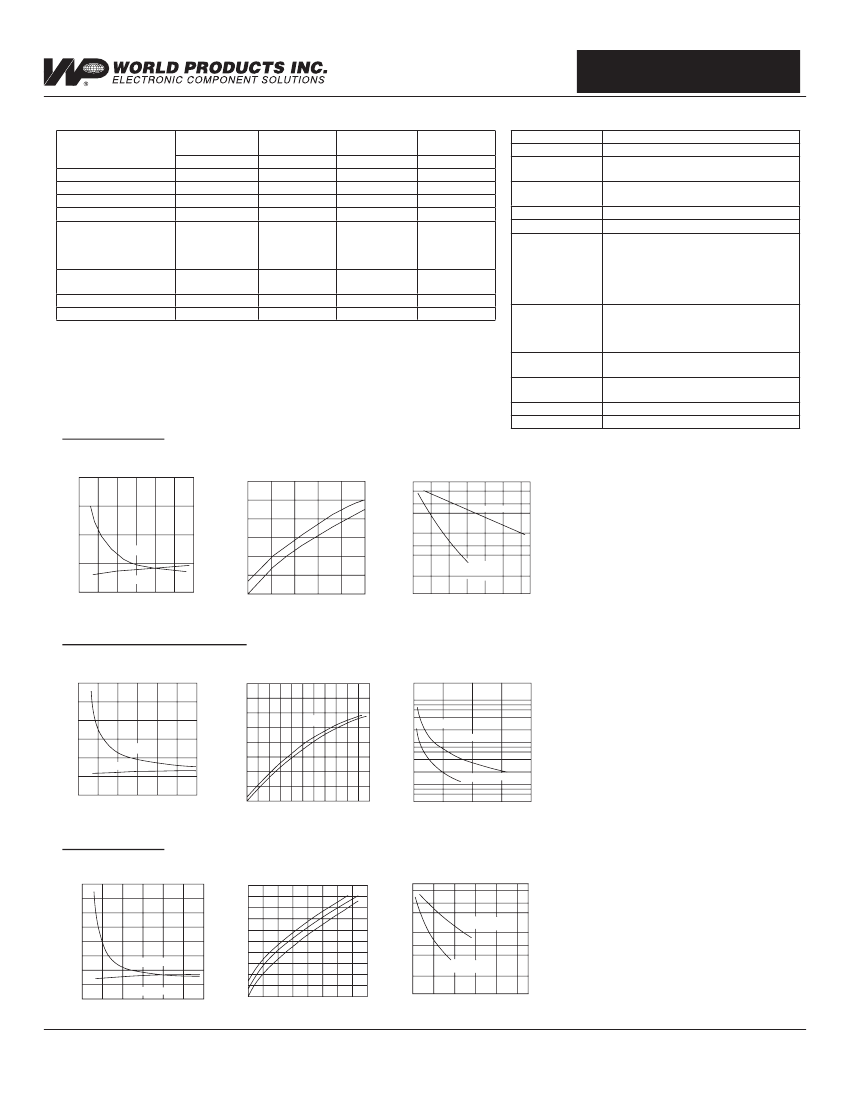

RC SERIES

INDUSTRIAL RELAYS

The RC Series has high sensitivity 540mW.

This WPI industrial relay also has an insulation

distance of 8mm and a dielectric strength of

5000VAC.

UL File #E223388

0.4(.016)

1(.039)

DIMENSIONS

1C

3.5(.138)

2C, 1C-T

5.0(.197)

25.6(1.008)

FEATURES

1.

2.

3.

4.

5.

6.

7.

8.

9.

Standard type & High sensitivity type available.

UL Class F (155°C) coil insulation type available.

TV Rated (TV-3, TV-5 or TV-8) available.

Heavy current up to 20Amps.

Insulation distance: 8mm.

Dielectric strength: 5,000 VAC.

High sensitivity in small package.

Nominal power 540mW~720mW.

Operating power 300mW~410mW.

2.8(.11)

20(.787)

29.4(1.157)

4.3(.169)

7.5(.295)

12.6(.496)

Unit: mm(inch)

Tolerance: ±0.2(.008)

SCHEMATICS

(bottom view)

PCB BOARD LAYOUT

(bottom view)

20(.787)

5(.197)

ORDERING INFORMATION

RC

(1)

2C

1A -

(2)

12 D

S

T F

(3) (4) (5) (6) (7)

(4)

Coil Type

D

= DC

A

= AC

Enclosure

Nil

= Unsealed

S

= Sealed

7.5(.295)

8 -

∅1.3

(.051)

20(.787)

3.5(.138)

Basic Designation

RC

= RC Series

Contact Arrangement

1A

= 1 Form A (SPST-NO)

1B

= 1 Form B (SPST-NC)

1C

= 1 Form C (SPDT)

2A

= 2 Form A (DPST-NO)

2B

= 2 Form B (DPST-NC)

2C

= 2 Form C (DPDT)

Coil Voltage

DC

= 3~110V

AC

= 6~220V

1C

(2)

(5)

5 -

∅1.3

(.051)

20(.787)

5(.197)

(6)

Capacity

Nil

= Standard

T

= High Current

Insulation

Nil

= Class B

F

= Class F

1C-T

(3)

(7)

8 -

∅1.3

(.051)

Unit: mm(inch)

COIL RATINGS (AT 20°C)

Coil Type

Coil Nominal Voltage

(V)

3

5

6

9

12

24

48

100/110

6

12

24

110/210

Coil Resistance

(Ω

± 10%)

17

47

68

155

270

1100

4400

18860

16.5

63

250

5600

Pick-Up Voltage

(V)

≤

2.25

3.75

4.5

6.75

9

18

36

75

4.8

9.6

19.2

88

Drop-Out Voltage

(V)

≥

0.3

0.5

0.6

0.9

1.2

2.4

4.8

10

1.8

3.6

7.2

33

Nominal Current

(mA)

176.5

106.4

88

58

44.4

21.8

10.9

5.3

-

DC

AC

* Max continuous Voltage at 20°C: 130% of Coil Nominal Voltage.

Phone (707) 996-5201 | Fax (707) 996-3380 |

www.worldproducts.com

Industrial Relay Catalog |

7

Recommended Resources

Video driver schematic

Application of SG in hard disk drive

CNC display stabilized power supply circuit diagram a

Positive and negative 30V-1A precision CNC DC regulated power supply

Three-phase motor energy consumption braking circuit (2)
