LT21-SD1V3BE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LT21-SD1V3BE2

LT21-SD1V3BE2: DescriptionToggle Switch, DPST, On-on, Vertical, 5 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size849KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

LT21-SD1V3BE2 Overview

Toggle Switch, DPST, On-on, Vertical, 5 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight

LT21-SD1V3BE2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator angle
Actuator color	BLACK
Executor completed	CHROME
Actuator length	0.421 inch
Actuator type	TOGGLE BAT
Other features	UL/CSA APPROVAL
body width	5.1054 mm
body height	9.2964 mm
Body length or diameter	8.1026 mm
Nozzle length	0.177 inch
Casing type	UNTHREADED
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-ON
Contact resistance	0.02 mΩ
contact time	TWO STEP
Dielectric withstand voltage	1500VRMS V
Electrical life	30000 Cycle(s)
End contact plating	GOLD OVER NICKEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	LT00
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	5
seal	EPOXY
surface mount	NO
Switch action	VERTICAL
switch function	DPST
Switch type	TOGGLE SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.13 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

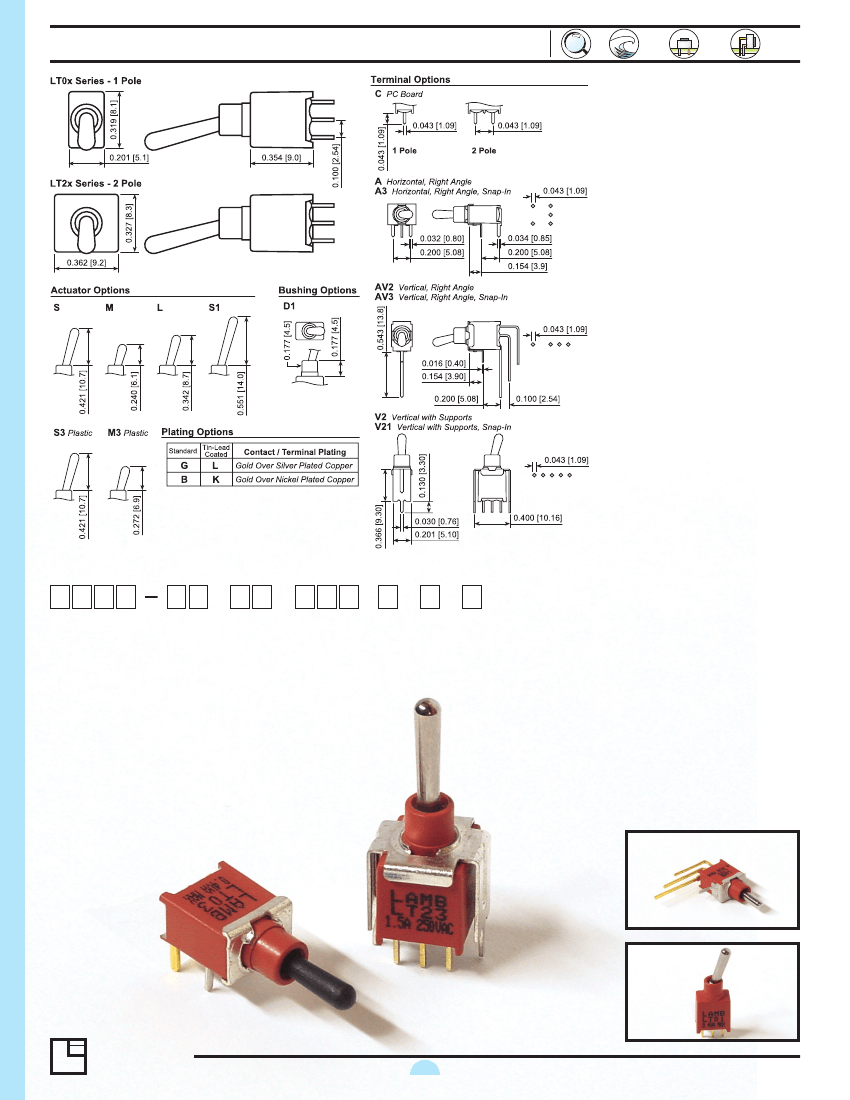

LT00-Series

Tiny

Switch

Water

Protection

Standard

PCB Mount

Right Angle

PCB Mount

The

LT00-Series

toggle switch still in-

cludes internal O-rings and epoxy seals,

but has a smaller package and lower

ratings than the L000-Series. New

electrostatic discharge (ESD) resistant

plastic actuators are available.

SPECIFICATIONS:

ATING

AND

L T

ERMINAL

LATING

125VAC

1.5A 250VAC

3A 28VDC

AND

K T

ERMINAL

LATING

0.4VA Max. at 20V AC or DC Max.

EMPERATURE

-30°C to 85°C

LECTRICAL

IFE

30,000

Cycles

ITHSTAND

OLTAGE

1,500VAC for 1 Minute

NSULATION

ESISTANCE

1,000MΩ

ONTACT

ESISTANCE

20mΩ at 100mA 4VDC

NTRUSION

ROTECTION

IP67 Standard

OGGLE

Series

Actuator

Options

Bushing

Options

Terminal

Options

Plating

Option

Epoxy

Sealing

Actuator

Color

1 Pole:

LT01

- On-On

LT03

- On-Off-On

LT05

- (On)-Off-(On)

LT07

- On-Off-(On)

LT08

- On-(On) End-End

2 Pole:

LT21

- On-On

LT23

- On-Off-On

LT25

- (On)-Off-(On)

LT27

- On-Off-(On)

LT28

- On-(On) End-End

Plastic:

Standard:

PC Board:

AV2

Snap-In:

AV3

V31

Standard:

Tin-Lead:

- Sealed

None

Plastic:

- Black

MATERIALS:

ODY

Glass Filled Polyamide 6/6, UL 94V-0

CTUATOR

Chrome Plated Brass

Carbon Fiber Filled Polyamide 4/6,

UL 94V-2

UPPORT

Tin Plated Brass

ONTACTS

See Options

ERMINALS

See Options

PART NUMBER EXAMPLES:

LT03-M3D1ABE2:

Photo A

1 Pole, On-Off-On, 0.4VA 20V, non-thread-

ed bushing, 6.9mm black plastic bat actua-

tor, gold over nickel plated, epoxy sealed,

horizontal right angle PCB terminals.

LT23-SD1V3GE:

Photo B

2 Poles, On-Off-On, 3A 125VAC, non-

threaded bushing, 10.7mm standard bat

actuator, gold over silver plated, epoxy

sealed, supported PCB terminals.

LT05-MD1AV2BE:

Photo C

1 Pole, (On)-Off-(On), 0.4VA 20V, non-

threaded bushing, 6.1mm standard bat

actuator, gold over nickel plated, epoxy

sealed, vertical right angle PCB terminals.

LT01-LD1CBE:

Photo D

1 Pole, On-On, 3A 125VAC, non-threaded

bushing, 8.7mm standard bat actuator,

gold over nickel plated, epoxy sealed, PCB

terminals.

LAMB

INDUSTRIES

Portland, OR USA
