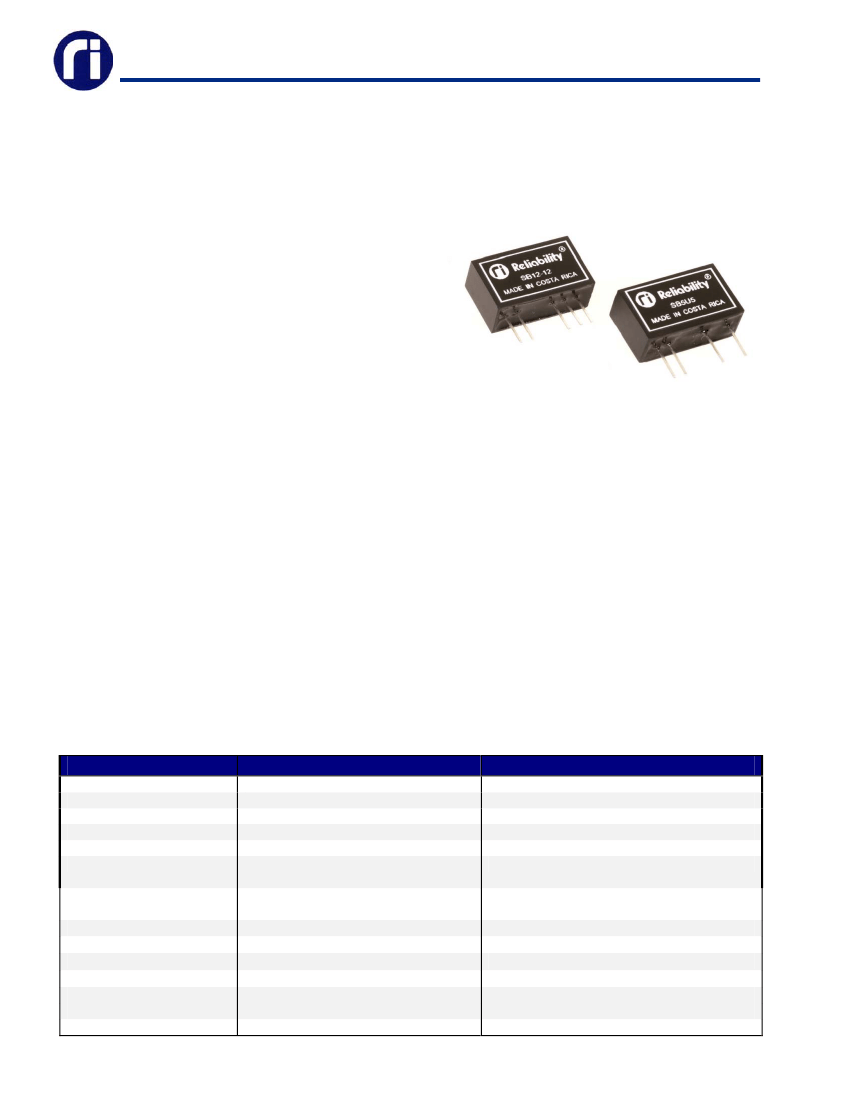

Reliability Incorporated
Product Data Sheet
1 and 2 Watt SB Series
DC/DC Converters
Key Features
•
•
•
•
•
•
Standard SIP Package
High Density / Compact size
Efficiencies up to 80 %
Thru Hole mounting
1000 VDC input/output isolation
No derating to 71°C Operating Temperature
Applications
•
•
•
•
•
Distributed Power Systems
Data-communications Equipment
Telecommunications Equipment
Computer Systems
Industrial Control Systems
The "SB" Series of DC/DC converters feature 1 to 2 Watts of isolated power combining compact size and high
efficiency. The small size of this 7 pin SIP package saves valuable board space in new product design. With
single or dual outputs, the SB series is ideal for a variety of demanding requirements such as those found in
the data-com/telecom, industrial control, computing, transportation, or office automation industries.
The size and pin out conform to internationally recognized packaging that is an industry standard. Operating
from a nominal 5, 12, 24 or 48 VDC input source, this PCB mountable, low profile miniature converter provides
single or dual unregulated, isolated outputs varying from 5 to 15VDC. It is designed to meet or exceed a
variety of safety and emissions requirements including CE (LVD), EN 55022 “Class A”, and UL 1950.
Reliability Incorporated also provides custom designed DC/DC Converters to meet customer specifications.
Reliability Incorporated is based in Houston, Texas, USA and is a leading provider of semiconductor
processing equipment and DC/DC converters. Corporate headquarters, located in Houston, TX, USA. DC/DC
converters are manufactured in Costa Rica.
General Electrical Specifications
(Specifications at Nominal Input and 25 C, nominal input voltage and rated output current unless otherwise noted.)
Parameter
Output Voltage Accuracy
Input / Output Isolation
Minimum Load
Output Ripple & Noise
Load Regulation
Line Regulation
Efficiency
Operating Temperature
Storage Temperature
Temperature Coefficient
Short Circuit Protection
CE
EMC / RFI
Limits
See selection guide column 4.
1000VDC
10% of Full Load
<100 mV Peak to Peak (max)
7% typical (varies by model, consult
factory for details)
1.2% output change per 1% input
voltage change (max.)
75% typical
-25° C to +85° C
-55° C to 125° C
±
0.02%/°C
Intermittent (<2 sec)
LVD
Input Capacitor
Conditions
Nominal Line, Full Load
For 60 seconds, 1500VDC SB24U20 only
20 MHz Bandwidth
10% to 100% of Full Load, Nominal Line
Full Load
Nominal Line
Ambient Temperature
Ambient Temperature
Output VDC
Self Recovering
SB Series.doc 5/21/2004
Reliability Incorporated
Single Output
1
+ input
2
- input
4
- output
6
+ output
Dual Output Models
1
+ input
2
- input-
4
- output
5
com
6
+ output
Alternative Pin Connections & Mechanical Dimensions (dimensions in inches)
.750" MAX
Maximum
Thickness
0.290"
.425" MAX
.020"
1 2
A
.750" MAX
.425" MAX
1 2
5 6 7
.20" MIN.
.08"
.10"
.30" .10" .10"
.06"
5
A
7
.20" MIN.
.010"
SECTION A-A
(SCALE: NONE)
.08"
.10"
.30"
.20"
.06"
Style 3*
2SB5U9
2SB24U9
* Styles 3 and 4 are coated, not potted in shells.
Single Output
1
+ input
2
- input
5
- output
7
+ output
Style 4*
SB12U15-15
Dual Output Models
1
+ input
2
- input
5
- output
6
com
7
+ output
Reliability Incorporated Locations
Headquarters
Reliability Incorporated
P.O. Box 218370
Houston, Texas 77218
USA
Tel: 281 492-0550
Fax 281 492-0615
www.relinc.com
Sales
Reliability Incorporated
Tel: 281 492-0550
Fax 281 492-0615
dcdcinfo@relinc.com
www.dc-dcpower.com
Far East Sales
Reliability Singapore Pte. Ltd.
Blk 103 Boon Keng Rd.
Singapore 339774
Tel: 65 299 4938
Fax: 65 299 4829
Copyright© 2003, Reliability Incorporated. Reliability reserves the right to make changes in the product at any time, without notification
SB Series.doc 5/21/2004
