SAM100S-011-2: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

SAM100S-011-2 Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

SAM100S-011-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, STRADDLE MOUNT, APPLICATIONS:ADD-ON MEMORY; BUS TERMINATION
Board mount options	EDGE MOUNT
body width	0.248 inch
subject depth	0.406 inch
body length	5.46 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	SAM
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.5494 mm
Plating thickness	30u inch
polarization key	DUAL POLARIZED
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

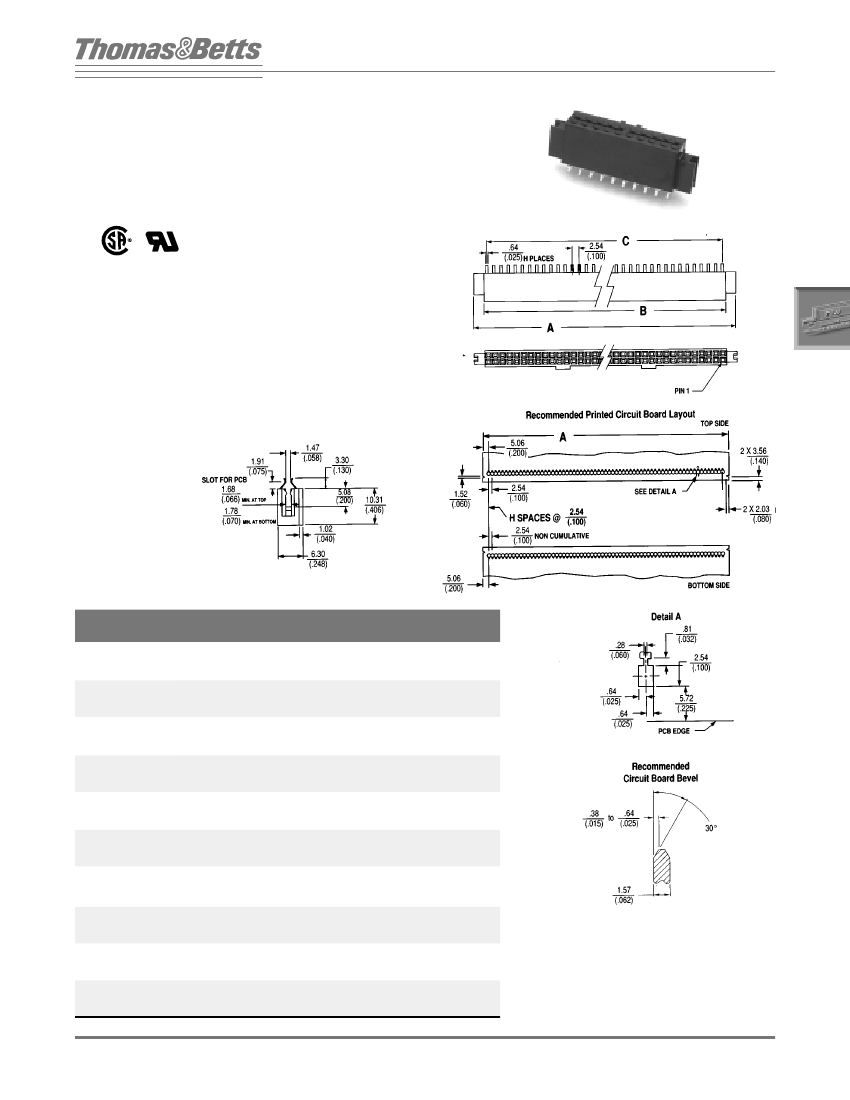

Two–Piece Connectors

SAM System

SURFACE ATTACHED MODULE

STRADDLE MOUNTED SAM

FEMALE CONNECTORS 30-160 POSITIONS

WITH INTEGRAL PCB

RETENTION FEATURE

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic

rated UL 94V-0

C

OLOR

:

Black

C

ONTACTS

:

Copper alloy, nickel plate overall,

30 microinches gold finish in contact zone,

tin/lead on solder tails

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

1 Amp per pin

I

NSULATION

R

ESISTANCE

:

>1 x 10

9

0hms

D

IELECTRIC

S

TRENGTH

:

> 1000 VDC at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55˚C TO 125°C

Ordering Information

NO. OF

POSITIONS

20

30

34

40

44

50

56

60

64

72

80

86

100

110

120

130

140

150

156

160

PART NUMBER

SAM020S-011-2

SAM030S-011-2

SAM034S-011-2

SAM040S-011-2

SAM044S-011-2

SAM050S-011-2

SAM056S-011-2

SAM060S-011-2

SAM064S-011-2

SAM072S-011-2

SAM080S-011-2

SAM086S-011-2

SAM100S-011-2

SAM110S-011-2

SAM120S-011-2

SAM130S-011-2

SAM140S-011-2

SAM150S-011-2

SAM156S-011-2

SAM160S-011-2

A

37.08 (1.460)

49.78 (1.960)

54.86 (2.160)

62.48 (2.460)

67.56 (2.660)

75.18 (2.960)

82.80 (3.260)

87.88 (3.460)

92.96 (3.660)

B

30.48 (1.200)

43.18 (1.700)

48.26 (1.900)

55.88 (2.200)

60.96 (2.400)

68.58 (2.700)

76.20 (3.000)

81.28 (3.200)

86.36 (3.400)

C

22.86 (.900)

35.56 (1.400)

40.64 (1.600)

48.26 (1.900)

53.34 (2.100)

60.96 (2.400)

68.58 (2.700)

73.66 (2.900)

78.74 (3.100)

88.90 (3.500)

H

9

14

16

19

21

24

27

29

31

35

39

42

49

54

59

64

69

74

77

79

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

103.12 (4.060) 96.52 (3.800)

113.28 (4.460) 106.68 (4.200) 99.06 (3.900)

120.90 (4.760) 114.30 (4.500) 106.68 (4.200)

138.68 (5.460) 132.08 (5.200) 124.46 (4.900)

151.38 (5.960) 144.78 (5.700) 140.66 (5.400)

164.08 (6.460) 157.48 (6.200) 149.86 (5.900)

176.78 (6.960) 170.18 (6.700) 162.56 (6.400)

189.48 (7.460) 182.88 (7.200) 175.26 (6.900)

202.18 (7.960) 195.58 (7.700) 187.96 (7.400)

209.80 (8.260) 203.20 (8.000) 195.58 (7.700)

214.88 (8.460) 208.28 (8.200) 200.66 (7.900)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
