SAW Bandpass Filter 203651B
1. Features
IF Bandpass Filter
High Attenuation
Single-Ended Operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.7±0.5
5.5max 6.0max
7.6±0.2
ITF 04A001
203651B
0.45±0.05
20.3±0.5
2.5±0.2
Package : D2012
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
203651B
2004-06-07
NM3017-CS02
1/5
12.7±0.2
2.5±0.2
SAW Bandpass Filter 203651B
3. Specifications
Fo = 192.5 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Minimum
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 11.0 MHz)
Group Delay Variation (Fo +/- 11.0 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
192.3
-
23.0
23.8
-
-
-
-
50
-
Typical
192.5
24.0
23.2
24.0
27.6
0.7
50
1.95
55
-23
Maximum
192.7
25.5
-
-
27.9
1.0
150
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration at room temperature
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
203651B
2004-06-07
NM3017-CS02
2/5
SAW Bandpass Filter 203651B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L4
Output
50
Ω
L2
L3
L1 = L4 = 68 nH,
L2 = 68 nH,
L3 = 82 nH
5. Marking Configuration
ITF
1)
04A001
2)
203651B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
203651B
2004-06-07
NM3017-CS02
3/5

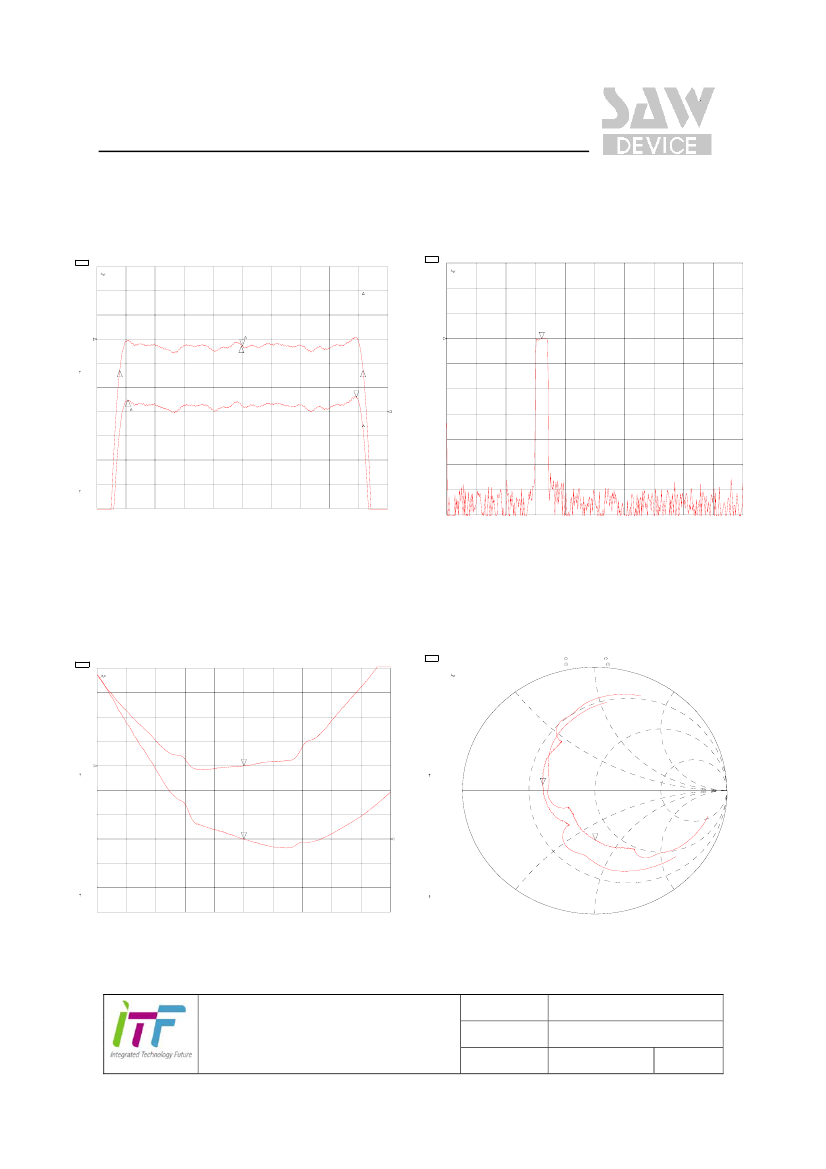

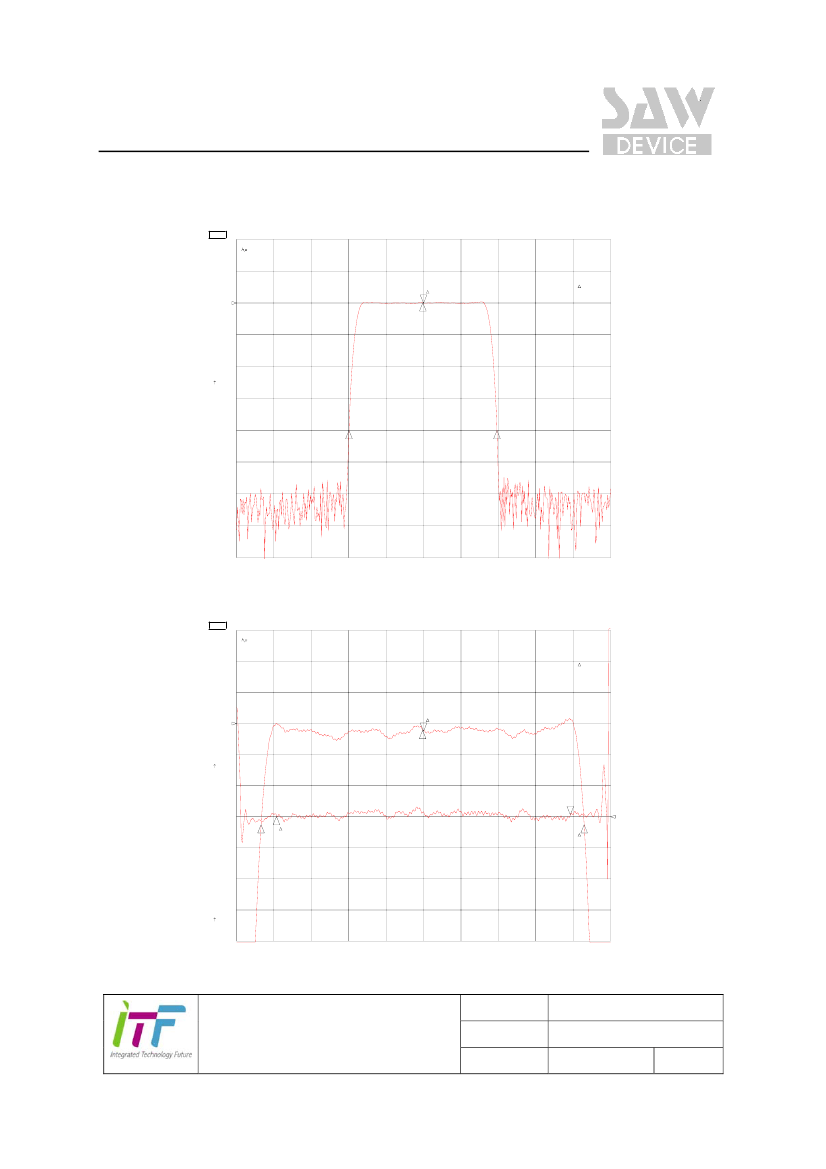

SAW Bandpass Filter 203651B
6. Typical Performance ( at +25℃ )
3 Jun 2004 16:04:19
1: 0. 0000 dB
0. 000 000 MHz
CH1
S21
LOG
10 dB/
REF -23.44 dB
CH1 Markers
1
Cor
2
BW
:
27. 680320
MHz
MHz
REF=1
cent
: 192 . 397216
Q: 6. 9507
1_loss : -23 . 499 dB
3
4
CENTER 192 . 500 000 MHz
SPAN
70. 000 000 MHz
CH1
CH2
S21
S21
LOG
DEL
1 dB/
50 ns/
REF -23.07 dB
REF 1.942 us
3 Jun 2004 16:09:47
1: 0. 0000 dB
0. 000 000 MHz
3: 2. 8649 ns
22. 000 000 MHz
CH1 Markers
BW
:
Cor
24. 181290
MHz
MHz
REF=1
cent
: 192 . 433143
Q: 7. 9579
1
2
1_loss : -23 . 315 dB
3
Smo
Cor
3
2
CH2 Markers
mean : 1. 9449 us
s. dev : 4. 8094 ns
p-p : 23. 978 ns
REF=2
4
CENTER 192 . 500 000 MHz
SPAN
28. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
203651B
2004-06-07
NM3017-CS02
4/5
SAW Bandpass Filter 203651B
CH1
CH2
S21
S21
LOG
LOG
1 dB/
1 dB/
REF -23.12 dB
REF -23.65 dB
3 Jun 2004 16:04:54
1: 0. 0000 dB
0. 000 000 MHz
3: . 10440 dB
22. 000 000 MHz
CH1
S21
LOG
10 dB/
REF -22.88 dB
3 Jun 2004 16:15:19
1: -22 . 984 dB
192 . 500 000 MHz
CH1 Markers
BW
:
Cor
23. 439132
MHz
MHz
REF=1
cent
: 192 . 420257
Q: 8. 2094
1
2
1_loss : -23 . 413 dB
1
3
3
4
2
CH2 Markers
Cor
mean : -23 . 416 dB
s. dev : . 11330 dB
p-p : . 67740 dB
REF=2
CENTER 192 . 500 000 MHz
SPAN
28. 000 000 MHz
START
. 010 000 MHz
STOP 600 . 000 000 MHz
CH1
CH2
S11
S22
SWR
SWR
2 /
2 /
REF 2.316
REF 2.356
3 Jun 2004 16:12:33
1: 2. 3164
192 . 500 000 MHz
2: 2. 3544
192 . 500 000 MHz
CH1
CH2
S11
S22
1 U FS
1 U FS
1: 21. 649
2: 36. 207
2. 4150
-34 . 877
3 Jun 2004 16:12:49
1. 9967 nH
192 . 500 000 MHz
23. 706 pF
192 . 500 000 MHz
Cor
Cor
1
1
Cor
2
Cor
2
CENTER 192 . 500 000 MHz
SPAN
70. 000 000 MHz
CENTER 192 . 500 000 MHz
SPAN
70. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
203651B
2004-06-07
NM3017-CS02
5/5
