SAW Bandpass Filter 252605B
1. Features
IF bandpass filter
High attenuation
Single-ended operation
Dip Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.7±0.5
5.5max 6.0max
7.6±0.2
ITF 08A001
252605B
115-26.0M
0.45±0.05
20.3±0.5
2.5±0.2
Package : D2012
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252605B
2008-10-30
NM8052-CS01
1/5
12.7±0.2
2.5±0.2
SAW Bandpass Filter 252605B
3. Specifications
Fo = 115.0 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Minimum
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 12.75 MHz)
Group Delay Variation (Fo +/- 12.75 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
-
-
25.9
-
-
-
-
-
50
-
Typical
115.0
25.2
26.05
26.35
27.75
0.5
30
1.97
55
-72
Maximum
-
26.5
-
-
27.9
1.0
60
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration at room temperature
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252605B
2008-10-30
NM8052-CS01
2/5
SAW Bandpass Filter 252605B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L2
Output
50
Ω
C1
C2
L1 =L2 = 56nH,
C1 = 13pF, C2 = 15pF
5. Marking Configuration
ITF
1)
08A001
2)
252605B
3)
115
4)
-26.0M
5)
1) Manufacturer name
2) Lot Number
3) Part Number
4) Center Frequecy
5) 1dB-Bandwidth
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252605B
2008-10-30
NM8052-CS01
3/5
SAW Bandpass Filter 252605B

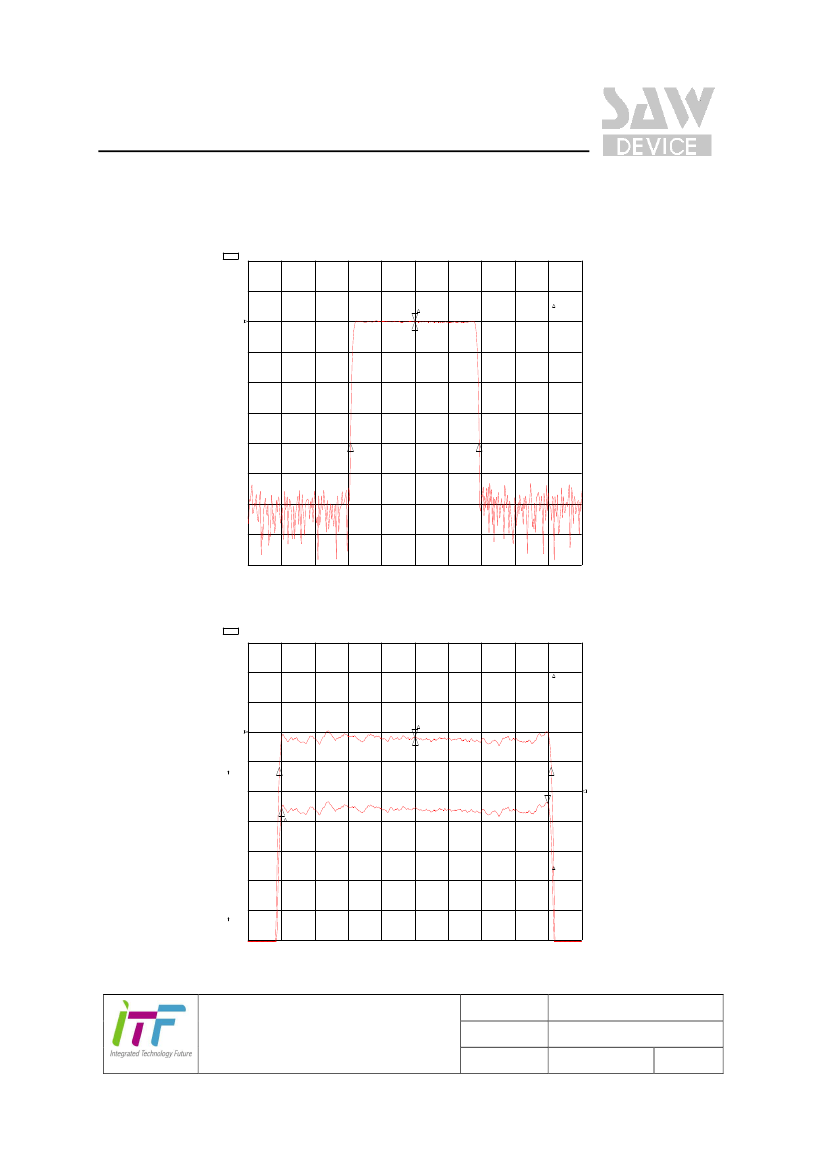

6. Typical Performance ( at +25℃ )
℃
CH1 S21
LOG
10 dB/
REF -25.16 dB
16 Sep 2008 18:57:47
1: 0. 0000 dB
0. 000 000 MHz
*
CH1 Markers
1
Cor
2
BW 27. 750720 MHz
:
cent : 115. 028431 MHz
Q: 4. 1451
1_loss : -25 . 156 dB
REF=1
Hld
3
4
CENTER 115. 000 000 MHz
SPAN 72. 000 000 MHz
CH1 S21
CH2 S21
LOG
LOG
1 dB/
1 dB/
REF -25.04 dB
REF -24.66 dB
16 Sep 2008 18:59:04
1: 0. 0000 dB
0. 000 000 MHz
3: . 15010 dB
25. 500 000 MHz
CH1 Markers
BW 26. 048765 MHz
:
Cor
cent : 115. 055888 MHz
Q: 4. 4169
1
2
1_loss : -25 . 235 dB
REF=1
3
4
3
2
Cor
CH2 Markers
mean:-25 . 280 dB
s. dev : . 08650 dB
p-p : . 49800 dB
REF=2
CENTER 115. 000 000 MHz
SPAN 32. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252605B
2008-10-30
NM8052-CS01
4/5

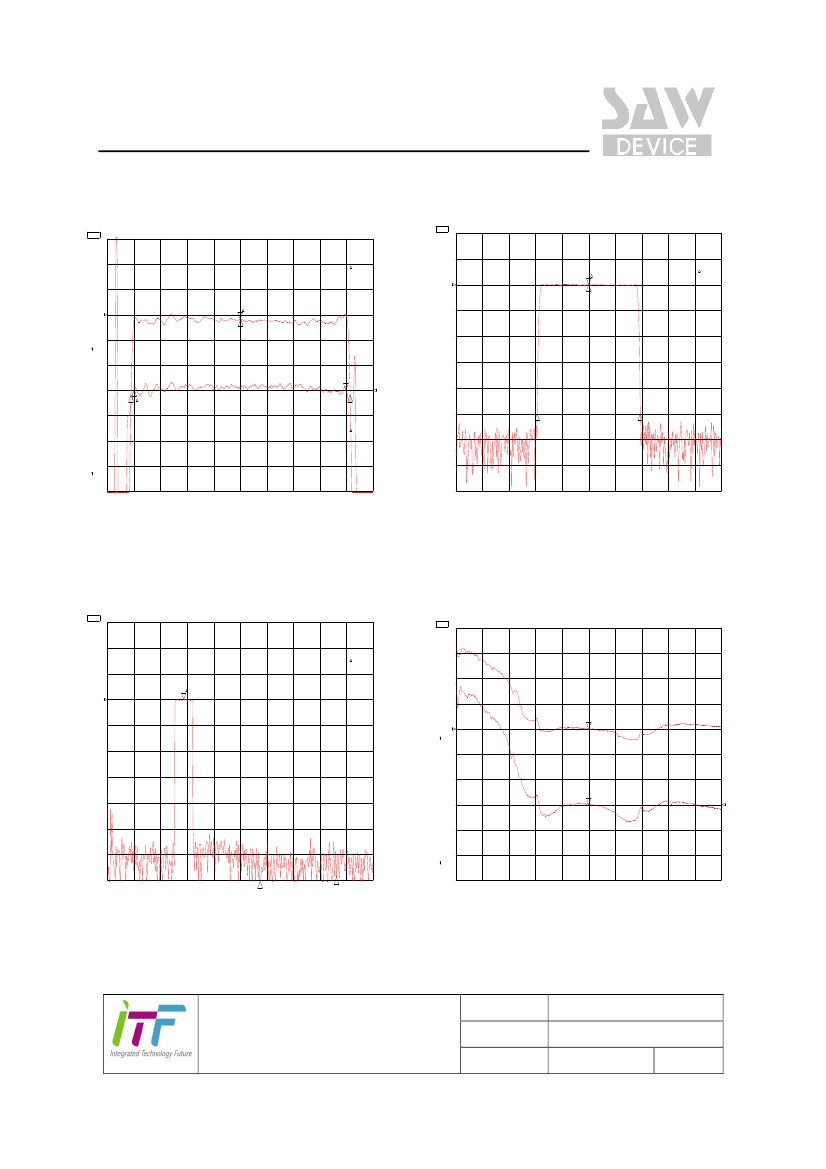

SAW Bandpass Filter 252605B
CH1 S21
CH2 S21
LOG
DEL
1 dB/ REF -25.04 dB
50 ns/ REF 1.97 us
16 Sep 2008 18:59:12
1: 0. 0000 dB
0. 000 000 MHz
3:-1 . 5734 ns
25. 500 000 MHz
CH1 S21
LOG
10 dB/ REF -25.16 dB
16 Sep 2008 18:57:52
1: 0. 0000 dB
0. 000 000 MHz
*
CH1Markers
BW 26. 376147 MHz
:
Cor
cent : 115. 051474 MHz
Q 4. 3620
:
1
2
Hld
1_
loss : -25 . 229 dB
Cor
2
REF=1
1
CH1Markers
BW 27. 915983 MHz
:
cent : 115. 010261 MHz
Q 4. 1199
:
1_
loss : -25 . 156 dB
REF=1
3
Smo
Cor
2
3
CH2Markers
mean: 1. 9743 us
s. dev : 5. 3311 ns
p-p : 29. 659 ns
4
3
REF=2
4
CENTER115. 000 000 MHz
SPAN 32. 000 000 MHz
CENTER115. 000 000 MHz
SPAN 72. 000 000 MHz
CH1 S21
LOG
10 dB/ REF -24.62 dB
16 Sep 2008 19:00:32
1: 0. 0000 dB
0. 000 000 MHz
CH1 S11
CH2 S22
SWR
SWR
5 /
5 /
REF 6.152
REF 7.429
16 Sep 2008 19:00:01
1: 6. 1558
115. 000 000 MHz
2: 7. 4084
115. 000 000 MHz
CH1Markers
2:-71 . 257 dB
115. 000 MHz
1
3:-68 . 763 dB
230. 000 MHz
REF=1
Cor
1
Cor
2
START . 010 000 MHz
2
STOP 400. 000 3
000 MHz
CENTER115. 000 000 MHz
SPAN 72. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252605B
2008-10-30
NM8052-CS01
5/5
