SAW Bandpass Filter 252651B
1. Features
IF bandpass filter
High attenuation
Single-ended operation
SMD Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
2.30±0.1
20.00±0.2
7.62±0.1
10
9
8
7
6
6
7
8
9
10
ITF 06A001
。252651B
1
2
3
4
5
1.02±0.1
9.80±0.2
5
4
3
2
1
1.91±0.1
1.56±0.2
Package : S2098
Pin Configuration
10
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Body : Al
2
O
3
Ceramic
Lid : Kovar, Ni Plated
Terminations : Au plating 0.3 ~ 1.0 um, Over a 1.27 ~ 8.89 um Ni Plating
5
1, 4
Others
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252651B
2006-10-09
NM6033-CS01
1/10
SAW Bandpass Filter 252651B
3. Specifications
Fo =115.0 MHz
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Minimum
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Amplitude Ripple (Fo +/- 12.48 MHz)
Group Delay Variation (Fo +/- 12.48 MHz)
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
MHz
dB
MHz
MHz
MHz
dB
nsec
usec
dB
ppm/°C
-
-
-
26.2
-
-
-
-
50
-
Typical
115.0
21.5
25.85
26.4
28.75
0.6
40
1.52
52
-80
Maximum
-
25
-
-
29
1.0
100
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration at room temperature
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252651B
2006-10-09
NM6033-CS01
2/10
SAW Bandpass Filter 252651B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L4
Output
50
Ω
L2
L3
L1 = 56nH, L2 = 270nH
L3 = 270nH, L4 = 56nH
5. Marking Configuration
ITF
1)
06A001
2)
252651B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252651B
2006-10-09
NM6033-CS01
3/10
SAW Bandpass Filter 252651B

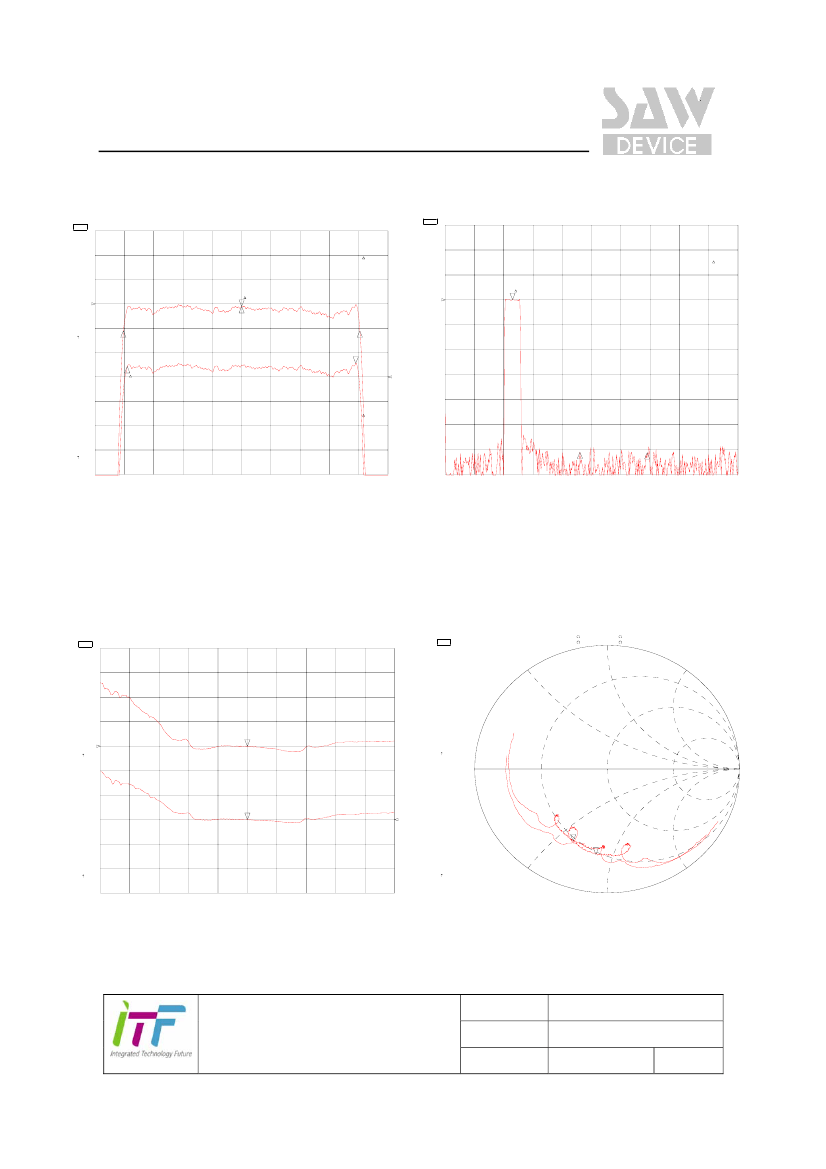

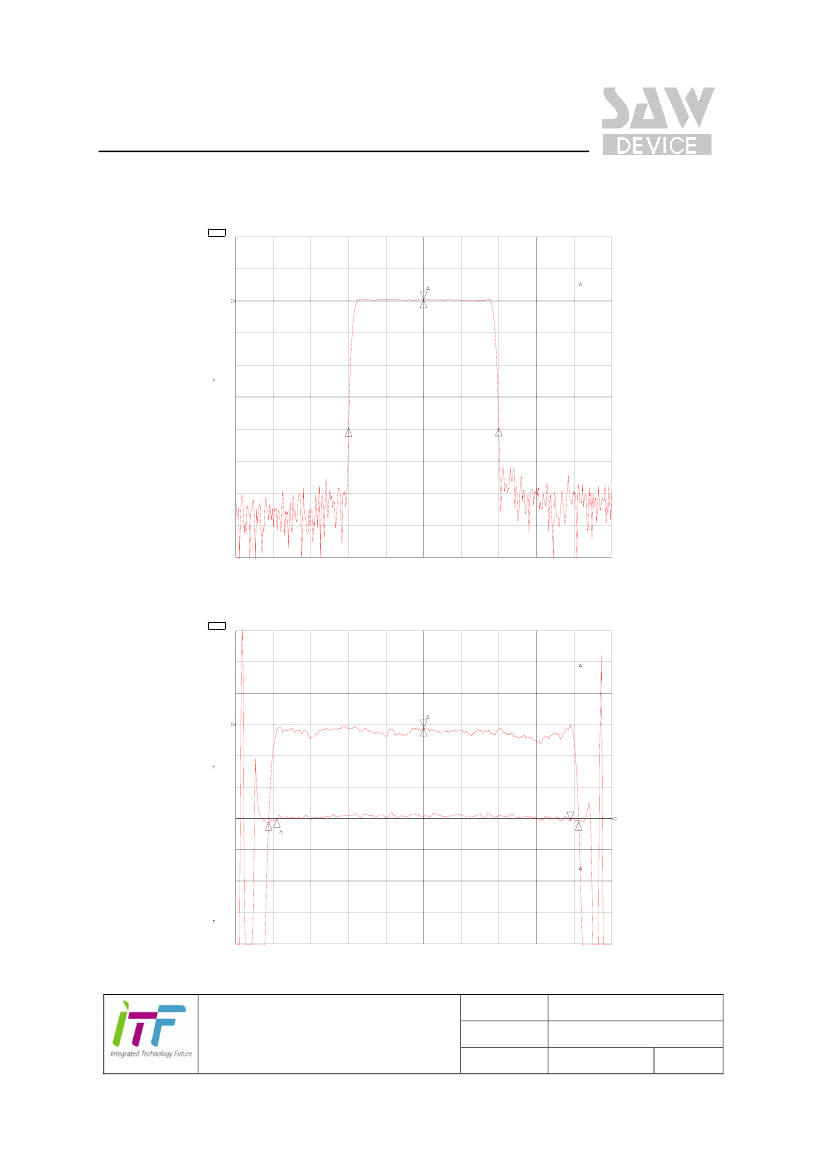

6. Typical Performance ( at +25℃ )
CH1
S21
LOG
10 dB/
REF -21.99 dB
29 Sep 2006 22:34:02
1: 0. 0000 dB
0. 000 000 MHz
PRm
CH1 Markers
1
Cor
2
BW
:
28. 749578
MHz
MHz
REF=1
cent : 114 . 981715
Q: 3. 9994
1_loss : -21 . 529 dB
3
4
CENTER 115 . 000 000 MHz
SPAN
72. 000 000 MHz
CH1
CH2
S21
S21
LOG
DEL
1 dB/
100 ns/
REF -21.42 dB
REF 1.516 us
29 Sep 2006 22:35:01
1: 0. 0000 dB
0. 000 000 MHz
3: -4 . 2317 ns
24. 980 000 MHz
PRm
BW
:
Cor
CH1 Markers
26. 404211
MHz
MHz
REF=1
cent : 114 . 997737
Q: 4. 3553
1
2
1_loss : -21 . 527 dB
PRm
Smo
Cor
3 2
3
4
CH2 Markers
mean : 1. 5232 us
s. dev : 4. 9503 ns
p-p : 28. 229 ns
REF=2
CENTER 115 . 000 000 MHz
SPAN
32. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252651B
2006-10-09
NM6033-CS01
4/10
SAW Bandpass Filter 252651B
CH1
CH2
S21
S21
LOG
LOG
1 dB/
1 dB/
REF -21.42 dB
REF -22 dB
29 Sep 2006 22:34:47
1: 0. 0000 dB
0. 000 000 MHz
3: . 13020 dB
24. 980 000 MHz
CH1
S21
LOG
10 dB/
REF -22.02 dB
29 Sep 2006 22:36:44
1: 0. 0000 dB
0. 000 000 MHz
PRm
BW
:
Cor
CH1 Markers
25. 841385
MHz
MHz
PRm
REF=1
CH1 Markers
2: -61 . 238 dB
115 . 000 MHz
1
3: -61 . 424 dB
230 . 000 MHz
REF=1
cent : 115 . 011580
Q: 4. 4507
1
2
1_loss : -21 . 519 dB
3
3
PRm
2
Cor
CH2 Markers
4
REF=2
mean : -21 . 656 dB
s. dev : . 10950 dB
p-p : . 58140 dB
2
CENTER 115 . 000 000 MHz
SPAN
32. 000 000 MHz
START
. 010 000 MHz
3
STOP 500 . 000 000 MHz
CH1
CH2
S11
S22
SWR
SWR
10 /
10 /
REF 5.549
REF 4.496
29 Sep 2006 22:36:03
1: 5. 5461
115 . 000 000 MHz
2: 4. 5027
115 . 000 000 MHz
CH1
CH2
S11
S22
1 U FS
1 U FS
1: 15. 621
2: 15. 489
-41 . 689
-30 . 322
29 Sep 2006 22:36:10
33. 197 pF
115 . 000 000 MHz
45. 642 pF
115 . 000 000 MHz
PRm
PRm
Cor
Cor
1
PRm
PRm
Cor
2
Cor
2
1
CENTER 115 . 000 000 MHz
SPAN
72. 000 000 MHz
CENTER 115 . 000 000 MHz
SPAN 72. 000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252651B
2006-10-09
NM6033-CS01
5/10
