SAW Bandpass Filter 252401B
1. Features
IF bandpass filter
High attenuation
Single-ended operation
DIP Package
Maximum Storage Temperature Range : -40
℃
~ 85
℃
Electrostatics Sensitive Device (ESD)
2. Package Dimension
12.7±0.5
5.5max 6.0max
7.6±0.2
ITF 04A001
252401B
0.45±0.05
20.3±0.5
2.5±0.2
Package : D2012
Pin Configuration
1
Input
Output
Ground
Case ground
Dimensions shown are nominal in millimeters
Base : Fe(SPCC), Au plating over Ni plated
Cap : Cu & Cr Alloy, Ni Plated
Termination : Kovar, Au Plated
5
2, 4
3, 6
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252401B
2004-03-17
NM4001-CS02
1/5
12.7±0.2
2.5±0.2
SAW Bandpass Filter 252401B
3. Specifications
Terminating source impedance
Terminating load impedance
: 50Ω and matching network
: 50Ω and matching network
Operating Temperature Range : 20℃ ~ 50℃
Center Frequency
Insertion Loss
Amplitude Ripple (181.0 ~ 204.0 MHz)
Group Delay Variation (181.0 ~ 204.0 MHz)
Absolute Delay
Out of Band Rejection
at 0.01 ~ 178.5 MHz
at 206.5 ~ 600.0 MHz
Temperature Coefficient of Frequency
dB
dB
ppm/°C
MHz
dB
dB
nsec
usec
Minimum
192.4
-
-
-
-
Typical
192.5
24.5
0.7
50
1.95
Maximum
192.6
26.0
1.5
100
-
40
40
-
45
45
-27
-
-
-
Notes :
1)
2)
3)
All specifications are based on the matching schematic shown below
All specifications are measured by Agilent Network analyzer and full 2 port calibration
Electrical margin has been built into the design to account for the variations due to temperature drift and
manufacturing tolerances
4)
All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252401B
2004-03-17
NM4001-CS02
2/5
SAW Bandpass Filter 252401B
4. Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
L1
L4
Output
50
Ω
L2
L1 = 68 nH,
L3 = 68 nH,
L2 = 68 nH
L4 = 68 nH
L3
5. Marking Configuration
ITF
1)
04A001
2)
252401B
3)
1) Manufacturer name
2) Lot Number
3) Part Number
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252401B
2004-03-17
NM4001-CS02
3/5
SAW Bandpass Filter 252401B

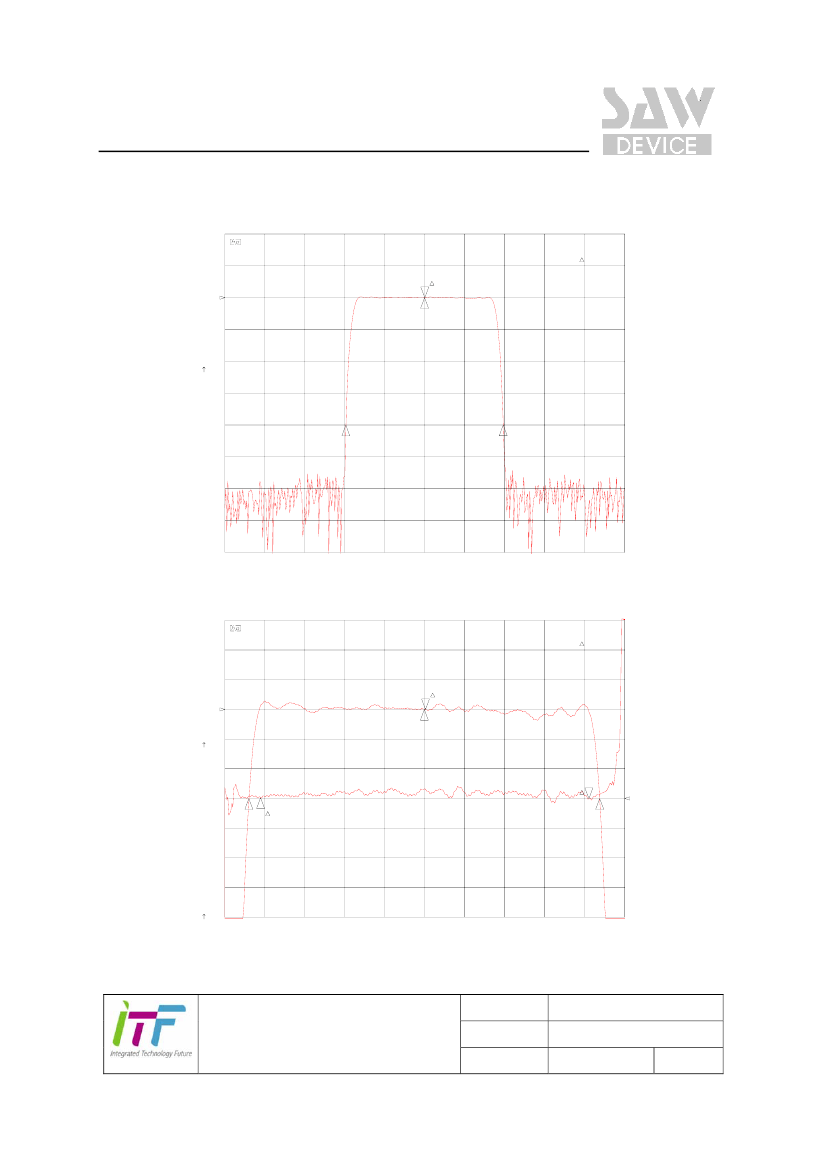

6. Typical Performance ( at +25℃ )
CH1
S 21
log MAG
10 dB/
9 Feb 2004 20:43:54
1_: 0
REF -24.47 dB
0.000 000 MHz
PRm
BW: 27.537 751 MHz
Cor
1
cent: 192.470846 MHz
2
Q: 6.9893
1_ loss: -24.464 dB
REF=1
dB
3
4
CH1 CENTER 192.500 000 MHz
SPAN 70.000 000 MHz
CH1
CH2
PRm
Cor
S 21
S 21
log MAG
delay
1 dB/
50 ns/
9 Feb 2004 20:52:11
REF -24.35 dB
1_: 0
dB
REF 1.941 us
3_ -1.417 ns
0.000 000 MHz
REF=1
BW: 24.557 430 MHz
cent: 192.470537 MHz
1
Q: 7.8376
1_ loss: -24.352 dB
2
2
23.000 000 MHz
3
REF=2
4
PRm
Cor
3 2
mean: 1.949 7 us
s.dev: 4.4771 ns
p-p: 29.428 ns
Smo
1
CENTER 192.500 000 MHz
SPAN 28.000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252401B
2004-03-17
NM4001-CS02
4/5

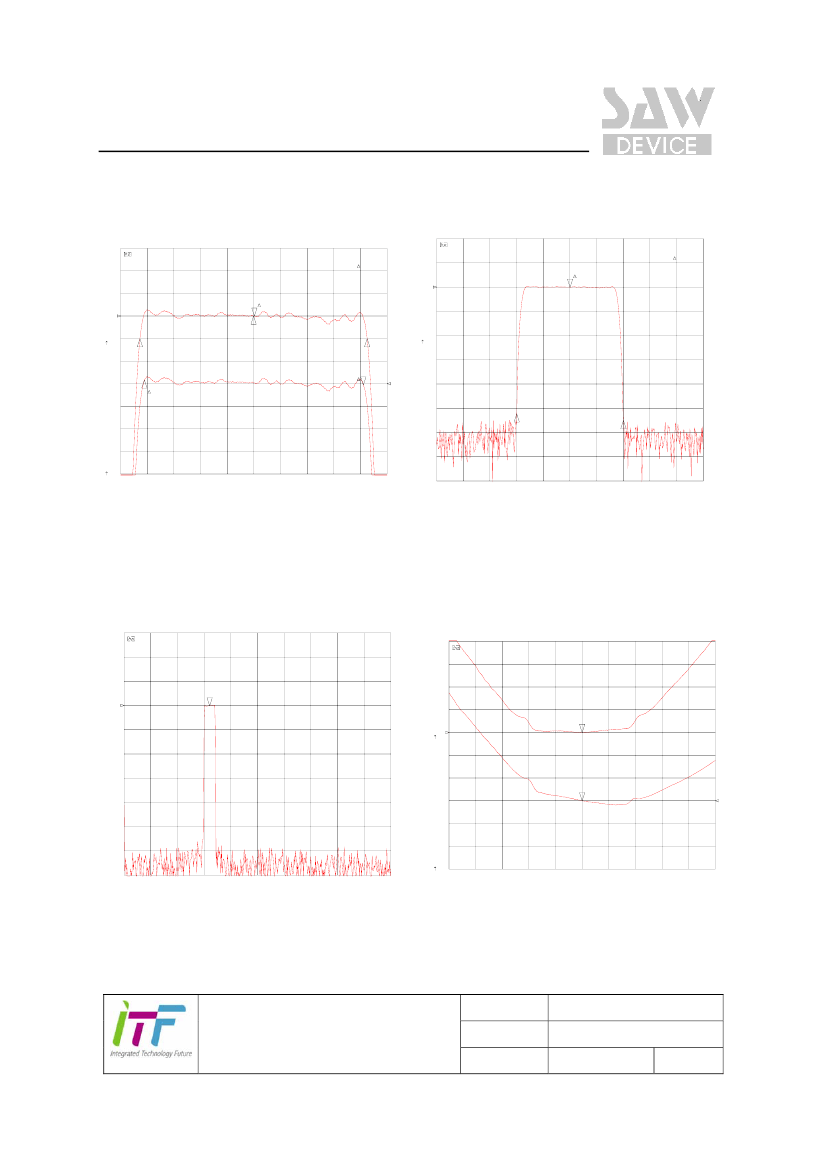

SAW Bandpass Filter 252401B
CH1
CH2
PRm
Cor
S 21
S 21
log MAG
log MAG
1 dB/
1 dB/
9 Feb 2004 20:51:21
1_ 0
dB
REF -24.35 dB
3_:-.2243 dB
REF -24.39 dB
0.000 000 MHz
REF=1
BW: 23.871 113 MHz
cent: 192.466608 MHz
1
Q: 8.0627
1_ loss: -24.353 dB
2
CH1
S 21
log MAG
10 dB/
9 Feb 2004 20:50:09
REF -24.46 dB
1_: 0
0.000 000 MHz
dB
PRm
Cor
1
REF=1
2_:-52.32 dB
-14 MHz
3_:-54.966 dB
14 MHz
3
23.000 000 MHz
4
3
REF=2
PRm
Cor
2
mean:-24.343 dB
s.dev: .1174 dB
p-p: .6540 dB
2
3
1
CENTER 192.500 000 MHz
SPAN 28.000 000 MHz
2
CH1 CENTER 192.500 000 MHz
SPAN 70.000 000 MHz
CH1
S 21
log MAG
10 dB/
9 Feb 2004 20:55:18
1_:-24.816 dB
REF -24.76 dB
192.500 000 MHz
CH1
CH2
PRm
Cor
1
S 11
S 22
SWR
SWR
2 /
2 /
REF 2.139
REF 2.296
9 Feb 2004 20:54:25
1_: 2.1389
2_ 2.2937
192.500 000 MHz
PRm
1
1
192.500 000 MHz
2
PRm
Cor
2
START
.010 000 MHz
STOP 600.000 000 MHz
CENTER 192.500 000 MHz
SPAN 70.000 000 MHz
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
252401B
2004-03-17
NM4001-CS02
5/5
